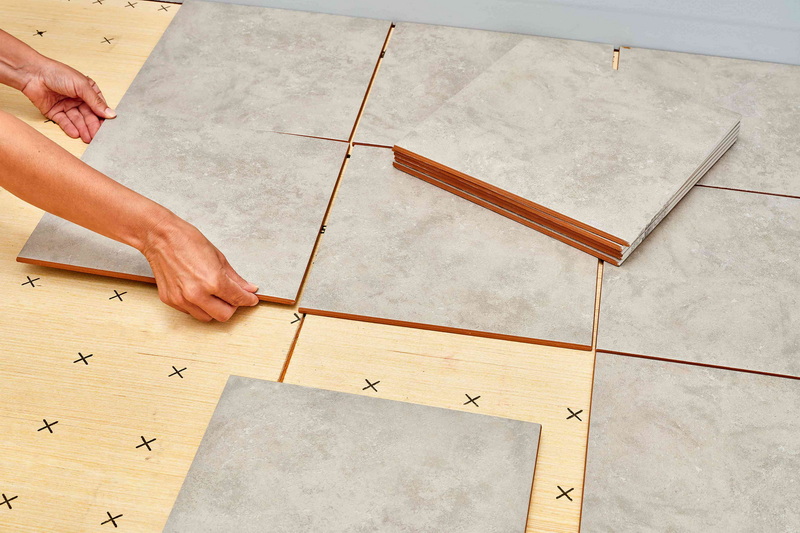

● Can You Install Porcelain Slabs Without a Substrate Layer?
● Scenarios Where Substrate May Be Minimized
>> Outdoor Dry-Lay Installations
>> Thick Porcelain Slabs (12mm+)
● Risks of Installing Porcelain Slabs Without a Substrate
● Substrate Requirements by Application
● Step-by-Step: Standard Porcelain Slab Installation
>> Mortar or Adhesive Application
>> How to Install Large-Size Porcelain Slabs
>> Does Porcelain Pavement Need a Concrete Base?
● Special Considerations for Porcelain Slab Without Substrate
>> When Is It Not Recommended?
● Common Problems with Skipping the Substrate
● Maintenance Tips for Porcelain Slab Installations
● Advanced Installation Techniques and Innovations
>>> Benefits
>>> Limitations
>> Porcelain Slab Over Existing Surfaces
>>> Key Steps
>> Innovations in Adhesives and Grouts
● Environmental Considerations
>> Sustainability of Porcelain Slabs
>> Reducing Environmental Impact During Installation
● Cost Analysis: With vs. Without Substrate
● Design Flexibility and Aesthetic Options
>> Customization Possibilities
>> Addressing Cracks and Movement
● FAQ
>> 1. What happens if I install a porcelain slab without a substrate?
>> 2. Are there any situations where a substrate is not needed?
>> 3. Can I install a porcelain slab directly onto plywood or MDF?
>> 4. What thickness of porcelain slab can be installed without a substrate?
>> 5. How do I prepare the ground for outdoor porcelain slabs without a concrete base?
Porcelain slabs have become a top choice for modern construction and renovation projects, prized for their durability, sleek appearance, and versatility. As the demand for efficient installation methods grows, many homeowners and professionals wonder: Can you install porcelain slabs without a substrate layer? This comprehensive guide explores the technical, practical, and aesthetic implications of installing porcelain slabs without a substrate, offering expert insights, step-by-step instructions, and visual demonstrations to help you make informed decisions for your next project.
Porcelain slabs are large-format tiles crafted from refined clay and minerals, fired at extremely high temperatures. Their dense, non-porous structure makes them highly resistant to stains, scratches, and moisture, making them ideal for a variety of applications, including countertops, flooring, wall cladding, and outdoor paving.
- High durability and strength
- Low water absorption
- Wide range of colors and finishes
- Suitable for high-traffic and wet areas
- Easy maintenance
A substrate layer, also known as a sub-base or underlayment, is the foundational layer upon which porcelain slabs are installed. It provides structural support, ensures evenness, and helps prevent movement or cracking of the slabs over time. Common substrate materials include:
- Concrete
- Mortar beds
- Cement backer boards
- Compacted gravel or sand
- Load Distribution: Distributes weight evenly to prevent slab breakage.
- Surface Flatness: Ensures a level surface for proper adhesion.
- Moisture Barrier: Protects against rising damp and water damage.
- Movement Control: Reduces the risk of shifting, cracking, or lifting.
In most cases, installing porcelain slabs without a substrate layer is not recommended. The substrate is critical for the long-term performance and durability of the installation. However, there are specific scenarios and slab types where a substrate may be minimized or, in rare cases, omitted—primarily with very thick slabs or specialized outdoor applications.
Some outdoor porcelain pavers, especially those 20mm thick or more, can be dry-laid directly onto compacted gravel or sand beds. This method is often used for patios, walkways, and rooftop terraces.
- Advantages: Faster installation, easy to replace slabs, improved drainage.
- Risks: Requires meticulous base preparation; poor compaction can lead to movement or unevenness.
Thicker porcelain slabs (12mm or more) may be installed with minimal substrate, especially for countertops or furniture. However, even in these cases, a stable, flat, and supportive surface is essential to prevent flexing and cracking.
For certain commercial or rooftop applications, porcelain slabs can be installed on adjustable pedestals without a continuous substrate. This system allows for drainage and access to services beneath the floor but is not suitable for all environments.
- Cracking and Breakage: Unsupported slabs are prone to cracking under load or impact.
- Movement and Lifting: Without a stable base, slabs can shift, leading to uneven surfaces and trip hazards.
- Water Infiltration: Lack of a substrate can allow water to penetrate, causing erosion or frost damage.
- Reduced Lifespan: Improper installation can significantly shorten the life of your porcelain slab surface.
| Application | Substrate Needed? | Recommended Substrate Type |
|---|---|---|
| Indoor Flooring | Yes | Concrete, mortar bed, backer board |
| Outdoor Paving | Yes/Optional | Compacted gravel, mortar bed |
| Countertops | Yes/Optional | Plywood, MDF, direct (12mm+) |
| Wall Cladding | Yes | Cement board, plaster, drywall |
| Rooftop Pedestals | No (specialized) | Pedestal system |
- Outdoor dry-lay possible with thick pavers and proper base
- Direct installation possible with 12mm+ slabs and strong cabinetry
- Remove debris, dust, and contaminants.
- Ensure the surface is flat and level.
- Repair any cracks or defects.
- For outdoor: Excavate to required depth, add and compact gravel or sand.
- For indoor: Install concrete slab or cement backer board.
- Apply a suitable mortar or adhesive to the substrate.
- For non-porous porcelain, use a primer or slurry on the back of the slab.

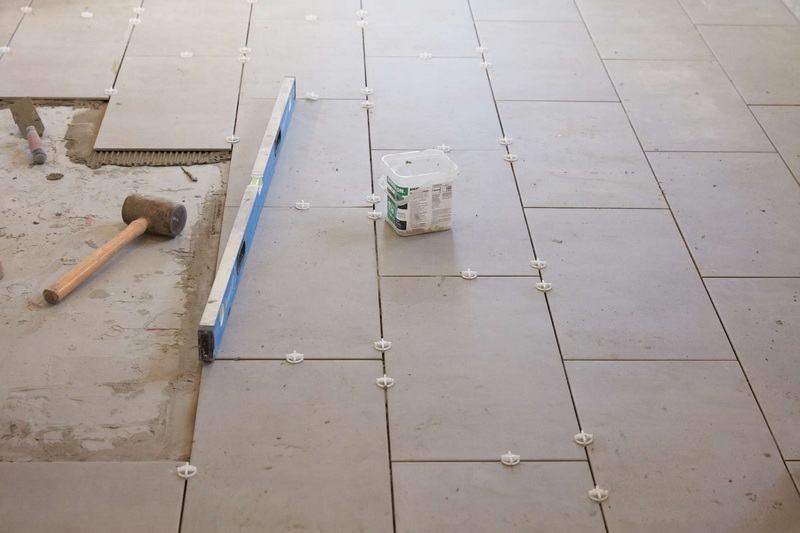

- Place slabs carefully, using spacers for even joints.
- Tap gently with a rubber mallet to ensure full contact.
- Fill joints with appropriate grout.
- Clean excess grout and polish the surface.
Watch this step-by-step video tutorial for a visual guide to installing large porcelain slabs, including substrate preparation, laying, and grouting.
Video: Large-size Slabs Tutorials #2 - Install and grout
This video explains the differences between screed, mortar, and concrete bases for porcelain slab installation, highlighting the importance of proper substrate preparation.
Video: Does Porcelain Pavement Need a Concrete Base?
- Outdoor dry-lay with thick pavers (20mm+)
- Raised pedestal systems for rooftops
- Direct installation on strong, level cabinetry (12mm+ slabs)
- Thin slabs (under 12mm)
- High-traffic or load-bearing areas
- Areas prone to moisture or ground movement
- Uneven or unstable surfaces
- Tile movement and instability
- Cracking due to insufficient support
- Water damage and frost heave outdoors
- Loss of warranty from manufacturers
- Regularly check for movement or cracks
- Clean with neutral pH cleaners
- Re-grout joints as needed
- Ensure proper drainage outdoors

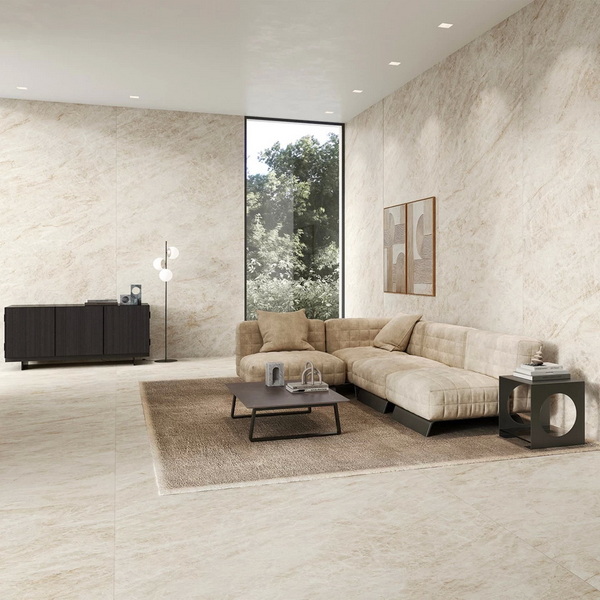

Floating floor systems are gaining popularity for their flexibility and ease of installation. In these systems, porcelain slabs are not permanently fixed to the substrate but are instead laid over a cushioning underlayment or on pedestals. This method is particularly useful for temporary installations or areas where access to the subfloor is required.
- Quick installation and removal
- Minimal damage to existing surfaces
- Improved sound insulation
- Not suitable for heavy loads or high-traffic areas
- Requires precise leveling
In renovation projects, it is sometimes possible to install porcelain slabs directly over existing tiles or concrete, provided the surface is stable, clean, and level. This approach can save time and reduce demolition waste.
- Thoroughly clean and degrease the existing surface
- Use a high-performance adhesive designed for porcelain
- Apply a primer if necessary to enhance adhesion
Modern adhesives and grouts have been developed to improve the performance of porcelain slab installations, even in challenging conditions. Flexible, rapid-setting adhesives can accommodate slight movements and thermal expansion, reducing the risk of cracking. Epoxy and polymer-modified grouts offer superior stain resistance and durability, making them ideal for both indoor and outdoor applications.
Porcelain slabs are an environmentally friendly choice due to their long lifespan, low maintenance requirements, and recyclability. Many manufacturers now offer slabs made with recycled content and employ energy-efficient production processes.
- Minimize waste by careful planning and precise cutting
- Choose low-VOC adhesives and grouts
- Recycle offcuts and packaging materials
- With Substrate: Higher upfront costs due to materials and labor for substrate preparation.
- Without Substrate: Lower initial costs in specific scenarios (e.g., dry-lay outdoor pavers), but may require more frequent maintenance or repairs.
- With Substrate: Greater durability, fewer repairs, and longer lifespan.
- Without Substrate: Potential for increased maintenance and earlier replacement, offsetting initial savings.
Porcelain slabs offer unparalleled design flexibility, with options ranging from natural stone and wood looks to bold contemporary patterns. Large-format slabs create seamless surfaces with minimal grout lines, enhancing the sense of space and luxury in any setting.
- Bookmatching for dramatic visual effects
- Textured finishes for slip resistance
- Cut-to-size options for bespoke projects
For outdoor and wet areas, choose porcelain slabs with textured or anti-slip finishes to reduce the risk of accidents.
Always ensure that the installation method—whether with or without a substrate—meets the structural requirements of the intended use. Consult with engineers or experienced installers for large or load-bearing projects.
If cracks or movement occur, assess the underlying cause—often related to inadequate substrate or base preparation. Small cracks can sometimes be repaired with epoxy fillers, but significant movement may require lifting and relaying the affected slabs.
One advantage of dry-lay and pedestal systems is the ease of replacing individual slabs without disturbing the entire installation. For bonded installations, careful removal and replacement are necessary to avoid damaging adjacent tiles.
While the idea of installing a porcelain slab without substrate may seem appealing for its simplicity and cost savings, it is rarely advisable except in very specific circumstances. The substrate layer is essential for providing the support, stability, and longevity that porcelain slabs require. Skipping this step can lead to costly repairs, safety hazards, and a reduced lifespan for your installation. Always consult with professionals and follow manufacturer guidelines to ensure a successful and durable result.
Installing a porcelain slab without a substrate can lead to cracking, movement, and premature failure of the surface. The substrate provides essential support and stability.
In rare cases, such as with 20mm thick outdoor pavers on compacted gravel or raised pedestal systems, a traditional substrate may be minimized or omitted. However, these methods require precise base preparation and are not suitable for all environments.
For countertops, 12mm or thicker porcelain slabs can sometimes be installed directly onto strong, level cabinetry. However, using a substrate like plywood or MDF is still recommended for added support.
Generally, only slabs 12mm or thicker may be considered for installation with minimal substrate, and only in specific applications. Thinner slabs always require a proper substrate.
For dry-lay installations, excavate the area, add and compact a thick layer of gravel or sand, and ensure proper drainage. Only use this method with thick, outdoor-rated porcelain pavers.
