Large porcelain slab wall installation is a transformative way to achieve seamless, modern, and luxurious surfaces in both residential and commercial spaces. The process requires meticulous preparation, specialized tools, and a clear understanding of each step to ensure a flawless finish. This comprehensive guide will walk you through every aspect of preparing a wall for large porcelain slab installation, from initial assessment to final inspection, with detailed instructions, practical tips, and embedded videos for visual guidance.
Large porcelain slabs, also known as gauged porcelain panels, are oversized tiles typically ranging from 1200x2400 mm to 1600x3200 mm. Their minimal grout lines and expansive surface area make them ideal for creating a sleek, continuous look on walls. These slabs are lightweight yet durable, resistant to stains, scratches, and moisture, making them suitable for bathrooms, kitchens, living rooms, and commercial spaces.
- Polished Porcelain Slabs: Feature a glossy, reflective finish ideal for modern interiors.
- Matte Porcelain Slabs: Offer a subtle, non-reflective surface, perfect for understated elegance.
- Textured Porcelain Slabs: Mimic natural stone or concrete, adding depth and character to any space.
- Seamless Aesthetics: Fewer grout lines create a continuous, high-end look.
- Low Maintenance: Porcelain is non-porous, making it easy to clean and resistant to mold and mildew.
- Durability: Highly resistant to scratches, stains, and heat.
- Versatility: Suitable for both wet and dry areas, including showers, kitchens, and feature walls.
- Value Addition: Enhances the visual appeal and value of any property.
Before starting your porcelain slab wall installation, gather the following tools and materials:
| Tools | Materials |
|---|---|
| Laser level | Large porcelain slabs |
| Tape measure | High-quality thin-set adhesive |
| Notched trowel (1/2" or 3/4") | Grout (sanded or unsanded) |
| Suction cups/slab lifters | Tile spacers/leveling system |
| Mixing paddle | Primer (for wall and slab) |
| Wet saw/diamond blade cutter | Sealer (if required) |
| Rubber mallet | Cleaning sponge |
| Safety gear (gloves, goggles) | Painter's tape/plastic sheeting |
- Ensure the wall is structurally sound, dry, and free from cracks, dust, grease, or loose paint.
- Remove any moldings, trim, or fixtures that may interfere with installation.
- The wall must be perfectly flat. Use a long straightedge or laser level to check for deviations.
- Any unevenness greater than 1/8" over 10 feet must be corrected with patching compound or self-leveling plaster.
- Clean the wall thoroughly to remove dust and debris.
- Apply a suitable primer to enhance adhesion, especially on porous or painted surfaces.
- For drywall, ensure all joints are taped and mudded, and the surface is primed.
- For concrete or masonry, repair any cracks and apply a bonding agent if necessary.
- For painted surfaces, lightly sand to remove gloss and improve adhesive grip.
- Measure the wall dimensions and calculate the number of slabs required.
- Mark the center point of the wall both vertically and horizontally using a laser level.
- Lay out the slabs on the floor to visualize the pattern and ensure optimal placement.
- Plan for minimal cuts and balanced grout lines, especially around doors and windows.
- Use a pencil and straightedge to mark layout lines on the wall, indicating slab positions and grout joints.
- If using slabs with directional veining or patterns, plan the layout to ensure visual continuity across joints.
- Dry-fit slabs to check alignment of patterns before installation.
- Use a high-performance, non-sag thin-set mortar suitable for large-format porcelain slabs.
- For areas exposed to moisture, select a waterproof adhesive.
- Follow manufacturer instructions for mixing adhesive.
- Mix only as much as can be used within 30 minutes to prevent premature setting.
- Maintain a consistent adhesive thickness for even support.
- Avoid over-mixing, which can introduce air bubbles and weaken the bond.
- Always wear safety goggles, gloves, and ear protection when cutting slabs.
- Use a wet saw with a diamond blade for straight cuts.
- For intricate cuts, use a manual tile cutter or angle grinder with a diamond blade.
- Use suction cups or slab lifters to move and position slabs safely.
- Always handle slabs with at least two people to prevent breakage.
- Smooth cut edges with a diamond hand pad or polishing tool to prevent sharpness.
- For exposed edges, consider using a matching trim or bullnose for a finished look.

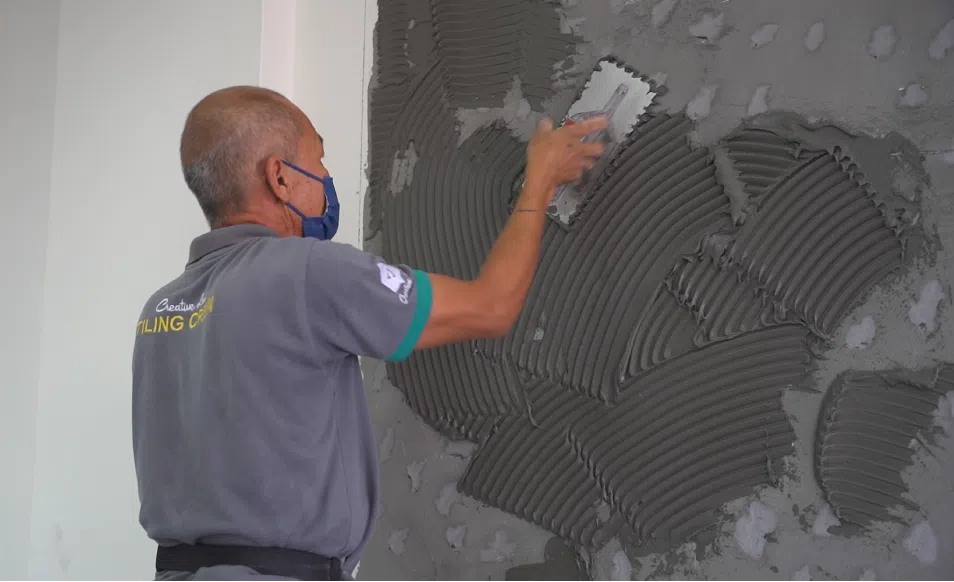

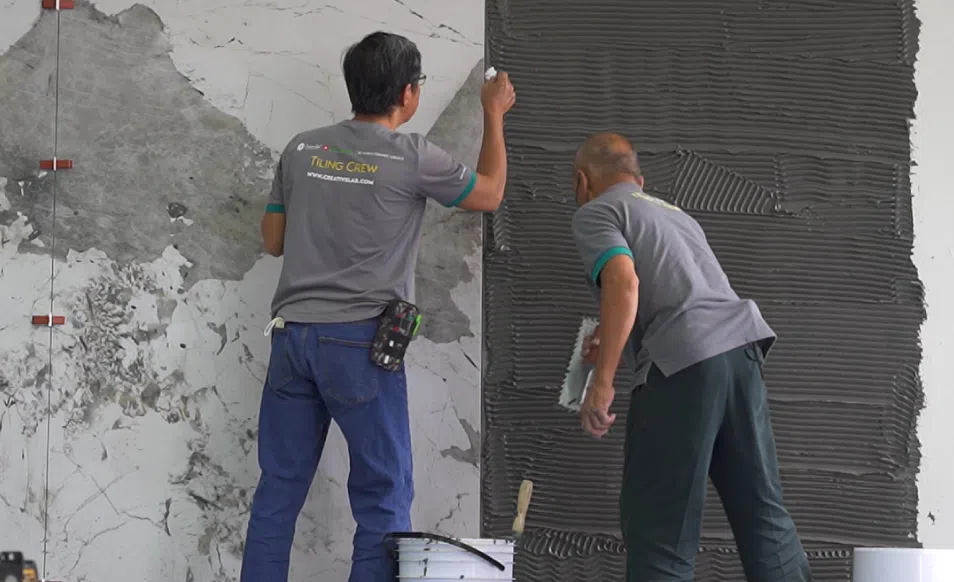

- Use a notched trowel (1/2" or 3/4") to spread adhesive on the wall.
- Apply adhesive in small sections, starting from the center and working outward.
- Hold the trowel at a 45-degree angle to create uniform ridges.
- Ensure at least 90% mortar coverage for proper bonding.
- Do not cover layout lines with adhesive.
- Work in moderate temperatures; extreme heat or cold can affect adhesive performance.
- Avoid installing slabs in direct sunlight, which can cause rapid drying and reduce bond strength.
- Apply a thin layer of adhesive to the back of each slab (back buttering) to ensure full contact and prevent voids.
- Align the direction of adhesive ridges on both the wall and the slab for optimal air release.
- Lift the slab using suction cups and align it with the layout lines.
- Press the slab firmly into the adhesive, using a slight sliding motion to collapse the ridges.
- Use a rubber mallet or beating paddle to tap the slab gently, ensuring full contact and eliminating air pockets.
Video: Installing Large Porcelain Slabs on Walls
- Install slabs from the bottom up, supporting each slab as you go.
- Stagger vertical joints for added strength and visual appeal.
- Insert tile spacers or use a leveling system to maintain consistent grout joints and prevent lippage.
- Continuously check alignment with a laser level.
- Make any necessary adjustments while the adhesive is still workable.
- Remove excess adhesive from joints and slab surfaces immediately.
- Use a straightedge to check for lippage (unevenness between adjacent slabs).
- Adjust as needed before the adhesive sets.
- Allow adhesive to cure for at least 24 hours before grouting.
- Use a rubber float to apply grout, pressing it firmly into the joints.
- Wipe off excess grout with a damp sponge before it hardens.
- If using polished porcelain or in wet areas, apply a suitable sealer to grout lines and slab surfaces as recommended.
Video: Grouting and Finishing Porcelain Slab Walls
Watch: https://www.youtube.com/watch?v=aLuIK2fthyI
- Use a microfiber cloth to remove grout haze from the slab surface.
- Avoid harsh chemicals that could damage the finish.
- Inspect the entire installation for alignment, lippage, and clean joints.
- Remove any remaining adhesive or grout haze with a suitable cleaner.
- Allow the installation to cure fully before exposing it to heavy use or moisture.
- Installing on an uneven or unprepared wall surface.
- Using the wrong adhesive or trowel size.
- Rushing the layout or cutting process.
- Applying grout before the adhesive has fully cured.
- Neglecting to use spacers or a leveling system, resulting in lippage.
- Always buy extra slabs to account for breakage and future repairs.
- Protect floors and adjacent surfaces with plastic sheeting or painter's tape.
- Work in a well-ventilated area and follow all safety guidelines.
- Consult manufacturer instructions for all products used.
- For complex installations, consider hiring a professional installer.
- Clean regularly with a mild detergent and soft cloth.
- Avoid abrasive cleaners or pads that could scratch the surface.
- Reseal grout lines periodically if recommended by the manufacturer.
- Address spills promptly to prevent staining, especially on light-colored slabs.
- Loose Slabs: Check for insufficient adhesive coverage or wall movement; reapply adhesive and reset the slab if necessary.
- Cracked Grout: Ensure joints are not too narrow and that the correct grout type is used.
- Staining: Use a porcelain-safe cleaner and avoid harsh chemicals.
- Lippage: Remove and reset slabs before adhesive cures if unevenness is detected.
Preparing a wall for large porcelain slab installation is a meticulous process that demands attention to detail, the right tools, and a methodical approach. By following the steps outlined in this guide, you can achieve a stunning, durable, and low-maintenance wall surface that elevates the aesthetics and value of any space. Whether you are a DIY enthusiast or a professional, investing time in proper preparation will ensure the success and longevity of your porcelain slab wall installation.
The wall should be flat, clean, dry, and structurally sound. Any unevenness greater than 1/8" over 10 feet must be corrected before installation.
Yes, applying a primer to both the wall and the back of the slab enhances adhesion, especially on porous or painted surfaces.
Use a leveling system and tile spacers to maintain even joints and prevent one slab edge from being higher than the adjacent one.
Due to their size and weight, it is recommended to have at least two people for handling and installation. Professional installation is advised for best results.
Use a high-performance, non-sag thin-set mortar specifically designed for large-format porcelain tiles. For wet areas, ensure the adhesive is waterproof.
