Laying porcelain tile over a concrete slab is a popular choice for both indoor and outdoor flooring projects due to its durability, aesthetic appeal, and low maintenance. However, the success of such a project hinges on thorough preparation of the concrete surface before tile installation. This article provides a comprehensive guide on the essential prep work needed before tiling over concrete, focusing on laying porcelain tile over concrete slab, with detailed steps, tips, and multimedia resources to help you achieve a professional finish. Whether you are a DIY enthusiast or a professional installer, understanding these preparation steps will ensure your tile floor lasts for years to come.
Before you begin laying porcelain tile over a concrete slab, it's crucial to recognize that the condition of the concrete directly affects the longevity and appearance of your tile floor. Concrete is porous, prone to dusting, and can develop cracks or unevenness over time. Without proper prep work, tiles may not adhere well, leading to issues like loose, cracked, or uneven tiles.
Proper preparation ensures a stable, clean, and level surface that promotes strong adhesion and prevents future problems such as tile lifting, cracking, or grout failure. This foundation work is especially important when laying porcelain tile over concrete slab, as porcelain is dense and requires a solid base to prevent stress fractures.
Moisture is one of the most critical factors to consider before laying porcelain tile over a concrete slab. Concrete is naturally porous and can retain moisture from the ground or the environment. Excess moisture can lead to adhesive failure, mold growth, and tile damage. Using a moisture meter or performing a Relative Humidity (RH) test helps determine if the slab is dry enough for tiling. If moisture levels are too high, additional moisture mitigation steps such as vapor barriers or waterproof membranes may be necessary to protect your tile installation.
Moisture testing should be done in multiple locations across the slab to get an accurate reading. If the slab is found to be too damp, solutions include installing a moisture barrier beneath the tile or allowing the slab additional drying time.
Examine the slab for cracks, holes, or surface damage. Small hairline cracks (under 1.5mm) can often be managed with flexible membranes, but wider cracks require repair or special treatment. Cracks may result from settling, shrinkage, or structural movement, and ignoring them can cause tile failure.
A flat surface is essential, especially for large-format porcelain tiles. The slab should have no more than 3-5mm variation over a 2-3 meter span. Use a long level or straightedge to check. Uneven areas should be addressed with a self-leveling compound. Unevenness can cause lippage, where adjacent tiles sit at different heights, creating tripping hazards and aesthetic issues.

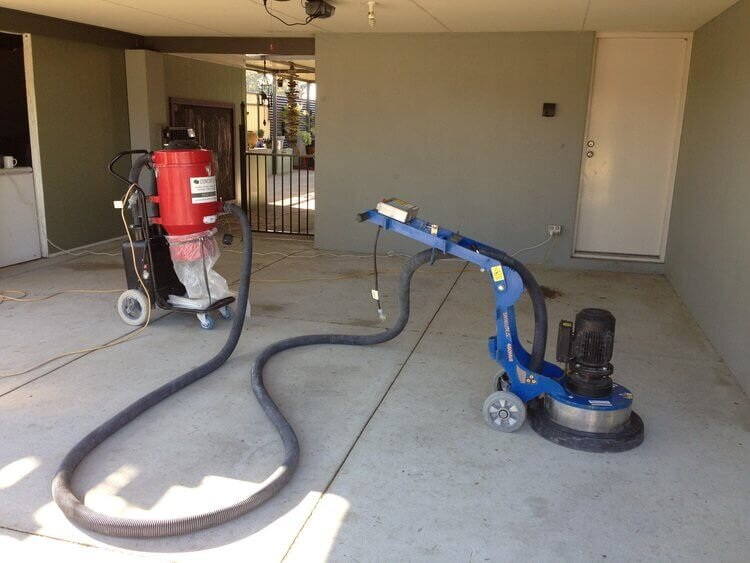

Cleaning the concrete surface thoroughly is essential to remove any contaminants that could interfere with tile adhesion. This includes dust, dirt, grease, oil, and any loose debris. For older concrete slabs, mechanical grinding or scabbling may be required to remove the weak surface layer known as laitance. A clean, solid surface ensures the thinset mortar bonds properly to the concrete, preventing future tile issues.
Grease or oil stains should be treated with degreasers or removed mechanically. Any residue left on the surface can prevent proper bonding of the mortar. After cleaning, allow the slab to dry completely before proceeding.
Apply a crack isolation membrane or decoupling mat to prevent tile cracking from slab movement. These membranes absorb stress and allow some flexibility, protecting the tile from minor slab shifts.
Fill cracks with a suitable concrete patching compound. If cracks are structural or extensive, consult a structural engineer before proceeding. Proper repair includes cleaning out the crack, applying bonding agents, and filling with patch material that cures to a solid, stable surface.
Uneven concrete slabs can cause significant problems during tile installation, including lippage and cracked tiles. Using a self-leveling compound is an effective way to create a flat, smooth surface. It is important to follow the manufacturer's instructions carefully and allow the compound to cure fully before proceeding. In some cases, multiple applications may be necessary to achieve the desired flatness.
Self-leveling compounds flow easily and fill low spots, creating a uniform surface ideal for laying porcelain tile over concrete slab. Proper surface preparation before applying the leveling compound is critical to ensure adhesion and prevent delamination.
Priming is a critical step before laying porcelain tile over concrete slab:
- Concrete is porous and dusty; primer seals the surface and improves adhesion.
- Use a primer specifically designed for concrete and tile adhesive compatibility.
- Apply evenly with a roller or brush, ensuring full coverage.
- Allow the primer to dry completely as per product instructions.
Priming helps prevent the thinset mortar from drying out too quickly by sealing the porous concrete, which can otherwise absorb moisture from the mortar, weakening the bond.
Proper layout planning saves time and materials:
- Measure the room and mark the center point.
- Use chalk lines to divide the floor into quadrants.
- Dry-lay tiles along these lines to visualize the pattern and determine cut locations.
- This step ensures a balanced and aesthetically pleasing installation.
Planning the layout helps minimize awkward cuts and ensures that tile patterns are symmetrical and visually appealing. It also helps avoid placing small tile slivers at doorways or corners.
To lay porcelain tile over a concrete slab, gather the following:
- Porcelain tiles rated for your application (indoor/outdoor).
- Polymer-modified thin-set mortar for superior adhesion.
- Grout suitable for porcelain tiles.
- Tile spacers, notched trowel, tile cutter or wet saw.
- Level, measuring tape, chalk line.
- Rubber mallet, grout float, sponge, bucket.
- Safety gear: gloves, goggles, knee pads.
Using the correct materials ensures compatibility and durability. Polymer-modified thinset mortar is especially important for porcelain tiles due to their low porosity and density.
For slabs with cracks or moisture concerns:
- Apply a crack-isolation membrane to absorb slab movement.
- For moisture-prone slabs, consider a waterproofing membrane to prevent moisture migration through the tile joints.
- Membranes are bonded with latex-modified thinset mortar and require careful installation to avoid air pockets.
These membranes act as a buffer between the concrete slab and tile, preventing cracks from telegraphing through to the tile surface and protecting against moisture damage.
- Mix thinset mortar according to manufacturer instructions.
- Apply a thin layer to a small section of the slab using a notched trowel.
- For better adhesion, back butter the tiles by applying thinset to their backs before placing.
- Lay tiles starting from the center intersection, pressing firmly into the mortar.
- Use tile spacers to maintain uniform grout lines.
Back buttering ensures full coverage of mortar on the tile's back, improving the bond and reducing voids that can cause tile breakage.
- Measure spaces where full tiles won't fit.
- Mark cutting lines on tiles.
- Use a tile cutter for straight cuts or a wet saw for complex cuts.
- Always wear safety goggles and gloves when cutting.
Accurate cuts ensure a neat finish around walls, corners, and fixtures. Wet saws reduce dust and provide cleaner cuts, especially for porcelain.
- Allow thinset to cure fully (typically 24-48 hours).
- Mix grout as per instructions.
- Apply grout diagonally across joints with a rubber float.
- Remove excess grout and clean tile surfaces with a damp sponge.
- Allow grout to cure and then apply sealant if recommended.
Sealing grout helps prevent staining and moisture penetration, extending the life and appearance of your tiled floor.
- Uneven Tiles: Usually due to poor surface prep or insufficient thinset.
- Cracked Tiles: Caused by slab movement or improper installation.
- Loose Tiles: Result from inadequate thinset coverage.
Address these by removing affected tiles and correcting the underlying problem, whether it be slab repair, better mortar application, or improved surface prep.
This detailed video walks through the entire process of laying porcelain tile over a concrete floor, from preparation to grouting, with expert tips for a flawless finish.
Learn step-by-step how to plan, mix adhesive, install, level, and grout outdoor porcelain tiles on a concrete patio.
This video explains applying anti-fracture and vapor barriers on concrete before tiling, crucial for preventing tile damage from slab movement and moisture.
In conclusion, laying porcelain tile over a concrete slab requires careful and thorough preparation to ensure a durable and attractive finish. From assessing moisture levels and repairing cracks to cleaning, leveling, and priming the surface, each step plays a vital role in the success of your tile installation. By following the detailed steps outlined in this article and using the right materials and techniques, you can achieve a professional-quality tile floor that will stand the test of time. Remember, investing time in proper prep work saves you from costly repairs and replacements in the future.
No, you should wait until the concrete slab is fully cured, typically at least 28 days, to avoid shrinkage and cracking issues under the tile. Installing too soon can lead to tile failure due to slab movement.
Yes, priming the concrete slab is highly recommended. Primer seals the porous surface, reduces dust, and enhances the bond between the slab and the tile adhesive.
Use a polymer-modified thin-set mortar specifically designed for porcelain tiles. This type of mortar provides superior adhesion and flexibility, essential for a long-lasting installation.
Use a self-leveling compound to smooth out uneven surfaces. This creates a flat base essential for proper tile adhesion and prevents lippage (uneven tile edges).
Yes, porcelain tiles are suitable for heated slabs, but ensure the slab is fully cured and use flexible adhesives and grout designed for heated floors to accommodate thermal expansion.
