Installing a porcelain slab on counter surfaces has become increasingly popular due to porcelain's durability, aesthetic appeal, and resistance to stains and heat. However, installing a porcelain countertop slab requires specialized tools and techniques to handle the material's brittleness and size. This comprehensive guide will walk you through the essential tools needed for a successful installation, step-by-step procedures, and expert tips to ensure a flawless finish.
Porcelain slabs are large-format tiles, often measuring around 120" x 60" and typically 6 to 12 mm thick. Their hardness (rated 7–8 on the Mohs scale) makes them resistant to scratches and stains but also brittle and prone to cracking if mishandled. Installing a porcelain slab on counter surfaces demands precision, careful handling, and the right tools to avoid damage during cutting, transporting, and setting.
Porcelain slabs are manufactured through a process of pressing and firing at high temperatures, resulting in a dense, non-porous surface. This makes them ideal for kitchen countertops, bathroom vanities, and other high-use surfaces. However, their rigidity means that improper installation can lead to cracks or breakage, making the choice of tools and technique critical.
- Suction Cup Racks and Pressure-Gauge Suction Cups
These specialized suction cups provide a secure grip on the smooth porcelain surface, allowing safe lifting and maneuvering of the slab without causing scratches or cracks. They require 2 to 4 people to operate effectively for large slabs. Suction cups with pressure gauges ensure the grip strength is adequate before lifting, reducing the risk of accidental drops.
- A-Frame Trolleys or Dollies
Used to transport slabs vertically and stabilize them during movement, preventing flexing or accidental drops. The A-frame design supports the slab's weight evenly and minimizes stress points.
- Protective Gloves and Eye Protection
To safeguard installers from sharp edges and dust particles during cutting and handling. Porcelain edges can be razor-sharp, and dust from cutting is harmful if inhaled.
- Measuring Tape and Pencil/Chalk
Accurate measurements are critical. Marking the slab for cuts must be precise to fit countertops perfectly, especially around sinks or appliances. Using a fine-tipped pencil or chalk designed for porcelain surfaces helps ensure clear, non-smudging lines.
- Templates (Cardboard or Craft Paper)
Templates help map out complex cuts and curves before marking the slab. Creating a full-scale template allows you to verify fit and alignment on-site, avoiding costly mistakes.
- Diamond Blade Wet Saw
This is the primary cutting tool for porcelain slabs. The diamond blade, combined with water cooling, prevents overheating and chipping during cuts. It is essential for straight cuts and shaping edges. Wet saws reduce dust and keep the blade cool, extending blade life and improving cut quality.
- Hole Saws Designed for Porcelain
For cutting holes for sinks, faucets, and outlets, hole saws with diamond grit are used to avoid cracks. These hole saws come in various diameters to accommodate different sink and fixture sizes.
- Angle Grinders with Diamond Blades
Used for enlarging holes or making detailed cuts, operating at controlled feed rates to prevent damage. Angle grinders offer flexibility but require steady hands and experience to avoid over-cutting or chipping.
- Score and Snap Tools
These tools allow scoring the slab and snapping it along the scored line for smaller or straight cuts. This method is less common for large slabs but useful for minor adjustments.
- Spirit Level and Straightedge
To ensure the countertop surface is perfectly level and aligned during installation. Even minor deviations can cause water pooling or uneven wear.
- Notched Trowels
Used for spreading adhesives evenly on the substrate, ensuring proper mortar contact (ideally 90% coverage). The size of the notch depends on the slab thickness and adhesive type.
- Rubber Mallet
For gently tapping the slab into place without causing damage. A soft rubber mallet prevents cracking or chipping the porcelain surface.
- Spacers and Leveling Clips
Maintain consistent gaps between slabs for grout lines and prevent lippage (uneven edges). Leveling clips are especially useful for large-format slabs to keep edges flush.
- Vibrators
Applied to the slab to eliminate air pockets under the tile, ensuring full adhesion and reducing breakage risk. Vibrators improve the bond strength and reduce the likelihood of slab movement over time.
- Epoxy Resin or Modified Thinset Mortar
Special adhesives designed for porcelain slabs provide strong bonding and flexibility. Epoxy resin adhesives offer superior strength and water resistance but require careful mixing and application. Modified thinset mortars are more forgiving and easier to work with but may not be suitable for all installations.
- Silicone Caulking
Used to seal edges where the countertop meets walls or backsplashes, preventing water intrusion. Choose a high-quality, mold-resistant silicone for longevity.
- Polishing Tools and Buffers
For smoothing and finishing edges, especially if customized edge profiles like bevels or bullnose are chosen. Polishing enhances the slab's aesthetic and removes sharp edges.
- Rubber or Silicone Caulk Smoothers
To create clean, professional-looking caulk lines. Proper smoothing prevents water infiltration and improves appearance.
Before beginning the installation, thoroughly assess the countertop area. Measure all dimensions carefully, including length, width, and thickness requirements. Account for any cutouts needed for sinks, faucets, or cooktops. Creating a full-scale cardboard or craft paper template is highly recommended to visualize the fit and mark complex curves or angles.
Double-check all measurements to avoid costly errors. Porcelain slabs are unforgiving when it comes to mistakes, so precision is paramount.
Porcelain slabs are heavy and fragile. Use suction cup racks and A-frame trolleys to move the slab safely from delivery to the installation site. Always have at least two people assist in handling to minimize risk. Avoid flexing or dropping the slab, as even slight impacts can cause cracks.
Wear protective gloves and eye protection during handling to prevent injuries from sharp edges or dust.
Using the template, mark the slab carefully for all required cuts. For straight cuts, a diamond blade wet saw is ideal. Keep the blade wet during cutting to reduce heat and dust, which can damage the slab and the blade.
For sink or faucet holes, drill corner holes with a diamond grit hole saw, then connect them using an angle grinder fitted with a diamond blade. Work slowly and steadily to prevent chipping.
After cutting, polish the edges with appropriate tools to smooth any roughness and prevent cracking during installation.
Ensure the cabinet or substrate surface is clean, dry, and level. Any unevenness can cause stress points leading to slab breakage. If necessary, apply a leveling compound to the substrate.
Some manufacturers recommend applying a primer or cementitious slurry to the back of the slab to improve adhesive bonding. Follow the adhesive manufacturer's instructions carefully.
Spread the adhesive evenly on the substrate with a notched trowel, ensuring at least 90% coverage. For large slabs, back-butter the slab's underside with adhesive to improve bonding.
Use adhesives specifically formulated for porcelain slabs, such as epoxy resin or modified thinset mortar. Epoxy provides superior strength but requires careful mixing and application.
Carefully place the slab onto the adhesive bed, using spacers to maintain consistent gaps for grout lines. Tap the slab gently with a rubber mallet to ensure full contact with the adhesive.

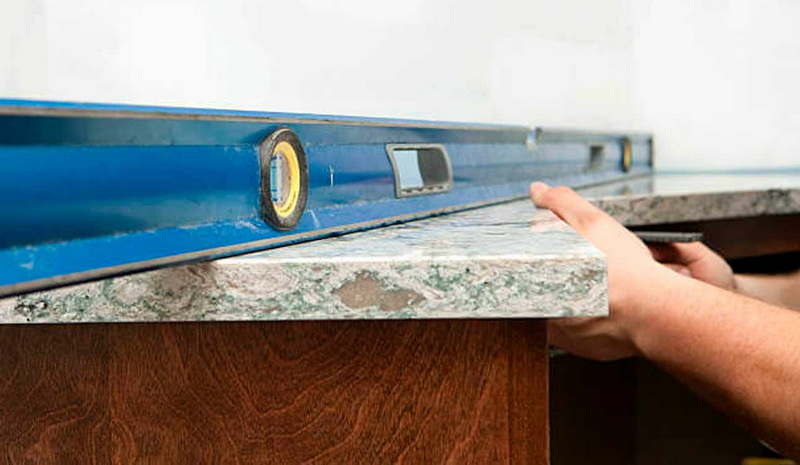

Use a spirit level and straightedge to check for flatness and alignment. Adjust as needed before the adhesive sets.
Applying a vibrator to the slab surface can help eliminate air pockets beneath the slab, improving adhesion and reducing the risk of future cracking.
Fill seams between slabs with high-quality epoxy or resin to create a nearly seamless appearance. After the adhesive cures, apply grout if necessary, then clean off excess grout promptly.
Proper seam filling is essential to prevent water infiltration and maintain the countertop's structural integrity.
Finish the edges according to your design preference. Use polishing tools to create smooth, attractive profiles such as beveled or bullnose edges.
Seal joints where the countertop meets walls or backsplashes with silicone caulking to prevent water damage. Smooth caulk lines with a rubber or silicone tool for a clean finish.
- Work in a Controlled Environment: Porcelain slabs can expand or contract with temperature changes. Installing in a stable environment reduces stress on the material.
- Use Proper Support: Porcelain slabs require adequate support underneath. Reinforce cabinets or substrate to prevent sagging or flexing.
- Plan for Expansion Joints: Leave small gaps around the perimeter to accommodate expansion and contraction, preventing cracks.
- Wear a Dust Mask: Cutting porcelain generates fine dust harmful to lungs. Always use a dust mask or respirator.
- Practice Cutting on Scrap Pieces: If new to porcelain slabs, practice cuts on scrap material to build confidence and skill.
While this guide provides detailed instructions, visual aids can significantly enhance understanding. Here are recommended types of visuals to accompany each step:
- Photos of suction cup racks and slab transport techniques.
- Images of diamond blade wet saws in action cutting porcelain slabs.
- Diagrams showing template creation and marking on slabs.
- Videos demonstrating adhesive application and slab setting methods.
- Clips showing polishing and finishing edges.
For example, a comprehensive video on porcelain slab installation tools and techniques can be found here:
- Installation Techniques for Gauged Porcelain Tile and Panels
Installing a porcelain slab on counter surfaces is a meticulous process that demands specialized tools and careful handling. From precise measurement and safe transportation to expert cutting and adhesive application, each step requires the right equipment and technique to avoid damage and achieve a stunning, durable countertop. Investing in quality tools like diamond blade wet saws, suction cup racks, and proper adhesives ensures a professional finish and long-lasting results. Whether you are a professional installer or a skilled DIY enthusiast, understanding and using these essential tools will make the installation process smoother and more successful.
Use suction cup racks combined with A-frame trolleys and have at least two to four people assist. This prevents flexing and accidental drops that can crack the slab.
No, porcelain slabs require a diamond blade wet saw specifically designed for large-format, brittle materials to avoid chipping and cracking.
Prepare a clean, level substrate and use a polymer-modified thinset mortar or epoxy resin. Back-butter the slab and apply adhesive evenly with a notched trowel, ensuring 90% mortar contact.
Yes, start with corner holes drilled using a diamond hole saw with a 10 mm internal radius, then connect them with an angle grinder at controlled feed rates to prevent cracks.
While skilled DIYers with the right tools can install porcelain slabs, professional installation is recommended due to the material's brittleness and the precision required for cutting, handling, and setting.
