When it comes to tiling projects, one of the most common questions that arise is whether it's safe to install porcelain tiles on a wet concrete slab. This concern is valid, as moisture can significantly impact the longevity and stability of your tiled surface. In this comprehensive guide, we'll explore the challenges of installing porcelain tiles on wet slabs, provide solutions, and offer expert advice to ensure your tiling project's success.
Before diving into the installation process, it's crucial to understand why installing porcelain tiles on a wet slab can be problematic. Concrete slabs naturally contain moisture, which can lead to several issues if not properly addressed:
1. Adhesive failure: Excess moisture can prevent proper bonding between the tile and the adhesive, leading to loose or detached tiles.
2. Efflorescence: As moisture evaporates, it can carry dissolved salts to the surface, resulting in unsightly white deposits on your tiles and grout.
3. Mold and mildew growth: Trapped moisture creates an ideal environment for mold and mildew to thrive, potentially causing health issues and damaging your tiles.
4. Warping or cracking: In extreme cases, excessive moisture can cause tiles to warp or crack, compromising the integrity of your flooring.
Before proceeding with any tile installation, it's essential to test the concrete slab for moisture content. The most reliable method is the ASTM F2170 Relative Humidity (RH) test[9]. This test involves drilling small holes in the concrete and inserting probes to measure the relative humidity within the slab.
Acceptable moisture levels:
- For most tile installations, the relative humidity should be 80% or less[9].
- Some manufacturers may have specific requirements, so always check the product guidelines.
If your concrete slab exceeds the acceptable moisture levels, don't despair. There are several methods to prepare the surface for tile installation:
For newly poured concrete slabs, it's crucial to allow adequate curing time before installing tiles. The general rule of thumb is:
- For slabs up to 50mm thick: Allow 1 day of drying per mm of thickness[5].
- For slabs thicker than 50mm: Allow 2 days of drying per mm of thickness[5].
A moisture barrier or vapor retarder can help prevent moisture from migrating through the concrete slab. There are several options available:
- Liquid-applied membranes
- Sheet membranes
- Epoxy-based moisture barriers
Applying a cement-based waterproof coating can create a durable, waterproof layer that protects the screed from water penetration[5]. This method is particularly effective for areas prone to moisture exposure.
A decoupling membrane can provide an added layer of protection against moisture while also helping to prevent cracks in the tile due to substrate movement.
Selecting appropriate materials is crucial for a successful tile installation on a potentially damp surface:
Opt for a high-quality, moisture-resistant tile adhesive specifically designed for outdoor or wet area use. Look for products labeled as:
- Water-resistant
- Flexible
- Suitable for porcelain tiles
Choose a water-resistant or epoxy-based grout to further protect against moisture infiltration. These types of grout are less porous and more resistant to staining and efflorescence.
When installing porcelain tiles on a potentially damp surface, consider the following techniques:
Apply a thin layer of adhesive to the back of each tile before placing it on the adhesive bed. This technique ensures full coverage and eliminates air pockets that could trap moisture[5].

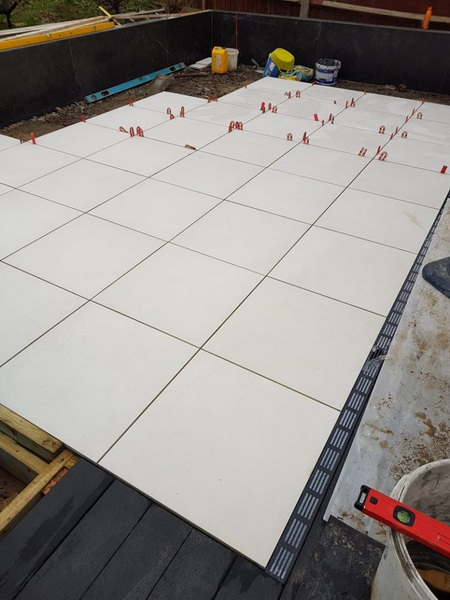

A tile leveling system can help ensure even spacing and prevent lippage, which is especially important when working with large-format porcelain tiles.
After installation, allow the adhesive to dry completely before grouting. This typically takes at least 24 hours, but always follow the manufacturer's recommendations[5].
Include expansion joints in your tile layout to accommodate any potential movement in the substrate due to moisture or temperature changes.
In some cases, traditional adhesive-based installation may not be suitable for a damp concrete slab. Here are some alternative methods to consider:
This method involves using adjustable pedestals to create a raised floor system. It allows for better drainage and air circulation beneath the tiles, reducing moisture-related issues[7].
Advantages:
- Excellent for uneven surfaces
- Allows for easy access to utilities beneath the tiles
- Provides better insulation
For outdoor applications, porcelain tiles can be dry-laid directly onto a prepared base of grass or gravel. This method is particularly useful for creating temporary or easily adjustable patio spaces[7].
Advantages:
- Quick and easy installation
- No need for adhesives or grout
- Tiles can be easily removed or repositioned

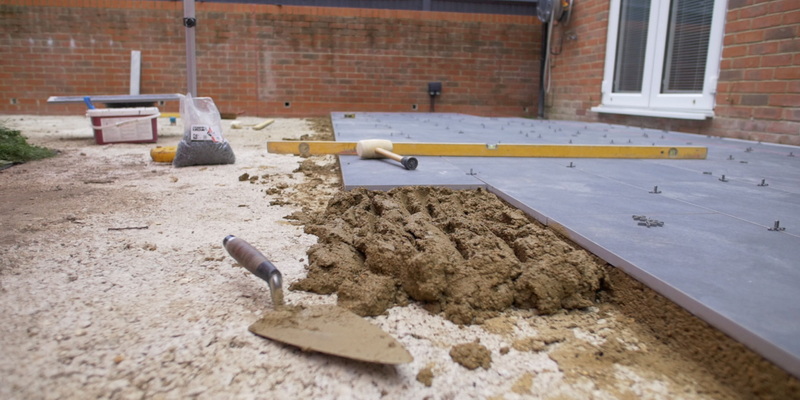

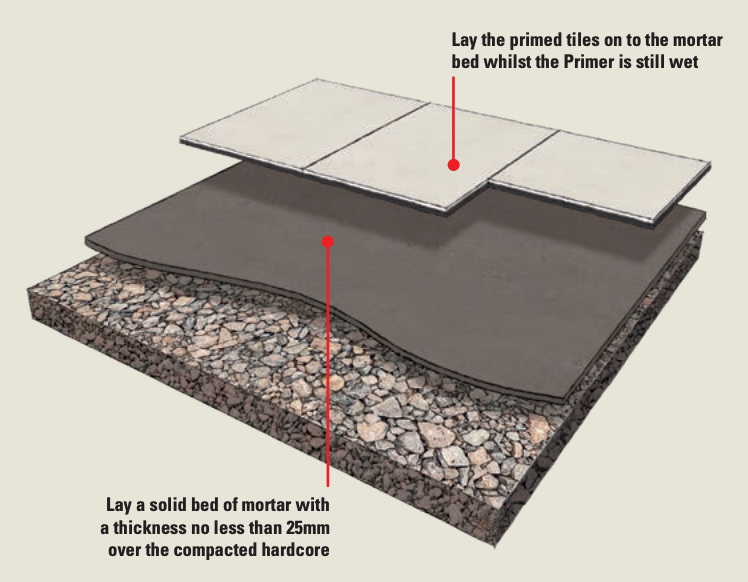

This technique involves creating a foundation of sand blended with cement to secure the tiles. It's particularly suitable for high-traffic areas and can withstand vehicle weight[7].
Advantages:
- Maximum stability over time
- Ideal for areas open to vehicle traffic
- Suitable for areas with high pedestrian traffic
Once your porcelain tiles are installed, proper maintenance is key to ensuring their longevity, especially in potentially damp environments:
1. Regular cleaning: Use a pH-neutral cleaner to avoid damaging the tiles or grout.
2. Sealing: Consider applying a penetrating sealer to the grout lines to enhance water resistance.
3. Inspect regularly: Check for any signs of moisture damage, such as loose tiles or efflorescence.
4. Address issues promptly: If you notice any problems, address them immediately to prevent further damage.
While installing porcelain tiles on a wet slab presents challenges, it's not an impossible task. By properly testing for moisture, preparing the surface, choosing the right materials, and using appropriate installation techniques, you can create a beautiful and durable tiled surface even in potentially damp conditions. Remember to always consult with professionals and follow manufacturer guidelines for the best results.
It's not recommended to install porcelain tiles directly on a damp concrete slab without proper preparation. Excess moisture can lead to adhesive failure, efflorescence, and other issues. Always test the moisture content of the slab and take appropriate measures to mitigate moisture before installation.
The waiting time depends on the thickness of the slab. For slabs up to 50mm thick, allow 1 day of drying per mm of thickness. For thicker slabs, allow 2 days per mm. Always test the moisture content before proceeding with tile installation.
Look for a high-quality, moisture-resistant tile adhesive specifically designed for outdoor or wet area use. Choose products labeled as water-resistant, flexible, and suitable for porcelain tiles. Consult with a professional or the adhesive manufacturer for specific recommendations based on your project.
To prevent moisture-related issues, consider using a moisture barrier or waterproof coating before installation. After installation, maintain proper expansion joints, use water-resistant grout, and apply a penetrating sealer to the grout lines. Regular maintenance and prompt addressing of any issues are also crucial.
Yes, there are alternative methods for installing porcelain tiles in damp areas. These include raised laying with support systems, dry laying on grass or gravel for outdoor applications, and laying on a mixture of wet sand and cement. Each method has its advantages and is suitable for different situations.
