● Understanding Porcelain Slabs and Their Handling Challenges
● The Importance of Safe Handling
● Essential Equipment for Moving Porcelain Slabs
>> Porcelain Slab Handling Racks
>> Personal Protective Equipment (PPE)
● Step-by-Step Guide: Safely Moving Porcelain Slabs With Handling Racks
>> Attaching Suction Cups and Stabilizer Bars
>> Lifting and Moving the Slab
>> Positioning and Installation
● Advanced Handling Techniques
>> Using Mechanical Lifting Devices
● Best Practices for Storage and Site Preparation
● Maintenance and Care of Handling Racks
● Training and Safety Protocols
● Visual Demonstrations: Videos and Illustrations
● FAQ: Top 5 Questions About Porcelain Slab Handling Racks
>> 1. What is the best type of handling rack for porcelain slabs?
>> 2. How many people are needed to safely move a large porcelain slab?
>> 3. Can I move porcelain slabs without suction cups or handling racks?
>> 4. How do I protect slab edges during transport and storage?
>> 5. Are handling racks reusable, and how should they be maintained?
Porcelain slabs have transformed the world of architectural surfaces, offering a sleek, modern look with exceptional durability for floors, walls, countertops, and even outdoor applications. Their impressive size, however, comes with significant logistical challenges. Handling and moving these large-format slabs requires careful planning, specialized equipment, and a strong commitment to safety. In this guide, you will discover everything you need to know about safely moving porcelain slabs with handling racks, from essential equipment and preparation to advanced techniques and expert tips.
Porcelain slabs are manufactured using advanced processes that produce ultra-dense, extremely hard, and thin panels. They often measure up to 5 feet by 11 feet (or even larger) and range in thickness from 6mm to 12mm. This combination of size and minimal thickness means porcelain slabs are both heavy and surprisingly fragile if mishandled.
Key Handling Challenges:
- Flexing and Breakage: Large slabs can flex under their own weight if not properly supported, leading to cracks or catastrophic breaks.
- Edge Vulnerability: The edges and corners of porcelain slabs are especially prone to chipping and damage.
- Weight: A single slab can weigh over 140 lbs, making manual handling risky without the right equipment.
- Surface Finish: The smooth, often polished surface can be slippery, increasing the risk of accidental drops.
Improper handling of porcelain slabs can result in:
- Costly material losses due to breakage
- Personal injury to workers or bystanders
- Project delays and increased labor costs
- Damage to surrounding property or finished surfaces
By investing in the right porcelain slab handling racks and following best practices, you not only protect your investment but also ensure a safer, more efficient work environment.
Handling racks, also known as A-frame racks or slab transporters, are designed to hold slabs in a vertical or slightly inclined position. They are equipped with padded supports, safety brackets, and sometimes wheels for easy movement. The racks prevent slabs from flexing, tipping, or sliding during transport and storage.
Suction cups create a strong, temporary bond with the slab's surface, allowing handlers to lift and maneuver the slab with greater control. Professional-grade suction cups feature vacuum gauges for safety and are often used in pairs or sets for even weight distribution.

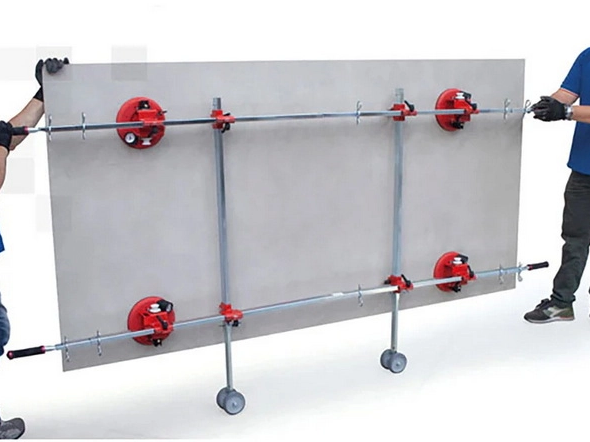

Stabilizer bars, sometimes called slab frames, attach to the slab using suction cups and provide a rigid structure that prevents flexing. Adjustable crossbars accommodate slabs of various sizes, and the frame design allows for easy lifting and movement by multiple handlers.
Trolleys and dollies are wheeled platforms that support the slab and frame, allowing for smooth movement across the job site. Many are equipped with locking wheels, padded supports, and adjustable widths for different slab dimensions.
Essential PPE includes:
- Cut-resistant gloves for handling sharp edges
- Steel-toed boots to protect feet from dropped slabs
- Hard hats and safety goggles for head and eye protection
- High-visibility vests for job site awareness
- Inspect the Slab: Check for cracks, chips, or manufacturing defects before moving. Damaged slabs are more likely to break during handling.
- Check Equipment: Ensure all handling racks, suction cups, and stabilizer bars are clean, dry, and in good working condition.
- Clear the Path: Remove obstacles and debris from the planned route. Ensure the ground is level and free from tripping hazards.
- Plan the Move: Discuss the route and process with your team to ensure everyone is aware of their role.
- Clean Surfaces: Wipe both the slab and suction cups with a clean, damp cloth to ensure maximum grip.
- Position Suction Cups: Place cups at least 4 inches from the edges, spaced evenly along the length and width of the slab.
- Attach Stabilizer Bars: Secure the bars to the suction cups, ensuring the frame is rigid and stable.
- Test the Grip: Gently lift the slab a few inches to confirm all suction cups are securely attached.
- Teamwork: For slabs up to 120x240cm, two handlers are sufficient. For larger slabs (such as 160x320cm), use four handlers.
- Lift Vertically: Always keep the slab upright to prevent flexing. Lift using the frame handles, not the slab edges.
- Use a Trolley: If moving the slab over a distance, secure the frame to a slab trolley. Lock the slab in place before moving.
- Move Slowly: Avoid sudden movements, jerks, or changes in direction that could destabilize the slab.
- Transition Carefully: When changing the slab's orientation (horizontal to vertical or vice versa), do so gradually using padded supports.
- Avoid Edge Pressure: Never rest the slab directly on hard surfaces or apply force to the corners.
- Release Suction Cups: Once the slab is in place, carefully release the suction cups to avoid sudden detachment.
- Vertical Storage: Store slabs vertically on A-frame racks with padded supports to prevent warping and damage.
- Use Safety Brackets: Secure slabs with brackets or straps to prevent tipping.
- Don't Overload: Never exceed the rack's rated capacity.
For very large or heavy slabs, mechanical lifting devices such as cranes or forklifts equipped with slab lifting attachments can be used. Always ensure the attachment is compatible with porcelain slabs and that the lifting points are properly padded.
If moving multiple slabs at once, use handling racks designed for stacking. Place protective spacers between slabs to prevent surface scratching and edge chipping.
When maneuvering slabs through doorways or narrow corridors, measure all clearances in advance. Use corner protectors and move slowly, with spotters guiding the process.
Extreme cold or heat can affect the flexibility and brittleness of porcelain. Avoid moving slabs in freezing conditions or direct sunlight when possible. If necessary, acclimate slabs to room temperature before handling.
- Indoor Storage: Whenever possible, store slabs indoors to protect against moisture, temperature changes, and UV exposure.
- Level Ground: Place racks on a flat, stable surface to prevent tipping.
- Edge Protection: Use foam or rubber bumpers along the rack's contact points.
- Regular Inspections: Check stored slabs and racks periodically for signs of stress, shifting, or potential hazards.
- Organized Layout: Arrange slabs by size and type for easy access and minimal handling.
- Skipping Pre-Inspection: Failing to check slabs and equipment for defects can lead to accidents.
- Improper Suction Cup Placement: Placing cups too close to edges or on dirty surfaces reduces holding power.
- Overloading Equipment: Exceeding the rated capacity of racks or trolleys risks catastrophic failure.
- Single-Person Handling: Never attempt to move large slabs alone.
- Rushing the Process: Haste increases the likelihood of damage and injury.
- Clean After Use: Wipe down suction cups and frames to remove dust and debris.
- Inspect for Wear: Look for cracks, worn pads, or loose hardware before each use.
- Lubricate Moving Parts: Apply manufacturer-recommended lubricants to wheels and hinges.
- Storage: Keep racks and suction cups in a dry, sheltered area to prevent rust and deterioration.
- Replace Worn Parts: Suction pads and safety straps should be replaced regularly based on usage.
- Comprehensive Training: All handlers should receive hands-on training with porcelain slab handling racks and related equipment.
- Safety Briefings: Conduct regular safety meetings and reviews of best practices.
- Clear Communication: Use hand signals and verbal cues during moves, especially in noisy environments.
- Emergency Procedures: Ensure all workers know what to do in case of an accident or equipment failure.
- Documentation: Maintain records of training, inspections, and incidents for ongoing improvement.
To enhance your understanding of safe porcelain slab handling, review these instructional videos:
- How to Handle & Move Porcelain Slabs, With the Rubi Slab System
- Guide to Handling Large Porcelain Stoneware Slabs
- Floor & Decor Presents: XL Porcelain Slabs Class with Mapei & Rubi
- How to Move Large Porcelain Tile
- Thin Porcelain Slabs: Handling and Moving
These videos show real-world use of handling racks, suction systems, and teamwork in action.
Moving porcelain slabs safely with handling racks is a complex but manageable task when approached with the right knowledge, tools, and attitude. By investing in high-quality porcelain slab handling racks, using professional-grade suction cup systems, and following best practices for preparation, movement, and storage, you can dramatically reduce the risks of breakage and injury. Remember, every successful project starts with careful planning, teamwork, and a commitment to safety. Whether you are a seasoned contractor or a DIY enthusiast, these guidelines will help you achieve flawless results and protect your investment for years to come.
A-frame racks with padded supports and locking mechanisms are ideal for storing and transporting porcelain slabs. They provide vertical support, minimize flexing, and can be equipped with safety brackets to prevent tipping.
For slabs up to 120x240cm, two experienced handlers are sufficient. For larger slabs (e.g., 160x320cm), a team of four is recommended to ensure stability and prevent breakage during movement.
It is not recommended. Attempting to move slabs without proper equipment greatly increases the risk of breakage and injury. Suction cups and handling racks are essential for safe, efficient movement.
Use rubber bumpers or edge protectors along all slab edges. Ensure slabs are always supported on padded surfaces, and avoid direct contact with hard materials that could cause chipping.
Yes, most handling racks and suction cup systems are reusable with proper maintenance. Clean suction pads after each use, store equipment in a dry place, and replace worn-out components regularly to ensure ongoing safety and performance.
