Installing foam porcelain slabs correctly is essential to achieving a durable, attractive, and long-lasting surface for patios, countertops, walls, or floors. Foam porcelain slabs combine the lightweight benefits of foam backing with the strength and beauty of porcelain, making them ideal for modern construction and renovation projects. This comprehensive guide will walk you through every step of the installation process, including preparation, tools needed, laying techniques, and finishing touches. Along the way, you will find helpful tips and video resources to ensure your project is successful.
Foam porcelain slabs are large-format porcelain tiles bonded to a foam backing. This combination reduces weight while maintaining the slab's structural integrity and durability. The foam backing also facilitates easier handling and installation compared to traditional porcelain slabs.
Because of their size and thinness, foam porcelain slabs require precise installation techniques to avoid cracking, shifting, or uneven surfaces. Proper substrate preparation, adhesive application, and jointing are critical.
Foam porcelain slabs are increasingly popular in both residential and commercial settings due to their versatility. They can be used for indoor flooring, outdoor patios, wall cladding, and even kitchen countertops. Their resistance to stains, scratches, and weathering makes them an excellent choice for high-traffic areas.
Before starting your installation, gather the following essential tools and materials:
- Foam porcelain slabs (with foam backing)
- Primer suitable for porcelain surfaces
- Modified thin-set mortar (polymer-modified)
- Notched trowel (1/4" to 1/2" depending on slab thickness)
- Rubber mallet
- Spirit level and laser level
- Spacers (3-5 mm recommended)
- Grout or polymeric jointing sand
- Foam backer rods (for joints)
- Utility knife and tile cutter or diamond blade saw
- Protective gear (gloves, eye protection, knee pads)
- Measuring tape and chalk line
- Brush for cleaning slabs
- Foam shims for leveling (optional but recommended)
- Sealant for edges and joints
- Buckets and mixing paddle for mortar
- Sponge and clean water for finishing
Begin by measuring and marking the installation area accurately using wooden pegs or chalk lines. Clear the area of vegetation, roots, stones, and debris. The ground must be stable and free of loose material to prevent slab movement later on.
If installing outdoors, consider the climate and drainage patterns. Proper drainage is crucial to prevent water pooling that can damage the foam porcelain slabs over time. Ensure the site slopes away from buildings at a minimum of 2%.
A strong sub-base is vital for supporting foam porcelain slabs. Excavate the area to accommodate the sub-base depth, bedding, and slab thickness.
- Lay a minimum of 200mm (8 inches) of compacted granular base such as crushed gravel or hardcore.
- Ensure proper compaction to avoid future settling.
- If drainage is a concern, use permeable materials and install drainage holes or geotextile fabrics to prevent water accumulation.
The sub-base should be leveled and compacted using a plate compactor or hand tamper. A well-prepared sub-base prevents uneven settling, which can cause slab cracking or movement.
For enhanced load distribution and easier installation, an interlocking polyethylene foam board (foam tile backer) can be installed over the sub-base. This foam board must be specifically manufactured for paving applications and include drainage holes to prevent frost or water damage beneath.
- Lay the foam board on the compacted base.
- Secure edges with low-profile plastic or aluminum restraints.
- Use a screeded bedding layer of coarse sand (about 1 inch thick) over the foam board to create a level surface.
This method is especially useful when installing foam porcelain slabs over uneven ground or areas prone to frost heave.
Porcelain is non-porous, so applying a primer to the back of the slabs is critical for adhesion.
- Use a masonry or paving primer.
- Apply a thin, even coat on the foam backing side of each slab immediately before installation.
- Allow the primer to become tacky but not dry.
Priming improves the bond between the foam porcelain slab and the mortar, reducing the risk of delamination.
Use a modified thin-set mortar suitable for porcelain slabs. Mix according to manufacturer instructions, ensuring a workable consistency.
- Apply mortar to the substrate using a flat trowel.
- Back butter the slab's foam backing with mortar using a notched trowel (3/8" to 1/2" notch recommended).
- This double application ensures full coverage and adhesion.

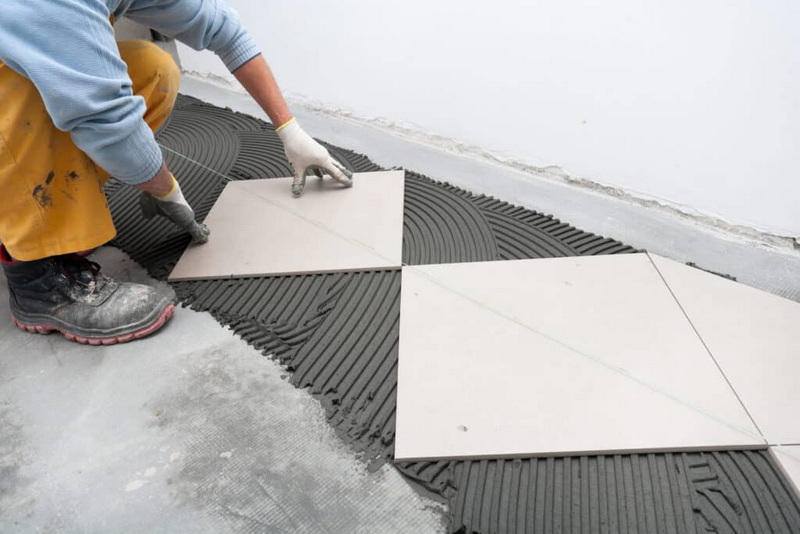

When applying mortar, work in small sections to prevent it from drying out before placing the slabs. The mortar bed should be thick enough to accommodate minor imperfections in the sub-base but not so thick that it causes unevenness.
- Position the slab carefully onto the mortar bed.
- Tap gently with a rubber mallet to seat the slab and remove air pockets.
- Use a spirit level or laser level to check flatness and alignment.

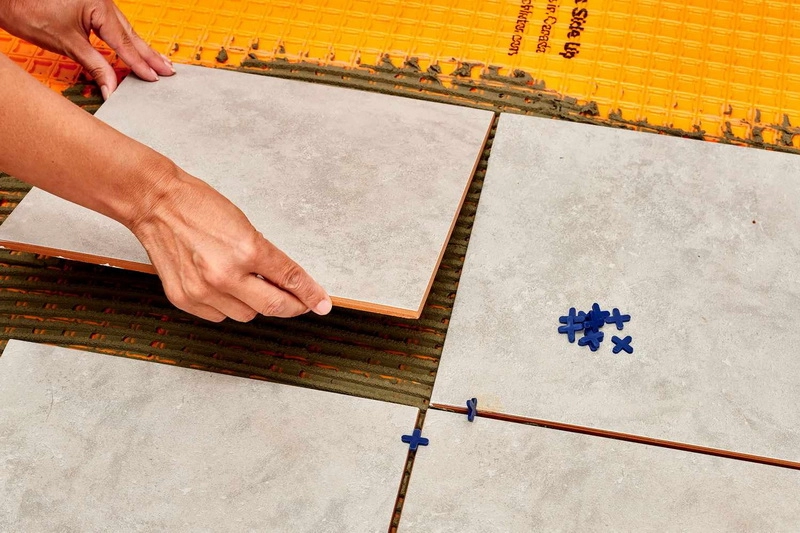

- Maintain consistent joint spacing of approximately 5 mm between slabs using spacers.
- Use foam shims if necessary to level any uneven areas.
Large-format foam porcelain slabs can be heavy despite their foam backing, so enlist help if needed to avoid damage or injury. Take care to avoid sliding the slabs once placed, as this can disturb the mortar bed.
- Insert foam backer rods into joints if the gap is wider than 3 mm to reduce grout volume.
- Fill joints with polymeric jointing sand or modified grout suitable for exterior horizontal surfaces.
- Seal edges and joints with a polyurethane sealant to prevent water ingress.
- Allow at least 24 hours for the mortar and grout to cure before walking on the surface.
Proper jointing not only enhances the appearance but also accommodates thermal expansion and contraction, preventing cracks.
- Store foam porcelain slabs flat and on a level surface to prevent warping.
- Protect slabs from direct sunlight and extreme temperatures before installation.
- Handle slabs carefully to avoid chipping or cracking the edges.
Cutting foam porcelain slabs requires precision and the right tools:
- Use a wet saw with a diamond blade designed for porcelain.
- Drill pilot holes before making curved or intricate cuts to reduce stress.
- Always wear protective gear when cutting.
- Clean the surface regularly with pH-neutral cleaners.
- Avoid harsh chemicals that can degrade grout or sealants.
- Inspect joints periodically and reseal if necessary to maintain waterproofing.
- Remove debris and prevent standing water to prolong slab life.
To aid your installation, here are some recommended video tutorials demonstrating foam tile and porcelain slab installation techniques:
- How to Install Foam Tiles Made Easy
- 5 Tools You Didn't Know You Needed for Porcelain Slab Installs
- Porcelain Tile Slabs - How to Install Them
These videos cover essential tools, substrate preparation, mortar application, and slab handling techniques.

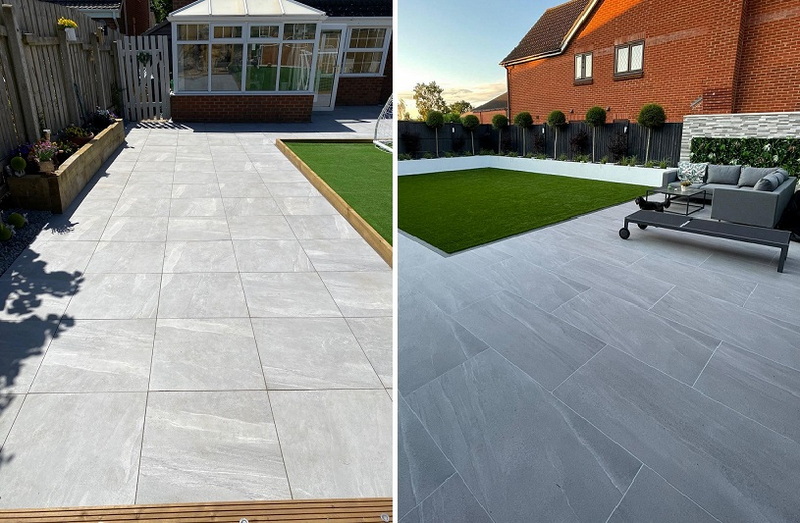

Proper installation of foam porcelain slabs requires careful planning, the right materials, and precise techniques. By preparing a stable sub-base, applying primer, using quality mortar, and maintaining consistent joint spacing, you can achieve a stunning, durable surface that will last for years. Foam porcelain slabs offer the advantage of reduced weight without sacrificing strength, making them an excellent choice for patios, countertops, and walls. Following the steps outlined in this guide will help ensure your installation is professional and long-lasting.
With the right approach, your foam porcelain slab installation will not only look beautiful but also stand the test of time, providing a maintenance-friendly and resilient surface for your home or commercial space.
A gap of 3 to 5 millimeters is recommended between foam porcelain slabs to allow for expansion and proper jointing.
Yes, but the concrete must be clean, level, and structurally sound. It is important to prime the slab backs and use a full mortar bed to ensure adhesion.
A mortar bed thickness of 15 to 30 millimeters is typically used, depending on slab thickness and manufacturer recommendations.
Yes, use diamond blade saws with pilot holes for cutting to avoid cracking. Foam porcelain slabs are thin and large, so proper cutting tools and techniques are essential.
While not always mandatory, using an interlocking polyethylene foam board can facilitate faster installation and improve load distribution, especially for outdoor paving.
