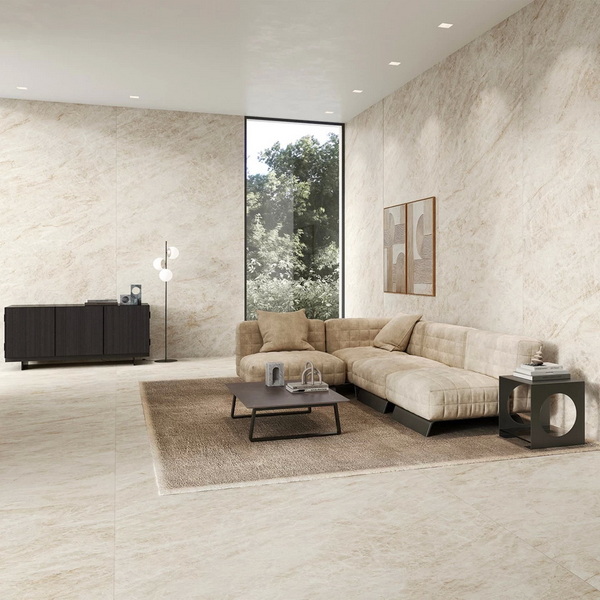

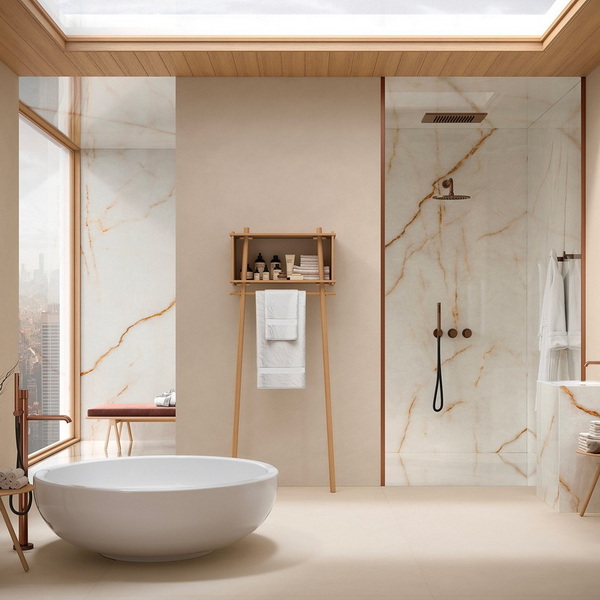

Porcelain slabs have become a popular choice for modern flooring, countertops, wall cladding, and various architectural applications due to their durability, aesthetic appeal, and large-format sizes. However, handling and installing these large, heavy, and fragile slabs require specialized tools and techniques to prevent damage and ensure safety. One essential tool in this process is the porcelain slab clamp. This comprehensive guide will explore how to use a porcelain slab clamp effectively during installation, covering preparation, handling, installation steps, safety considerations, maintenance, and troubleshooting.
A porcelain slab clamp is a mechanical device designed to securely grip large porcelain slabs during lifting, transport, and installation. These clamps provide a firm hold at specific contact points on the slab, preventing bending, twisting, or slipping that could cause breakage or chipping. There are different types of clamps, including single clamps and double clamps, with double clamps preferred for better weight distribution and stability.
- Safety: Reduces the risk of slab damage and injury to installers by providing a secure grip.
- Efficiency: Facilitates easier lifting and maneuvering of heavy slabs.
- Precision: Helps maintain slab alignment during installation.
Porcelain slab clamps come in various designs tailored to different slab sizes and weights. The most common types include manual clamps, hydraulic clamps, and vacuum-assisted clamps. Manual clamps require physical tightening, while hydraulic clamps use fluid pressure for a stronger and more controlled grip. Vacuum-assisted clamps use suction technology to hold the slab securely without direct mechanical pressure, reducing the risk of surface damage.
Most clamps are made from high-strength steel or aluminum alloys to balance durability and weight. The gripping surfaces are often lined with rubber or polyurethane pads to protect the slab edges from scratches and chips. Regular maintenance of these pads is crucial to ensure effective gripping and prevent damage.
Before beginning, thoroughly inspect the porcelain slab for any visible defects such as cracks, chips, or warping. Use a flashlight at an angle to detect hairline cracks that might not be immediately visible. Also, inspect the clamp for any wear, damage, or loose parts. Check the integrity of springs, locking mechanisms, and the condition of rubber pads. Ensure all bolts and nuts are tight and rubber fittings on the clamp are intact to protect the slab surface. Replace any worn or damaged parts before use.
Clean the areas on the slab where the clamp will grip to remove dust, debris, or moisture. Use a lint-free cloth and a mild detergent solution, avoiding abrasive cleaners that could scratch the surface. Ensure the clamp's gripping pads are also clean and free from debris. This prevents slipping and ensures a firm hold. Rubber or padded fittings on the clamp should be used to avoid direct metal-to-porcelain contact, which can cause scratches or cracks.
If a double clamp is not available, a single clamp can be used with additional support. Insert a rigid piece of wood or plywood (for example, a 1”x8”x10' board) behind the slab at the clamp contact point to enlarge the grip area and prevent rotation or twisting during lifting. Ensure the backing material is rigid and free from defects, and secure it firmly to prevent shifting during lifting. This method is especially useful in tight spaces where double clamps cannot be used.
- Place the porcelain slab on a stable surface.
- Position the clamp so that it grips the slab at its center or designated contact points.
- Consider the slab's center of gravity when positioning the clamp to maintain balance during lifting.
- For irregularly shaped slabs, adjust the clamp placement accordingly to avoid stress points.
- Ensure the clamp jaws fully encompass the slab edge without overhanging or missing the grip area.
- For double clamps, position the two gripping points evenly spaced to distribute weight and minimize bending.
- Activate the clamp mechanism (manual or hydraulic) to lock the jaws onto the slab securely.
- Double-check the clamp's locking mechanism by gently attempting to move the slab. If there is any movement, readjust the clamp to ensure a firm grip.
- Confirm that the clamp is firmly attached and that the slab is stable within the clamp.
- If the clamp has a release button or lever, ensure it is engaged properly to prevent accidental release.
- Use a crane, gantry, forklift, or other mechanical lifting device attached to the clamp.
- Slowly take up the slack in the lifting cable or chain before lifting the slab off the ground.
- Lift the slab vertically at a controlled speed to avoid swinging or sudden movements.
- Coordinate with the lifting team to communicate clearly during the lift, using hand signals or radios if necessary.
- Avoid lifting slabs in windy conditions to prevent swinging.
- Always have a spotter to guide the lift and watch for hazards.
- Move the slab carefully to the installation site, avoiding obstacles and uneven surfaces.
- Plan the route in advance, removing any obstacles.
- Use protective padding on walls and corners along the path to prevent accidental damage.
- Keep the slab balanced and supported evenly by the clamp.
- Use additional equipment like suction lifters or slab carts if necessary for horizontal movement.
- Lower the slab slowly onto the prepared substrate or adhesive bed.

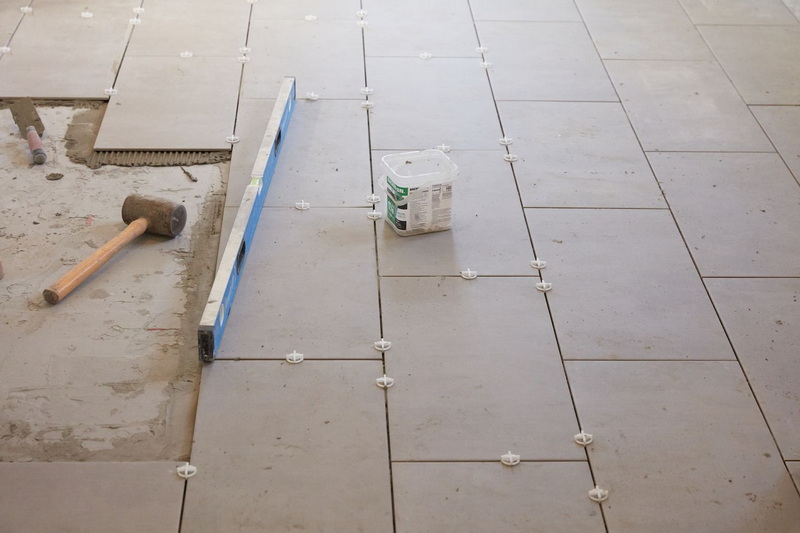

- Use spacers to maintain consistent gaps between slabs.
- Tap the slab gently with a rubber trowel or tile beater to remove air bubbles and ensure full adhesion.
- Use leveling wedges if needed to keep the slab flat and aligned.
- After placing the slab, inspect the alignment with adjacent slabs using a straightedge or laser level. Make adjustments before the adhesive sets.
- Once in place, release the clamp carefully without disturbing the slab.
- Always wear personal protective equipment (PPE) such as gloves, safety glasses, hard hats, steel-toe boots, and high-visibility clothing.
- Consider using hearing protection if working near loud machinery.
- Never lift more than one slab at a time with a clamp.
- Do not exceed the clamp's rated load capacity.
- Inspect clamps and lifting equipment daily before use.
- Use spotters during lifting and moving operations.
- Avoid sudden jerks or rapid movements when lifting.
- Keep hands and feet clear of the clamp jaws during operation.
- Store clamps in a clean, dry environment when not in use.
- Establish clear emergency procedures for slab drops or clamp failures and ensure all team members are trained.
- Suction Lifters: Useful for gripping smooth slab surfaces during installation. They come in various sizes and configurations, including single and multiple cup designs. Suction lifters can be used in conjunction with clamps for added security.
- A-Frames: For safe storage and transport of slabs. A-frames provide a safe and organized way to store slabs vertically, reducing the risk of damage during transport and on-site storage. They are often padded and equipped with straps for securing slabs.
- Rubber Bumpers: Protect slab edges during lifting and movement. Rubber bumpers absorb shocks and prevent chipping when slabs are moved or stored. They can be attached to clamps or placed on storage racks.
- Spacers and Leveling Wedges: Ensure proper alignment and flatness during installation. These small but essential tools ensure even spacing and level surfaces, which are critical for aesthetic and structural integrity.
When selecting a porcelain slab clamp, consider the following factors:
- Slab Thickness: Thicker slabs require clamps with higher load capacities and stronger gripping mechanisms.
- Surface Finish: Polished or delicate finishes need clamps with soft, non-abrasive pads to prevent surface damage.
- Weight Distribution: For very large slabs, double clamps or multiple clamps may be necessary to evenly distribute weight and reduce stress.
- Ease of Use: Hydraulic or quick-release clamps can save time and reduce physical strain during installation.
- Compatibility: Ensure the clamp is compatible with your lifting equipment, such as cranes or forklifts.
Solution: Always clean the contact points thoroughly and use clamps with high-friction rubber pads. Double clamps can also help stabilize the slab.
Solution: Use clamps with padded grips and add rubber bumpers along the slab edges. Handle slabs gently and avoid sudden movements.
Solution: Use additional equipment like slab carts or suction lifters to assist in horizontal movement. Plan the route carefully and clear obstacles.
Regular maintenance extends the life of your clamps and ensures safety:
- Clean clamps after each use to remove dust and debris.
- Inspect rubber pads for wear and replace them as needed.
- Lubricate moving parts according to manufacturer recommendations.
- Store clamps in a dry, protected area to prevent rust and corrosion.
- Schedule periodic professional inspections for hydraulic clamps.
Using a porcelain slab clamp is an indispensable part of safely and efficiently installing large porcelain slabs. Proper preparation, careful positioning, and secure clamping prevent damage to these delicate yet heavy materials. By following best practices for clamp use, lifting, and installation, installers can achieve flawless results while maintaining safety on the job site. Complementing clamps with additional tools like suction lifters and leveling wedges further enhances the installation quality. Always prioritize inspection, maintenance, and safety protocols to extend the lifespan of your tools and protect your investment in porcelain slab projects. Continuous learning and adaptation to new technologies and methods will keep installers at the forefront of their craft.
There are mainly single clamps and double clamps. Double clamps provide two gripping points for better weight distribution and are preferred for larger slabs. Single clamps can be used with added support backing. Additionally, specialized clamps exist for curved or irregular slabs, some featuring quick-release mechanisms for faster operation.
Use clamps with rubber or padded fittings to avoid direct metal contact. Regularly inspect and replace rubber pads, apply rubber bumpers along slab edges before lifting, and handle slabs gently during all stages of transport and installation.
No, clamps are designed to lift only one slab at a time regardless of size. Lifting multiple slabs increases the risk of breakage and accidents.
Inspect clamps daily before use for any damage, loose bolts, or worn rubber pads. Clean contact points, lubricate moving parts as recommended, and replace worn parts promptly. Store clamps in a dry, dust-free area to prevent rust and corrosion. Schedule periodic professional inspections for hydraulic clamps.
Wear comprehensive PPE including gloves, eye protection, hard hats, steel-toe boots, and high-visibility clothing. Always work with a team, communicate effectively, and have a spotter during lifting.
