Marble slabs are a popular choice for various architectural and design applications, from elegant countertops to luxurious flooring. When it comes to transporting these valuable materials, shipping containers play a crucial role. But how many bundles of marble slabs can actually fit in a container? Let's delve into this topic and explore the factors that influence the capacity of a shipping container for marble slabs.
Before we discuss the number of marble slab bundles that can fit in a container, it's essential to understand the standard dimensions of shipping containers. The most common container sizes used for transporting marble slabs are:
1. 20-foot container:
- External dimensions: 20' x 8' x 8'6" (length x width x height)
- Internal dimensions: 19'4" x 7'8" x 7'10"
2. 40-foot container:
- External dimensions: 40' x 8' x 8'6" (length x width x height)
- Internal dimensions: 39'5" x 7'8" x 7'10"
It's worth noting that high cube containers, which are one foot taller than standard containers, are also sometimes used for transporting marble slabs[1].
Several factors influence the number of marble slab bundles that can fit in a container:
1. Slab thickness
2. Bundle size
3. Weight restrictions
4. Packing method
Let's examine each of these factors in detail.
Marble slabs typically come in two popular thicknesses: 2 cm and 3 cm. The thickness of the slabs directly impacts the number of bundles that can fit in a container[1].
- For 2 cm thick slabs: Approximately 75 slabs can fit in a container, typically arranged in 7 bundles.
- For 3 cm thick slabs: About 50-52 slabs can fit in a container.
Marble slabs are usually bundled together for easier handling and transportation. The number of slabs per bundle can vary depending on the thickness:
- For 2 cm slabs: 8 to 11 slabs per bundle
- For 3 cm slabs: 5 to 7 slabs per bundle[1]
The weight of marble slabs is a critical factor in determining how many bundles can fit in a container. Different weight limitations apply depending on the transportation method and destination:
1. Standard US road weight limit: 19,900 kg (44,000 lb) using a tri-axle truck
2. Port weight limit: 27,000 kg
3. Rail/ramp weight limit: 21,500 kg[2]
These weight restrictions significantly impact the number of bundles that can be loaded into a container.

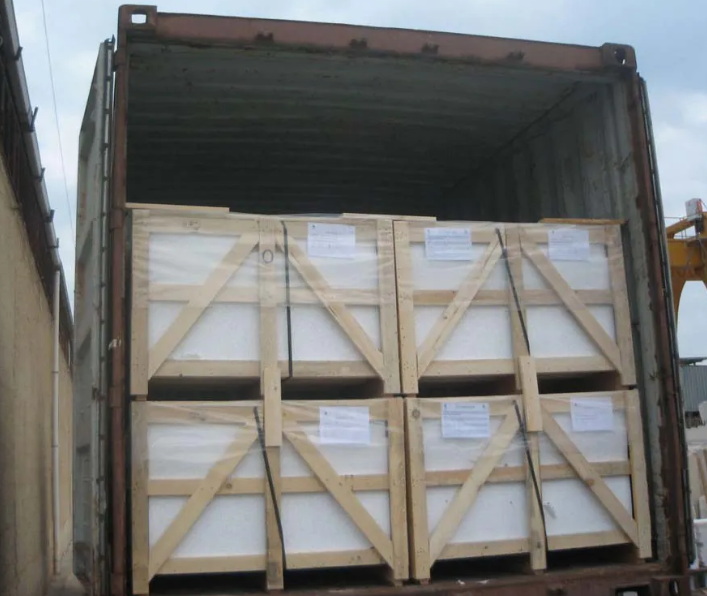

The method used to pack marble slabs into a container is crucial for both maximizing space and ensuring the safety of the materials during transport. Here are some key aspects of proper packing:
1. Wooden bundles/crates: Marble slabs are typically packed in fumigated wooden bundles or crates, secured with C-clamps[1].
2. Plastic sheet protection: A plastic sheet is placed between each slab to prevent friction during transit[3].
3. Tight compression: Slabs in the bundles are tightly compressed to minimize movement[3].
4. Secure fastening: Wooden bundles are firmly locked and fastened to each other and the container floor to prevent shifting during transport[3].
Based on the factors mentioned above, here's a general guideline for the number of marble slab bundles that can fit in a 20-foot container:
1. For 2 cm thick slabs:
- 6 to 7 bundles (approximately 38 to 42 slabs) with a weight allowance of 19,900 kg
- 7 to 8 bundles (approximately 42 to 45 slabs) with a weight allowance of 21,500 kg
- Up to 8 bundles (maximum capacity of a 20-foot container)
2. For 3 cm thick slabs:
- 6 to 7 bundles (approximately 30 to 35 slabs) with a weight allowance of 19,900 kg
- 7 to 8 bundles (approximately 35 to 40 slabs) with a weight allowance of 21,500 kg
- Up to 8 bundles (maximum capacity of a 20-foot container)[2]
It's important to note that for granite cargos, only 20-foot containers are typically used, not 40-foot containers[2].

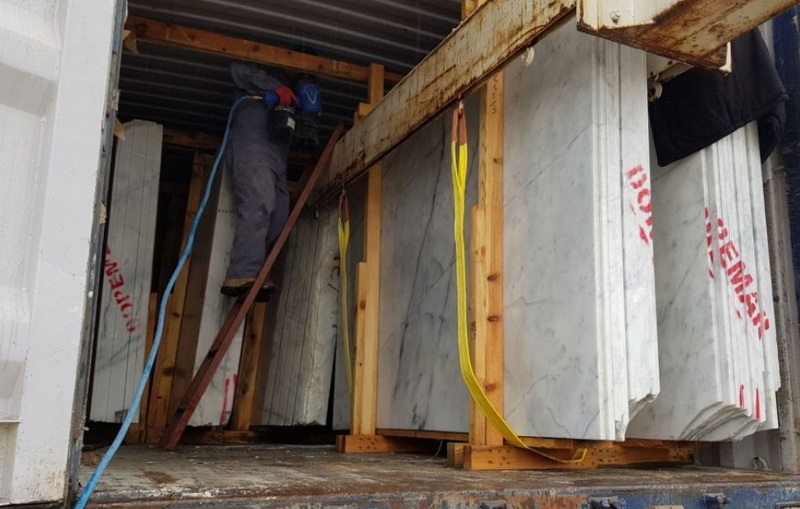

The process of loading marble slabs into a container requires specialized equipment and careful handling. Here's a general overview of the loading process:
1. Preparation: Ensure the container floor is clean and dry. Place wooden bearers on the floor to distribute the weight evenly[6].

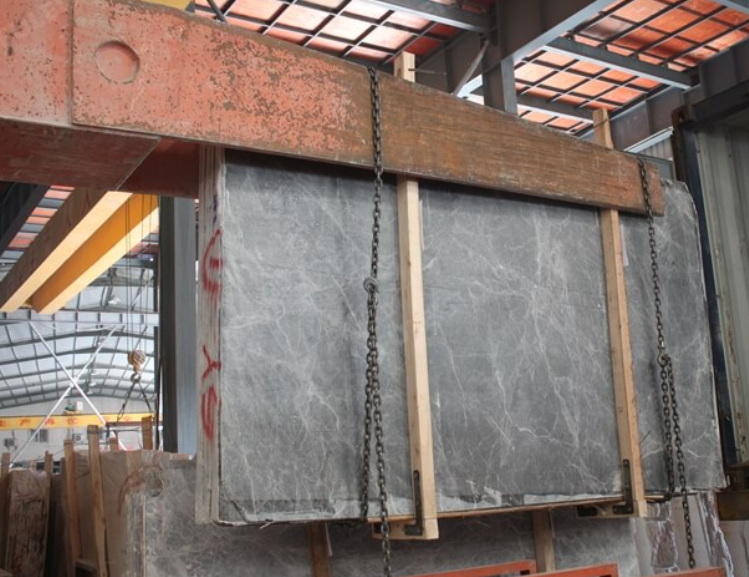

2. Crane lifting: Use a crane to lift the marble slab bundles and carefully lower them into the container[5].
3. Positioning: Arrange the bundles in the container, typically with four bundles in the back and four in the front for a 20-foot container[2].
4. Securing: Fasten the bundles to each other and the container floor using appropriate securing methods[3].
5. Final check: Inspect the load to ensure all bundles are properly secured and there's no risk of movement during transit.
While shipping containers are the most common method for transporting marble slabs, there are alternative options:
1. Flatbed trucks: For shorter distances or when immediate delivery is required, flatbed trucks can be used. They can typically carry loads up to 21,300 kg (47,000 lb)[2].
2. Open-top containers: These containers allow for easier loading and unloading of marble slabs using a crane[6].
3. Flat racks: These are platforms with collapsible ends that can be used for oversized marble blocks or slabs[6].
Transporting marble slabs requires strict adherence to safety protocols to prevent damage and ensure the well-being of workers. Some key safety considerations include:
1. Proper crating and packaging to protect the slabs from damage
2. Even weight distribution within the container
3. Secure fastening of bundles to prevent movement during transit
4. Use of appropriate handling equipment, such as cranes and forklifts
5. Regular inspection of straps, wooden bearers, and other securing materials
The transportation of marble slabs, like any heavy freight, has environmental implications. To minimize the environmental impact, consider the following:
1. Optimize loading to maximize container capacity and reduce the number of trips required
2. Use eco-friendly packaging materials where possible
3. Choose the most efficient transportation routes
4. Consider combining shipments with other goods to improve overall efficiency
The number of marble slab bundles that can fit in a container depends on various factors, including slab thickness, bundle size, weight restrictions, and packing methods. For a 20-foot container, the capacity typically ranges from 6 to 8 bundles, with the exact number depending on the specific circumstances.
Proper planning, packing, and loading techniques are crucial to maximize the container's capacity while ensuring the safe transportation of these valuable materials. By understanding the factors that influence container capacity and following best practices in marble slab shipping, businesses can optimize their logistics operations and deliver high-quality marble products to their destinations efficiently and safely.
The weight of a marble slab can vary depending on its size and thickness. On average:
- A 2 cm thick marble slab weighs approximately 14 kg per square meter (3 lbs per square foot)
- A 3 cm thick marble slab weighs about 21 kg per square meter (4.5 lbs per square foot)
Yes, marble slabs can be shipped in regular dry containers, but certain precautions must be taken:
- The weight must be evenly distributed across the container floor using wooden bearers
- Slabs must be properly crated and should not directly touch the container floor
- Only steel containers should be used for marble slab transportation[6]
The maximum weight capacity for a 20-foot container when shipping marble slabs depends on the transportation method and destination:
- For standard US road transport: 19,900 kg (44,000 lb)
- For port delivery: Up to 27,000 kg
- For rail/ramp delivery: Up to 21,500 kg[2]
Marble slabs are protected during shipping through several methods:
- Packing in fumigated wooden bundles or crates
- Placing plastic sheets between each slab to prevent friction
- Using C-clamps to secure the slabs within the bundles
- Tightly compressing the slabs in the bundles
- Securely fastening the bundles to each other and the container floor[1][3]
Flatbed trucks offer several advantages for marble slab transportation:
- Easier loading and unloading due to the open design
- Suitable for shorter distances and immediate deliveries
- Can typically carry loads up to 21,300 kg (47,000 lb)
- Allows for more flexible loading options compared to enclosed containers
- Provides better accessibility for crane operations during loading and unloading[2][7]
