Porcelain slab waterjet cutting has transformed the world of architectural surfaces, enabling designers, fabricators, and homeowners to achieve intricate, seamless, and highly customized installations. As the demand for large-format porcelain slabs grows in kitchens, bathrooms, and commercial spaces, the need for precise, chip-free, and complex cuts becomes paramount. Waterjet technology, with its ability to deliver high-precision results, stands at the forefront of this evolution. This comprehensive article explores the precision of waterjet cutting for porcelain slab designs, delving into the technology, process, benefits, challenges, and real-world applications, while providing a visual and practical journey through the world of porcelain slab waterjet cutting.
xx
Waterjet cutting is a non-thermal, high-precision machining process that uses a high-pressure stream of water, often mixed with abrasive particles, to cut through a wide range of materials. Unlike traditional cutting methods, waterjet cutting does not generate heat, which means it preserves the integrity and appearance of the material being cut.
- High-Pressure Pump: Generates water pressure up to 90,000 psi.
- Abrasive Delivery System: Feeds garnet or other abrasives into the water stream for cutting hard materials.
- Cutting Head and Nozzle: Focuses the water-abrasive mixture into a fine, powerful jet.
- CNC Control System: Ensures precise, programmable movement for intricate designs.
- Cutting Table: Supports the porcelain slab during the cutting process.
- Ultra-Fine Jet: The water-abrasive stream can be as thin as 0.02 inches, allowing for extremely detailed cuts.
- CNC Control: Computerized controls enable repeatable, intricate patterns and shapes.
- Cold Cutting: No heat-affected zones, so the porcelain slab retains its original strength and finish.
- Minimal Kerf: The narrow cut width maximizes material usage and allows for tight nesting of parts.
Waterjet cutting can achieve tolerances as tight as ±0.003 inches, making it suitable for applications where accuracy is paramount.
- Durability: Highly resistant to scratches, stains, and heat.
- Large Format: Available in sizes up to 160x320 cm, ideal for seamless surfaces.
- Aesthetic Versatility: Mimics natural stone, concrete, or wood with a variety of finishes.
- Low Maintenance: Non-porous and easy to clean.
- Brittle Nature: Porcelain is hard but brittle; traditional cutting methods can cause chipping or cracking.
- Complex Designs: Waterjet enables curves, inlays, and detailed patterns that are impossible with saws.
- Edge Quality: Produces smooth, chip-free edges without secondary finishing.
1. Design and Programming
- CAD software is used to create the desired pattern or shape.
- The design is converted into machine code for the CNC system.
2. Material Preparation
- The porcelain slab is placed on the cutting table, supported to prevent movement or vibration.
3. Cutting Parameters Setup
- Water pressure, abrasive flow rate, and cutting speed are set based on slab thickness and design complexity.
4. Cutting Execution
- The waterjet head follows the programmed path, cutting through the porcelain with high precision.
5. Quality Inspection
- The finished piece is checked for edge quality, dimensional accuracy, and surface finish.
- 5-Axis Waterjet Cutting: Allows for bevels, miters, and complex 3D shapes, expanding design possibilities.
- Micro Waterjet Cutting: Used for ultra-fine details and miniature inlays, especially in artistic applications.
- Achieves intricate cuts, tight radii, and detailed inlays.
- Perfect for custom medallions, logos, and artistic patterns.
- The cold cutting process eliminates chipping and micro-cracking.
- No need for secondary edge finishing.
- Cuts straight lines, curves, holes, and complex shapes.
- Suitable for both thin and thick porcelain slabs.
- Minimal kerf width reduces waste.
- Allows for tight nesting of parts, maximizing slab yield.
- Maintains the original color and strength of the porcelain.
- No risk of warping or discoloration.
- CNC control ensures consistent results across multiple pieces.
- Ideal for both one-off custom jobs and high-volume production.
- Waterjet cutting does not rely on physical blades, reducing tool wear and maintenance costs.
- Brittleness: Porcelain can crack if not properly supported.
- Edge Chipping: Incorrect parameters can cause minor chipping.
- Complexity: Intricate designs require careful programming and setup.
- Water Absorption: Some porcelain slabs may absorb water, requiring drying after cutting.
- Proper Support: Use of foam or waterjet bricks to support the slab during cutting.
- Optimized Parameters: Adjusting water pressure, abrasive rate, and cutting speed for each job.
- Experienced Operators: Skilled technicians ensure the best results.
- Post-Cutting Care: Drying and cleaning slabs to prevent water spots or residue.
- Seamless joints and custom sink cutouts.
- Waterjet allows for precise fitting around appliances and fixtures.
- Intricate edge profiles and integrated sink designs.

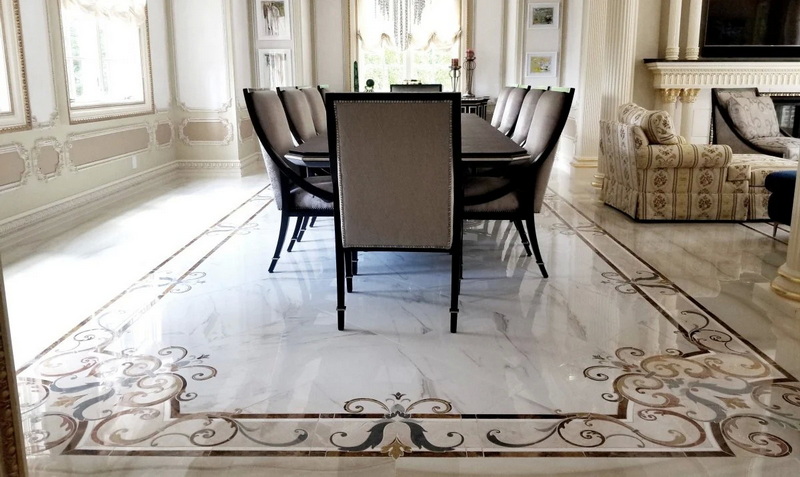

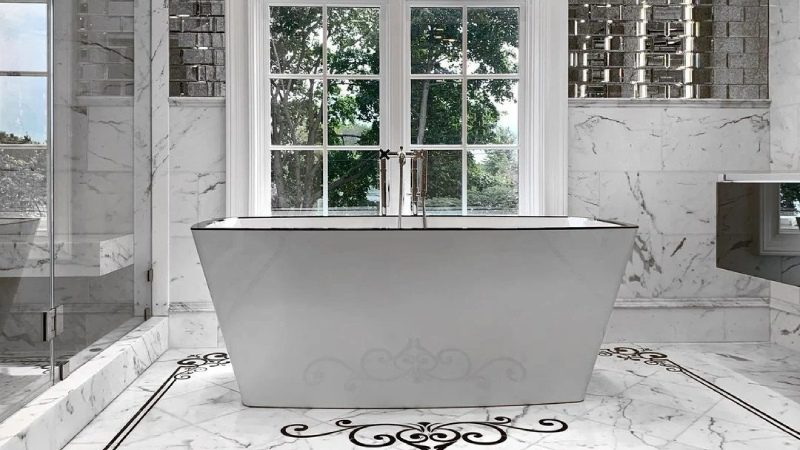

- Custom inlays and decorative borders.
- Large-format tiles with custom patterns.
- Waterjet enables book-matching and vein-matching for natural stone looks.

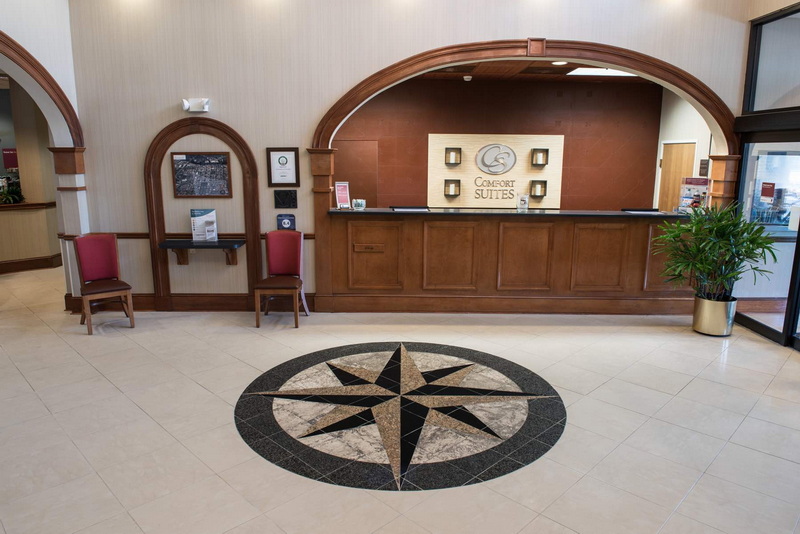

- Company logos, medallions, and signage in porcelain.
- Durable, high-traffic surfaces with custom branding.
- Mosaic murals, medallions, and decorative panels.
- Unlimited creative possibilities with precise, repeatable cuts.
- Waterjet-cut porcelain is used for outdoor kitchens, pool surrounds, and façade cladding.
- The precision allows for seamless transitions and custom shapes in challenging environments.
- 3D Scanning and Modeling: Allows for perfect fitting of slabs in irregular spaces.
- Augmented Reality (AR): Designers can visualize waterjet-cut patterns before fabrication.
- Some advanced machines combine waterjet with laser or mechanical cutting for even greater flexibility.
- The use of recycled or natural abrasives reduces environmental impact.
- Modern waterjet systems recycle water, minimizing consumption.
- Filtration systems remove abrasives and contaminants, allowing for safe disposal or reuse.
- The minimal kerf and precise nesting reduce waste, making porcelain slab waterjet cutting a sustainable choice.
- While high-pressure pumps require energy, the overall process is efficient compared to other cutting methods that generate heat and require additional finishing.
- Waterjet-cut edges are smooth and non-porous, making them easy to clean with mild detergents.
- Avoid harsh chemicals that could damage the finish.
- Most porcelain slabs do not require sealing, but in high-traffic or wet areas, a protective sealant can enhance longevity.
- Minor chips or cracks can be repaired with color-matched epoxy.
- For major damage, individual pieces can be replaced thanks to the precision of waterjet cutting.
A modern waterjet cutting machine with a porcelain slab ready for processing.
A close-up of a porcelain slab with a complex inlay pattern, demonstrating the precision of waterjet technology.
Side-by-side images of waterjet-cut and saw-cut porcelain edges, highlighting the smoothness and lack of chipping with waterjet.
A porcelain countertop with a perfectly cut sink opening, achieved through waterjet cutting.

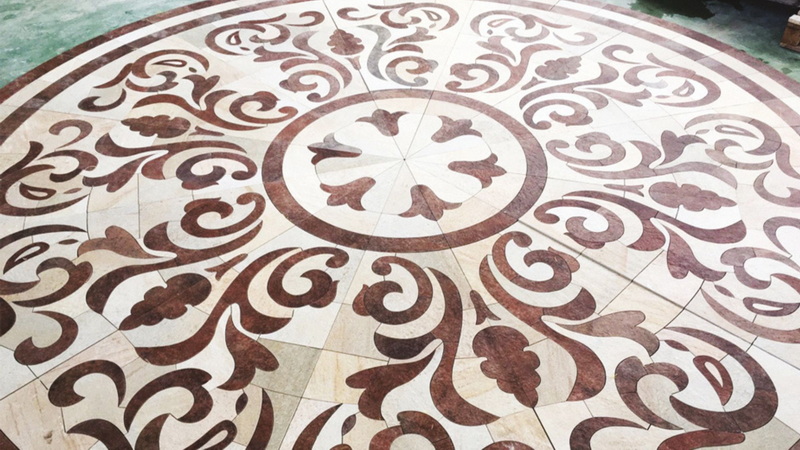

A detailed mosaic created from multiple waterjet-cut porcelain pieces, showcasing the technology's creative potential.
Watch a CNC waterjet in action, cutting porcelain benchtops with precision and speed.
- CNC Waterjet cutting & Porcelain Benchtops by United Stone Melbourne
A step-by-step explanation of how waterjet cutting works for porcelain slabs.
- How Waterjet Cutting Works: Cutting Porcelain with Precision
See a comparison of cutting speeds and edge quality at different pressures on porcelain samples.
- KMT Waterjet Cutting Dekton Porcelain Test
Explore advanced 5-axis waterjet cutting for complex porcelain slab shapes and applications.
- Hoyun 5 axis water jet cutting, Sintered stone, ceramic, tile, porcelain cutting machine
Porcelain slab waterjet cutting stands as the gold standard for precision, versatility, and quality in modern tile and surface fabrication. Its ability to deliver intricate, chip-free, and repeatable cuts on large-format porcelain slabs has opened new horizons for designers and fabricators. Whether for residential kitchens, commercial spaces, or artistic installations, waterjet technology ensures that every project meets the highest standards of craftsmanship and creativity. As the demand for custom, seamless, and durable porcelain surfaces continues to grow, waterjet cutting will remain an essential tool for achieving the most ambitious design visions.
Waterjet cutting uses a high-pressure stream of water mixed with abrasive particles, controlled by CNC software, to achieve extremely fine and accurate cuts. Unlike saws or blades, it does not cause chipping, cracking, or heat damage, resulting in smooth, precise edges and the ability to create complex shapes.
Yes, waterjet machines are designed to accommodate large-format porcelain slabs, often up to 160x320 cm and various thicknesses. The process can be adjusted for slab thickness, ensuring clean cuts without compromising the integrity of the material.
Absolutely. Waterjet cutting excels at producing custom shapes, curves, inlays, and detailed patterns that are difficult or impossible with traditional cutting tools. This makes it ideal for artistic installations, logos, and decorative elements.
Because waterjet cutting is a cold process, it does not introduce heat or stress into the porcelain. This preserves the slab's original strength, color, and finish, ensuring long-lasting durability and performance.
Key factors include proper slab support, optimized cutting parameters (pressure, speed, abrasive rate), and experienced operators. Using high-quality water and maintaining the equipment also contribute to consistent, high-precision results.
