● Can You Install Porcelain Tiles Over Concrete?
● Preparation: The Key to a Lasting Tile Floor
● FAQ
>> 1. Do I need to use an anti-fracture membrane?
>> 2. Can I immediately tile a new concrete floor?
>> 3. What type of thin-set mortar should I use for porcelain tiles?
>> 4. How do I ensure my tiles are level during installation?
>> 5. What is back buttering and why is it recommended?
Porcelain tiles offer a durable and aesthetically pleasing surface for both indoor and outdoor spaces. Installing them over a concrete slab is a common and effective way to achieve a long-lasting, beautiful floor. Whether you're renovating your kitchen, upgrading your patio, or creating a stylish walkway, this comprehensive guide will provide you with the knowledge and step-by-step instructions to lay porcelain tile on a concrete slab like a pro.
Yes! Concrete provides a solid and stable base for porcelain tiles[4][8]. However, successful installation requires careful preparation and the right techniques. Concrete slabs are frequently used on the ground floors of properties, making them a common substrate for tiling projects[4]. Proper preparation ensures the tiles adhere correctly, preventing future issues like cracking or lifting[8].
Proper preparation is crucial for a successful tile installation. This involves cleaning, leveling, and priming the concrete surface[8].
Tools and Materials You'll Need:
- Porcelain Tiles
- Thin-set Mortar (modified thin-set recommended)[6][11]
- Grout[2]
- Grout Sealer[2]
- Concrete Patching Compound (if needed)[6]
- Primer[6]
- Pressure Washer or Industrial Cleaning Brush[2]
- Mixing Bucket[1]
- Electric Drill with Paddle Mixer[1]
- Trowel ( notched)[2][10]
- Rubber Mallet[1]
- Spacers[2][10]
- Spirit Level[1][8]
- Utility Knife or Trowel[2]
- Damp Sponge[2]
- Safety Glasses and Mask[1]
Step 1: Clean and Prepare the Concrete Slab
- Remove Debris: Begin by removing any dirt, dust, or debris from the concrete surface. Use a broom, vacuum, or pressure washer to ensure a clean surface[2][6].
- Address Stains and Grime: For heavily soiled areas, use a specialized cleaner to remove stubborn stains and grime[2][6].
- Check for Moisture: Ensure the concrete slab is sufficiently dry[4]. New concrete should cure for at least 28 days before tiling to prevent moisture issues[8]. A digital hygrometer can be used to measure relative humidity, which should be 75% or lower before tiling[4].
Step 2: Level the Surface
- Inspect for Unevenness: Use a spirit level to check for any unevenness in the concrete[8].
- Apply Patching Compound: Fill any low spots or cracks with a concrete patching compound, following the manufacturer's instructions[6]. Allow the compound to dry completely before proceeding[6].
- Self-Leveling Compounds: For larger uneven areas, consider using a self-leveling compound to create a perfectly smooth surface[8].
Step 3: Apply Primer
- Primer Application: Apply a primer that is compatible with both the concrete and the adhesive you'll be using[8].
- Even Coverage: Use a roller or brush to apply the primer, ensuring even coverage across the entire floor[8].
- Drying Time: Allow the primer to dry thoroughly, following the manufacturer's instructions[8].
Careful layout planning prevents awkward cuts and ensures a balanced appearance[1].
- Find the Center: Measure the length and width of the area and mark the center point[1].
- Dry Run: Lay out the tiles without adhesive to visualize the final layout and make any necessary adjustments[1][2]. Account for breakages when ordering tiles[2].
- Consider Obstacles: Plan around any obstacles, such as pipes or corners, ensuring clean and symmetrical cuts[1].
With the concrete prepared and the layout planned, you're ready to begin laying the porcelain tiles[2].
Step 1: Mix the Thin-Set Mortar
- Proper Mixing: Mix the thin-set mortar with water according to the manufacturer's instructions[1].
- Consistency: Add the mortar to the water, not the other way around, to achieve the desired consistency[10].

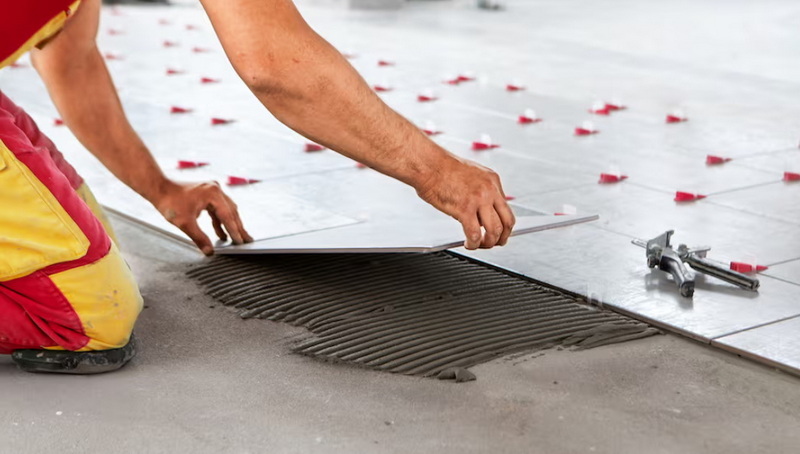

Step 2: Apply Mortar to the Floor
- Trowel Application: Use the flat side of the trowel to spread a layer of thin-set mortar on the concrete floor[2][10].
- Comb the Mortar: Comb the mortar using the notched side of the trowel to create ridges for better adhesion[10]. Only apply mortar for one tile at a time to prevent it from drying out[10].
Step 3: Back Buttering (Optional but Recommended)
- Apply to Tile Back: For large tiles, apply a thin layer of mortar to the back of the tile[10]. This technique, known as back buttering, ensures full coverage and enhances the bond[10].

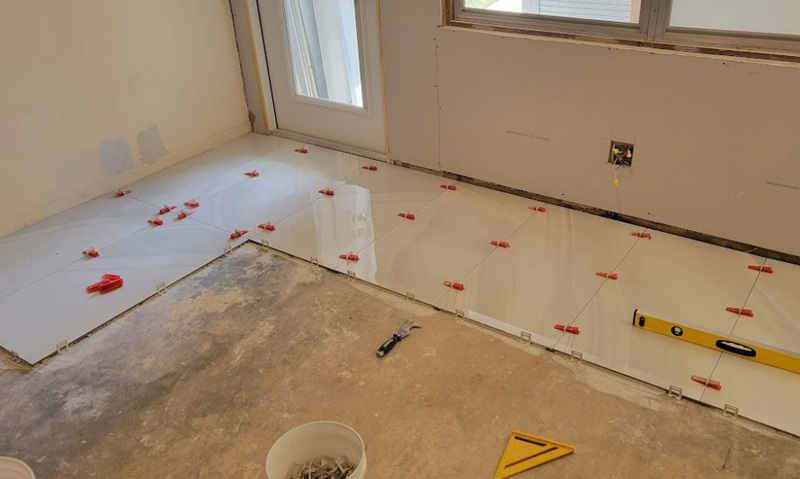

Step 4: Lay the Tile
- Careful Placement: Carefully place the first tile on the thin-set mortar in its predetermined position[1][10].
- Use Spacers: Use spacers on all sides of the tile to maintain consistent grout lines[2][10].
- Gentle Tapping: Gently tap the tile into place with a rubber mallet to ensure proper adhesion[1].
- Check Level: Use a spirit level to ensure the tile is level with the surrounding tiles[1].
Step 5: Continue Laying Tiles
- Consistent Process: Repeat the above steps, working outwards from the starting point[10].
- Cutting Tiles: Use a tile cutter or wet saw to make precise cuts for edges and around obstacles[10].
- Regular Checks: Regularly check the level and alignment of the tiles as you work[1].
After the thin-set mortar has cured (usually after 24-48 hours), you can proceed with grouting[2].
Step 1: Apply Grout
- Mix Grout: Mix the grout according to the manufacturer's instructions[2].
- Apply Evenly: Use a rubber float to spread the grout evenly over the tiles, filling the spaces between them[11].
- Remove Excess: Remove any excess grout with a damp sponge before it dries[2][11].
Step 2: Sealing the Grout
- Cure Time: Allow the grout to cure for the time recommended by the manufacturer (typically two weeks)[2].
- Apply Sealer: Apply a water-resistant grout sealer to protect against stains and moisture[2][6].
- Clean the Tiles: After the grout has been sealed, clean the tiles thoroughly to remove any remaining residue[2].
- Inspect the Installation: Inspect the finished installation for any imperfections and make any necessary touch-ups[2].
Laying porcelain tile on a concrete slab is a rewarding DIY project that can significantly enhance the look and value of your property. By following these steps and taking the time to prepare properly, you can achieve a professional-looking result that will last for years to come. Remember, patience and attention to detail are key to a successful tile installation.

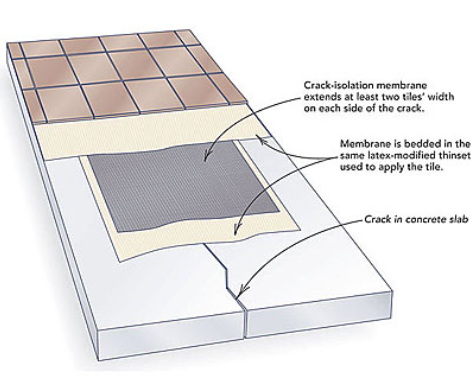

While not always necessary, an anti-fracture membrane can provide an extra layer of protection against cracks transferring from the concrete to your tiles[8].
No, patience is key here. Allow new concrete to cure for at least 28 days before tiling to prevent moisture issues[8].
A modified thin-set mortar is generally recommended for porcelain tiles to achieve an optimum bond between the tile and concrete floor[6][11].
Use a spirit level to check the level of each tile as you lay it and gently tap it into place with a rubber mallet to ensure proper adhesion and alignment[1][8].
Back buttering is applying a thin layer of mortar to the back of the tile before setting it. This technique ensures full coverage and enhances the bond, especially for larger tiles[10].
