● Introduction to Porcelain Tiles and Concrete Slabs
>> Benefits of Porcelain Tiles Over Concrete
>> Inspect and Clean the Concrete
>> Dry Run
>> Apply Adhesive and Lay Tiles
>> Cut Tiles for Edges and Corners
● FAQs
>> 1. Can I Install Porcelain Tiles Directly on Concrete Without Preparation?
>> 2. How Long Should I Wait Before Grouting Newly Laid Tiles?
>> 3. Do Porcelain Tiles Require Sealing After Installation?
>> 4. Can Porcelain Tiles Be Installed Over a Heated Concrete Slab?
>> 5. How Do I Handle Uneven Areas in My Concrete Slab?
Installing porcelain tile over a concrete slab is a popular choice for both indoor and outdoor spaces due to its durability and aesthetic appeal. However, the success of such a project heavily depends on the proper preparation of the concrete slab. In this article, we will guide you through the essential steps to prepare your concrete slab for a successful porcelain tile installation.
Porcelain tiles are made from a type of ceramic material that is denser and less porous than traditional ceramic tiles. This makes them highly resistant to water, stains, and scratches, making them ideal for both indoor and outdoor use. Concrete slabs, on the other hand, provide a solid and stable base for tile installation, but they require thorough preparation to ensure a long-lasting bond between the tile and the slab.
- Durability: Porcelain tiles can withstand heavy foot traffic and harsh weather conditions.
- Low Maintenance: They are easy to clean and maintain, requiring only occasional sweeping and mopping.
- Aesthetic Versatility: Available in numerous styles and designs, porcelain tiles can mimic natural stone, wood, or other materials.
Preparing the concrete slab is crucial for a successful tile installation. Here are the steps you need to follow:
Ensure the concrete is free from cracks, dirt, and debris. Clean the surface thoroughly using a vacuum and a damp mop to remove any dust or dirt.
If there are cracks or uneven areas, use a self-leveling compound to create a smooth surface.
Excessive moisture in the concrete can lead to tile failure. Conduct a moisture test using a moisture meter or by taping a plastic sheet to the concrete and checking for condensation after 24 hours. If moisture is present, you may need to apply a moisture barrier before tiling.
Priming the concrete slab is an essential step that should not be skipped. It helps to improve adhesion between the concrete and the tile adhesive. Use a suitable primer, such as Prime Plus, diluted in a 1:3 ratio with water.
Before you start laying tiles, it's important to plan your layout carefully. This will help you achieve a balanced look and minimize the need for cutting tiles.
Measure the length and width of your room to find the center point. This will be your starting point for laying tiles.
Perform a dry run by laying out your tiles without adhesive. This allows you to adjust your layout and ensure you're happy with the pattern before committing to it.
Once your concrete slab is prepared and your layout is planned, you can begin installing the porcelain tiles.
Choose a high-quality adhesive suitable for porcelain tiles and concrete substrates. Mix the adhesive according to the manufacturer's instructions, typically using cold, clean water and an electric drill with a paddle mixer attachment.

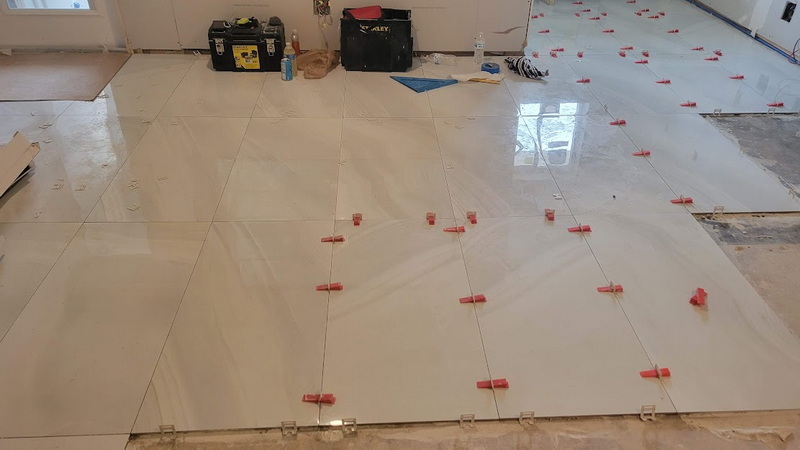

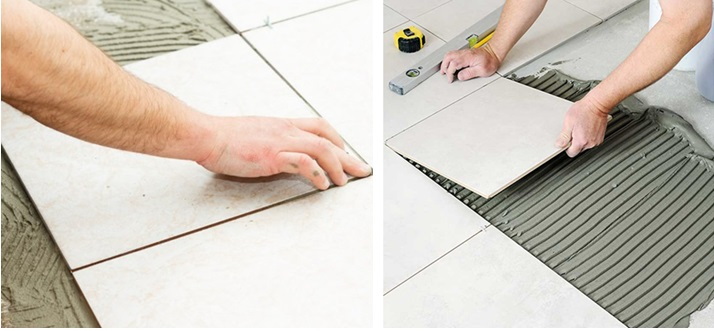

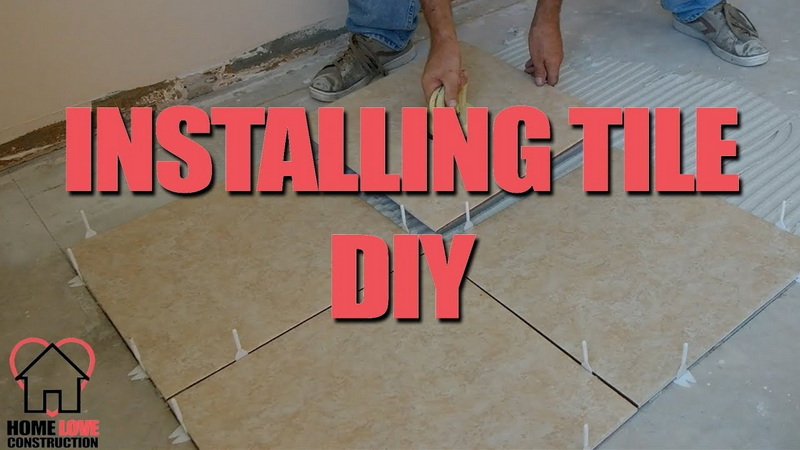

Using a notched trowel, spread the adhesive evenly over a small area of the concrete slab. Work in manageable sections to ensure the adhesive doesn't dry before you can place the tiles. Start laying tiles from your center point, pressing each tile firmly into the adhesive. Use spacers to maintain consistent gaps between tiles.
For edges and corners, you may need to cut tiles. Use a wet saw or tile cutter to achieve clean, precise cuts. Always wear safety goggles and gloves when cutting tiles.
After the adhesive has fully set, it's time to apply grout to fill the gaps between tiles.
Select a grout that's suitable for the width of your tile gaps and the location of your installation (e.g., indoor or outdoor). Mix the grout according to the manufacturer's instructions. Using a rubber float, spread the grout diagonally across the tile joints, ensuring they're fully filled.
Before the grout dries, use a damp sponge to remove excess grout from the tile surfaces. Be careful not to remove grout from the joints.
Once the grout has cured (usually after 72 hours), apply a grout sealer to protect it from stains and moisture.
When installing porcelain tiles over a concrete slab outdoors, consider the following:
- Drainage: Ensure the area drains properly to prevent water accumulation. A slight slope away from buildings is recommended.
- Weather Resistance: Use materials that are resistant to extreme weather conditions.
- Expansion Joints: For larger installations, include expansion joints to accommodate thermal expansion and prevent cracking.
To keep your porcelain tile floor looking its best:
- Regular Cleaning: Sweep or vacuum regularly to remove dirt and debris. Use a pH-neutral cleaner for more thorough cleaning.
- Avoid Harsh Chemicals: Avoid using harsh cleaning chemicals that could damage the grout or tile surface.
- Prompt Spill Cleanup: Address any spills promptly to prevent staining.
Installing porcelain tiles over a concrete slab is a rewarding project that can dramatically improve the look and functionality of your space. By following these steps and taking the time to properly prepare, plan, and execute the installation, you can achieve professional-looking results that will last for years to come.
No, it is not recommended to install porcelain tiles directly on concrete without proper preparation. The concrete must be clean, level, and structurally sound to ensure a successful installation.
You should wait until the tile adhesive has fully set before grouting. This typically takes 24 to 48 hours, but always check the manufacturer's instructions for specific timing.
Most porcelain tiles do not require sealing as they are naturally dense and non-porous. However, if you're using unglazed porcelain tiles or if you want extra protection, you can apply a penetrating sealer.
Yes, porcelain tiles can be installed over a heated concrete slab. However, you'll need to use a flexible adhesive that can withstand temperature changes, and ensure the heating system has been run through a complete heating cycle before tiling.
For minor unevenness, you can use a self-leveling compound before tiling. For outdoor installations or more significant unevenness, products like BAL Level Out can be used to create a level surface.
