● Introduction to Porcelain Slab Cutting
● Understanding Blade Types for Porcelain
>> Turbo Blades
● Turbo Blades: Design and Advantages
● Continuous Rim Blades: Precision and Finish
● Practical Comparison: Turbo vs. Continuous Rim for Porcelain
● Choosing the Right Porcelain Slab Cutting Disc
● Best Practices for Cutting Porcelain Slabs
>> Video : Turbo Blade in Action
● FAQ
>> 1. What is the best blade for cutting porcelain slabs?
>> 2. How do I prevent chipping when cutting porcelain slabs?
>> 3. Can I use a turbo blade for both straight and curved cuts?
>> 4. Is it safe to dry cut porcelain slabs with a turbo blade?
>> 5. How do I choose the right porcelain slab cutting disc for my project?
Porcelain slabs have become a staple in modern construction and interior design, prized for their durability, low porosity, and elegant finish. However, their dense and brittle nature makes cutting them a technical challenge. Choosing the right porcelain slab cutting disc is crucial for achieving clean, chip-free edges, especially on high-value installations. Among the many blade types available, turbo blades are often recommended for their speed and versatility. But are turbo blades truly better for porcelain slab cutting? This comprehensive guide explores the science, practicalities, and real-world performance of turbo blades versus other options.
Porcelain slabs are engineered from refined clay and minerals, fired at extremely high temperatures to create a surface that is both hard and aesthetically pleasing. Their popularity in countertops, flooring, and wall applications is matched only by the difficulty in working with them—especially when it comes to cutting.
The right blade selection is critical. A poor choice can result in chipped edges, excessive wear, or even slab breakage. The two most common blade types for porcelain are turbo blades and continuous rim blades, both typically diamond-tipped for maximum hardness and longevity.
Turbo blades feature a serrated, notched, or "turbo" rim. The rim design increases airflow, which helps cool the blade and remove debris during cutting. This makes turbo blades suitable for both dry and wet cutting.
Key features:
- Fast cutting speed
- Can be used dry or wet
- Aggressive material removal
- Good cooling due to rim design
Continuous rim blades have a smooth, unbroken edge and are typically used with water to prevent overheating. They are engineered for precision and a clean finish, making them popular for delicate materials.
Key features:
- Smoothest finish, minimal chipping
- Primarily used wet
- Slower cutting speed
- Less aggressive material removal
Segmented blades are not commonly used for porcelain, as their aggressive design is better suited to concrete and masonry. They tend to chip brittle materials like porcelain.
Turbo blades are specifically engineered for cutting hard materials, including porcelain slabs. The notched rim allows for a faster cut by reducing friction and increasing airflow, which helps cool the blade during operation. Many turbo blades are thin, which further reduces resistance and allows for precise cuts in dense materials.
Advantages of Turbo Blades for Porcelain:
- Speed: Turbo blades cut faster than continuous rim blades, making them ideal for large projects or when time is critical[4][10][17].
- Versatility: They can be used for both straight and curved cuts, as well as dry or wet applications[2][11].
- Cooling Efficiency: The turbo rim design dissipates heat effectively, reducing the risk of blade warping or porcelain cracking[2][17].
- Aggressive Cutting: Turbo blades excel at slicing through dense, hard porcelain slabs, especially when equipped with a high-quality diamond matrix[17][18].
Potential Drawbacks:
- Chipping: Turbo blades, especially lower-quality ones, may produce more edge chipping compared to continuous rim blades[2][10].
- Finish Quality: While fast, the finish may not be as smooth as that achieved with a continuous rim blade[2][10].
Continuous rim blades are renowned for their ability to deliver the cleanest, smoothest cuts on porcelain slabs. Their unbroken edge, combined with water cooling, minimizes vibration and chipping.
Advantages:
- Superior Finish: Delivers the smoothest, chip-free edges, ideal for visible cuts and high-end installations[2][4].
- Reduced Chipping: The continuous rim and wet cutting reduce the risk of micro-fractures along the cut edge[2][16].
- Ideal for Intricate Work: Best for detailed, precision cuts where appearance is paramount[2][4].
Potential Drawbacks:
- Slower Cutting: The process is slower compared to turbo blades, which can be a disadvantage for large-scale projects[2][4].
- Wet Use Required: Most continuous rim blades require water cooling, which may not be practical on all job sites[2][4].
| Feature | Turbo Blade | Continuous Rim Blade |
|---|---|---|
| Cutting Speed | Fast | Moderate to Slow |
| Finish Quality | Good, but may chip more | Excellent, minimal chipping |
| Cooling | Effective (dry or wet) | Requires water for best results |
| Versatility | Straight and curved cuts, dry or wet | Mostly straight cuts, wet only |
| Best Use Case | Large, fast cuts; site work | Precision, visible edges, fine finish |
| Chipping Risk | Moderate (depends on blade quality) | Low |
| Tool Compatibility | Angle grinders, tile saws | Wet tile saws, bridge saws |
Expert Insight:
Turbo blades are the go-to for contractors who need to work quickly and efficiently, especially in environments where water cooling is impractical. However, for the highest quality finish—such as exposed countertop edges—a continuous rim blade, used wet, is often preferred[2][4][5][10][17].
Selecting the ideal porcelain slab cutting disc depends on several factors:
- Project Scale: For large projects, speed is critical—turbo blades are advantageous[10][17].
- Edge Quality: For exposed or decorative edges, continuous rim blades may be worth the slower pace[2][4].
- Cut Type: Turbo blades are more versatile for both straight and curved cuts[2][11][13].
- Job Site Conditions: If water is unavailable, a high-quality turbo blade designed for dry cutting is essential[2][17].
- Blade Quality: Not all turbo blades are equal—premium blades with fine diamond grits and reinforced rims produce cleaner cuts with less chipping[12][18].
Popular Turbo Blade Examples:
- Rubi TCR Turbo Porcelain Tile Cutting Diamond Blade: Favored for fine dry cutting of porcelain tiles with high-quality finishes[5].
- Q-Drive Turbo Cutter Blade: Designed for dry cutting dense porcelain, offering speed and clean cuts with minimal chipping[17].
- Bosch Specialized Turbo Rim Diamond Blades: Engineered for faster cutting and longer life, especially on porcelain[18].
1. Mark the Cut Line Clearly: Use a pencil or wax marker and a straightedge for accuracy[16].
2. Secure the Slab: Clamp or use a non-slip mat to prevent movement during cutting[14].
3. Choose the Right Blade: Use a high-quality turbo or continuous rim porcelain slab cutting disc suited for your application[10][12].
4. Cut Slowly and Steadily: Let the blade do the work; forcing the cut increases chipping risk[9][16].
5. Cool the Blade: Even dry-rated turbo blades benefit from occasional water cooling to extend blade life and improve cut quality[2][11].
6. Dress the Blade: Run the blade through a scrap piece to "dress" it for cleaner cuts[6].
7. Smooth the Edge: Use a sanding stone or diamond pad to refine the cut edge, especially if minor chipping occurs[6][14].
8. Wear PPE: Always use safety glasses, gloves, and a dust mask[14][16].

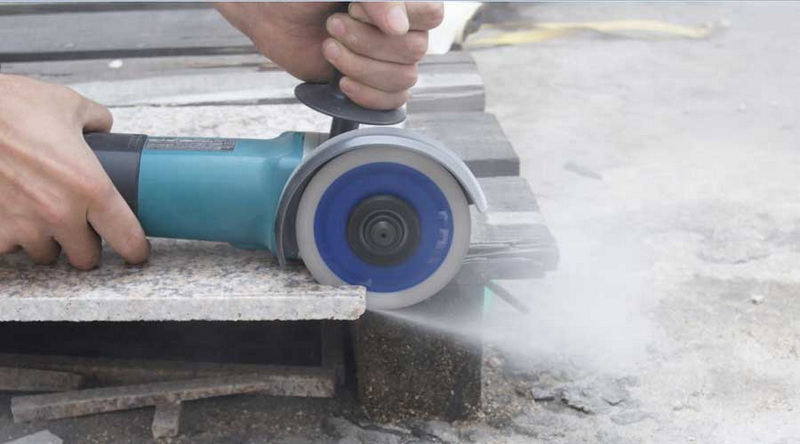

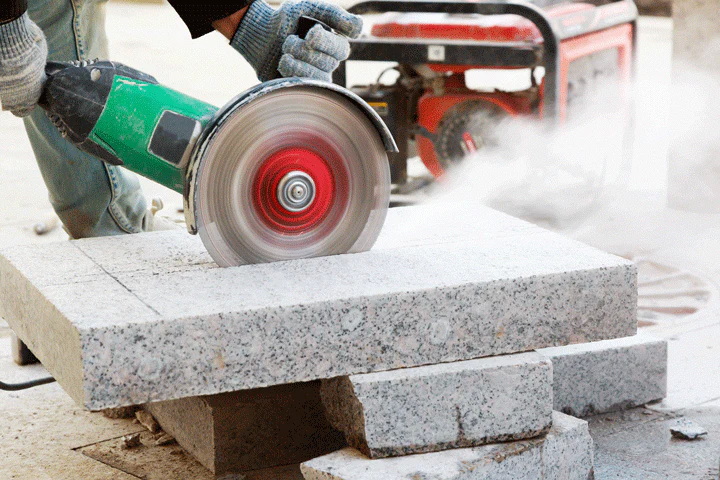

Below are visual resources to help you understand the cutting process and the performance of different blades.
Are Turbo Blades Better for Porcelain Slab Cutting?
Turbo blades offer a compelling combination of speed, versatility, and cooling efficiency, making them an excellent choice for most porcelain slab cutting tasks—especially when dry cutting or working on large projects. Their design allows for aggressive material removal and efficient heat dissipation, which is essential when water is not available.
However, if your priority is the cleanest, most chip-free finish—particularly for visible edges—continuous rim blades, used wet, still hold the edge for precision work. The best results often come from matching the blade type and quality to your specific project needs and conditions.
In summary:
- For speed and versatility: Turbo blades are often better.
- For ultimate finish: Continuous rim blades are preferred.
- Always choose a high-quality, purpose-designed porcelain slab cutting disc for best results.
A high-quality diamond turbo blade is generally best for fast, efficient cutting of porcelain slabs, especially when dry cutting. For the smoothest finish, a continuous rim diamond blade used wet is recommended[2][5][10].
Use a premium porcelain slab cutting disc, cut slowly, and—if possible—use water to cool the blade. Dressing the blade and smoothing the cut edge with a sanding stone can also help reduce chipping[2][6][14].
Yes, turbo blades are versatile and can handle both straight and curved cuts, making them suitable for intricate work as well as large, straight sections[11][13].
Yes, many turbo blades are designed for dry cutting. However, using water when possible will extend blade life and improve cut quality. Always wear proper PPE to protect against dust and debris[2][11][14].
Consider the type of cut, desired finish, job site conditions, and blade quality. For large, fast cuts, choose a premium turbo blade. For visible, precision edges, opt for a continuous rim blade and use water if possible[10][14][18].
