Porcelain slabs, especially in the robust 20mm thickness, have become a top choice for both indoor and outdoor spaces due to their durability, aesthetic appeal, and resistance to weather and wear. However, installing these large-format tiles presents a unique challenge: tile lippage. Lippage refers to the difference in height between adjacent tiles, which can be both unsightly and hazardous. The question many professionals and DIYers ask is: Can a 20mm porcelain slab leveling system truly prevent tile lippage?
This comprehensive article explores the science, techniques, and real-world effectiveness of 20mm porcelain slab leveling systems. We'll break down how these systems work, their limitations, best practices, and provide expert tips for achieving flawless, lippage-free installations. Throughout, you'll find illustrative diagrams and video resources to deepen your understanding.
Tile lippage occurs when the edge of one tile is higher or lower than the one next to it. This is especially problematic with large-format tiles like 20mm porcelain slabs, where even a small misalignment is highly visible and can create trip hazards[9][5].
Common causes of lippage include:
- Uneven subfloors
- Warped tiles (bowing)
- Incorrect adhesive application
- Inconsistent grout spacing
- Inadequate installation techniques[8][5]
Lippage not only affects the visual appeal but also the safety and longevity of your tiled surface.
A 20mm porcelain slab leveling system is specifically engineered to address the challenges of installing thick, heavy porcelain tiles. These systems are designed to keep tiles flush with each other while the adhesive sets, minimizing the risk of lippage[2][10][15].
- Clips/Bases: Placed under the edges of tiles, acting as spacers and anchors.
- Wedges/Caps: Inserted into the clips, applying downward pressure to pull tiles level with each other.
- Tightening Tool (optional): Some systems use pliers or a screw mechanism for precision tightening[2][10][15].

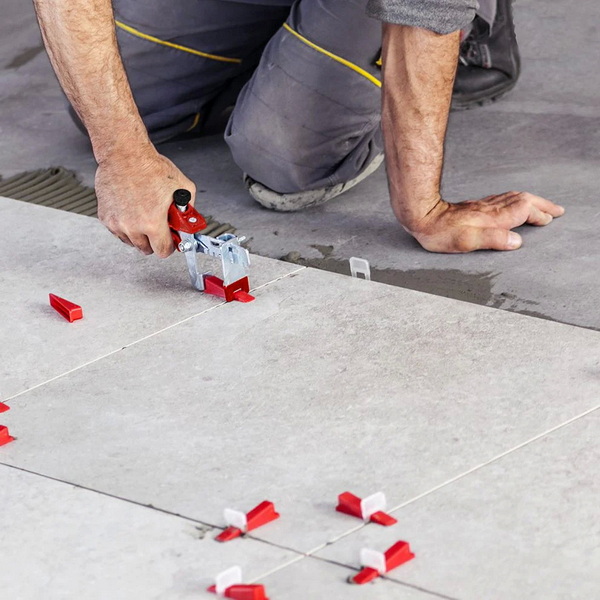

Illustration: Basic Tile Leveling System Components
1. Clips are positioned at the edges of the tile before the next tile is placed.
2. Wedges or caps are inserted and tightened, pulling adjacent tiles into the same plane.
3. The system holds the tiles in position as the adhesive cures, preventing movement and uneven settling.
4. After curing, the clips are broken off and removed, leaving a smooth, level surface[9][6].
A 20mm porcelain slab leveling system is highly effective at preventing lippage between tiles during installation. By interlocking tiles and applying even pressure, these systems virtually eliminate height differences at the tile edges, resulting in a flat, professional finish[2][10][15][12].
Key Benefits:
- Virtually eliminates lippage between adjacent tiles
- Maintains consistent grout lines
- Simplifies installation of large-format, heavy tiles
- Reduces installation time and stress
- Provides a quick quality check during installation[2][9][10]
Illustration: Lippage-Free Installation Using a Leveling System
While a 20mm porcelain slab leveling system is a powerful tool, it has limitations:
- It does not correct an uneven subfloor. Leveling systems keep tiles flush with each other, but if the substrate is not flat, lippage may still occur[2][11][12].
- Tile warpage (bowing) can still cause minor lippage. Even with a leveling system, severely warped tiles may not sit perfectly flat[5].
- Proper adhesive coverage and application are essential. Inadequate adhesive or poor technique can undermine the effectiveness of any leveling system[8][5].
Pro Tip:
Always level your substrate before tiling. The leveling system is not a substitute for proper subfloor preparation[2][12][11].
There are several leveling systems designed for 20mm porcelain slabs. Below are the most popular types:
| System Type | Mechanism | Suitable For | Pros | Cons |
|---|---|---|---|---|
| Wedge & Clip | Clips + Wedges | Most large-format tiles | Simple, effective, reusable parts | Requires pliers |
| Spin/Rotating Cap | Threaded caps + clips | 14-26mm thick tiles | Tool-free, ergonomic, reusable | Slightly higher upfront cost |
| Screw System | Hand-tightened screws | 6-14mm tiles | No pliers needed | Less effective for thick tiles |
| Pedestal System | Adjustable supports | Outdoor raised floors | No adhesive needed, easy to adjust | Not for traditional adhesive installs |
Example:
- Raimondi VITE Levelling Kit: Ideal for 20mm porcelain, tool-free, ergonomic, and reusable[4][10][15].
- Rubi Cyclone System: Fast, no extra tools required, specifically for 20mm slabs[15].
- Ensure the subfloor is flat, clean, and dry.
- Use a self-leveling compound if necessary to correct dips or high spots[8][12][2].
- Use a notched trowel to spread adhesive evenly.
- For large tiles, "back butter" the tile for extra bonding strength[8][5].
- Lay the first tile and press firmly into the adhesive.
- Position clips at the edges of the tile (typically at least three per side for large slabs)[2][10].
- Slide the next tile into position, ensuring it sits snugly against the clips.
- Insert wedges or spin caps and tighten until tiles are level.
- Use a spirit level to check flatness as you go[6].
- Continue the process for the entire installation area.
- Wait at least 24 hours before removing the leveling system[5][13].
- Use a rubber mallet or your foot to break off the clips at the grout line.
- Proceed with grouting and final cleaning[7][13].
Video Resource:
- How to Tile Perfectly Level Every Time
- Understanding Tile Lippage & How To Fix It
- Always level the substrate first. No leveling system can compensate for a severely uneven base[2][12][11].
- Use the correct number of clips. For large slabs, use at least three clips per side to distribute pressure evenly[2].
- Follow manufacturer instructions for both the leveling system and tile adhesive.
- Check for tile warpage before installation. Avoid using severely bowed tiles.
- Maintain proper grout joint width. Smaller joints make lippage more noticeable; follow tile manufacturer guidelines[8][5].
- Use a rubber mallet to gently tap tiles into the adhesive for a perfect bond[8][5].
- Allow adequate curing time before removing the leveling system and grouting[13].
- Solution: Always level the subfloor before tiling. The leveling system only aligns tiles with each other, not the floor itself[2][12][11].
- Solution: Tighten just enough to bring tiles flush. Excessive force can break clips or damage tiles[7].
- Solution: Use a rubber mallet and strike along the grout line to safely remove clips without damaging tiles[7].
- Solution: Use the right trowel and back butter large tiles to ensure full coverage and prevent hollow spots[8][5].
Professional landscapers and tilers consistently recommend the Raimondi VITE Levelling Kit for 20mm porcelain slabs. Its ergonomic, tool-free design and reusable caps make it a favorite for both speed and precision[4][10][15].
Quote:
> “The VITE Tile Levelling Kit is a tool-free, tile levelling system which comprises a threaded cap and clip which is tightened by hand… speeds up the job, removes the risk of lippage between flags, and increases customer satisfaction.”[10]
A 20mm porcelain slab leveling system is one of the most effective tools for preventing tile lippage during installation. By locking tiles together and applying even pressure, these systems virtually eliminate height differences between adjacent tiles, ensuring a smooth, professional, and safe finish.
However, it's crucial to understand their limitations: they cannot correct an uneven subfloor or compensate for severely warped tiles. Proper substrate preparation, correct adhesive application, and careful installation are essential to achieving the best results.
For both professionals and DIYers, investing in a quality 20mm porcelain slab leveling system-paired with best practices-will dramatically improve the look, durability, and safety of your tiled surfaces.
No. Leveling systems are designed to keep tiles flush with each other, not to correct an uneven subfloor. Always ensure your substrate is flat before tiling[2][11][12].
Most 20mm porcelain slab leveling systems have reusable caps or wedges, but the clips or spacer bases are typically single-use and must be replaced for each project[2][9][15].
For large-format 20mm porcelain slabs, use at least three clips per side to ensure even pressure and prevent lippage. More may be needed for very large tiles or uneven substrates[2].
A leveling system can minimize the appearance of lippage caused by minor warpage, but it cannot fully correct severely bowed tiles. Always check tile flatness before installation[5][8].
Spin/rotating cap systems (like Raimondi VITE or Rubi Cyclone) are highly recommended for 20mm slabs due to their tool-free operation, ergonomic design, and consistent results[4][10][15].
