Porcelain slabs, especially those with a thin profile like 3mm thickness, are increasingly popular in modern design for countertops, wall cladding, and furniture surfaces due to their durability, aesthetic appeal, and lightweight nature. However, cutting and shaping such thin porcelain 3mm slabs requires specific knowledge, tools, and techniques to achieve clean, precise results without damaging the material. This comprehensive guide explores whether you can cut and shape a porcelain 3mm slab easily, the best tools and methods to use, safety precautions, and tips to ensure professional outcomes.
Porcelain slabs of 3mm thickness are ultra-thin, large-format ceramic panels made from dense, high-fired clay materials. Their thinness makes them lightweight and easier to handle compared to thicker slabs (e.g., 6mm, 12mm), but also more delicate in terms of cutting and shaping.
- High hardness and density: Porcelain is harder than standard ceramic, making it resistant to scratches and stains but challenging to cut.
- Thin profile: At 3mm, the slab is thin enough to be flexible but requires careful handling to avoid cracking.
- Large format: Often supplied in large sizes (sometimes over 3 meters in length), which demands adequate support during cutting.
- Versatility: Suitable for wall coverings, furniture surfaces, and even countertops when properly supported.
Porcelain 3mm slabs combine the strength of traditional porcelain with the advantage of being ultra-thin, enabling innovative design applications where weight and thickness are critical factors. Their resistance to UV rays, chemicals, and temperature changes also makes them ideal for both indoor and outdoor use.
The short answer is yes, but with some caveats. Cutting and shaping a porcelain 3mm slab is achievable with the right tools, preparation, and techniques. The thinness makes it easier to cut than thicker slabs, but its hardness and brittleness require precision and care to avoid chipping, cracking, or breaking.
The challenge lies in balancing the slab's fragility with its hardness. Unlike thicker stone slabs, the 3mm porcelain slab cannot withstand rough handling or aggressive cutting methods. However, with proper technique, even DIY enthusiasts can achieve professional results.

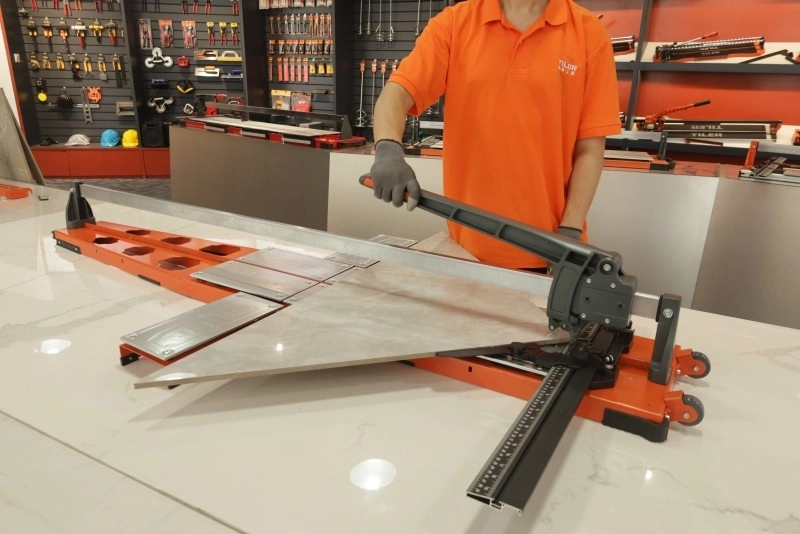

- Designed for large-format porcelain slabs from 3mm to 10mm thickness.
- Uses a scoring wheel to score the slab along a straight line, then pliers or a breaker to snap the slab cleanly.
- Includes suction cups to secure the slab and aluminum guides for straight cuts.
- Lightweight and portable, suitable for on-site cutting.
Manual slab cutters are popular because they offer precision without the need for electricity or water. The scoring and snapping technique works well for straight cuts and is less likely to cause micro-cracks if done properly.
- Ideal for straight cuts.
- The diamond blade cuts through porcelain efficiently, while water cools the blade to reduce dust and prevent overheating.
- Provides clean, precise cuts with minimal chipping.
- Requires a stable cutting surface and water supply.
Wet tile saws are widely used by professionals for their accuracy and ability to handle large slabs. The water cooling system is essential to prevent heat buildup and blade wear, which can cause chipping or breakage.
- Best for curved or irregular cuts.
- Allows for detailed shaping and cutouts.
- Requires steady hands and multiple shallow passes to avoid cracking.
- Must be used with safety gear and in a well-ventilated area.
Angle grinders offer flexibility for cutting curves, notches, or decorative shapes. They require skill and patience, as aggressive cutting can easily damage the slab.
- For drilling holes for sinks, faucets, or fixtures.
- Start drilling at a 45-degree angle, gradually moving to 90 degrees to prevent cracking.
- Use water or lubricant to keep the bit cool.
Drilling holes in porcelain 3mm slabs is delicate work. The diamond-coated hole saw combined with water cooling minimizes heat and stress on the material.
- Uses high-pressure water mixed with abrasive particles to cut porcelain slabs.
- Provides the most precise cuts, including complex shapes and curves.
- Ideal for factory or professional use due to cost and setup.
Waterjet cutting is the gold standard for precision and versatility but is generally inaccessible for casual users due to its expense and technical requirements.
- Support the slab properly: Use a flat, stable surface large enough to hold the entire slab without sagging.
- Mark your cut lines: Use a pencil or grease marker and a straightedge or template for accuracy.
- Wear safety gear: Safety glasses, dust mask, gloves, and hearing protection are essential.
Proper preparation is key to successful cutting. Supporting the slab evenly prevents stress points that can cause cracks. Marking cut lines clearly ensures accuracy and reduces the chance of mistakes.

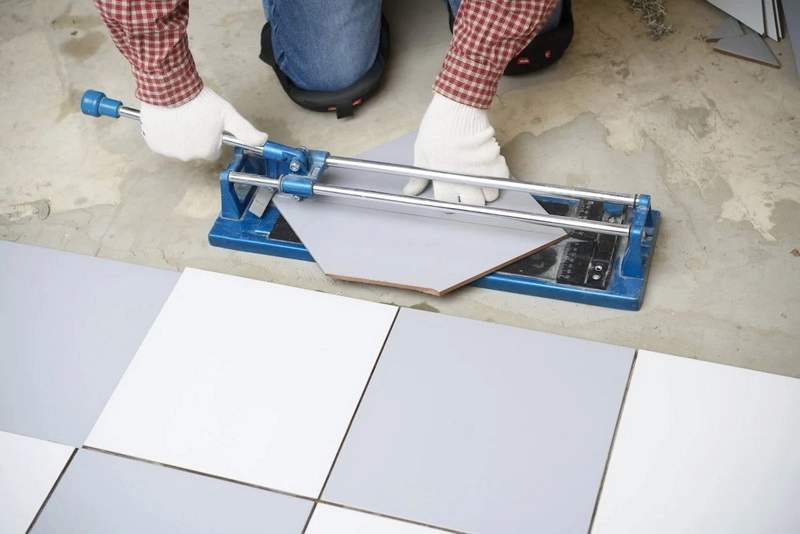

1. Position the slab on the cutter's base, aligning the scoring wheel with the marked line.
2. Score the slab firmly in one continuous motion.
3. Use the integrated pliers or breaker to snap the slab along the score line.
4. Smooth edges with a diamond hand pad or sandpaper if needed.
This method is straightforward and effective for straight cuts, especially for thinner porcelain slabs where snapping is feasible without breakage.
1. Fill the saw's water reservoir and ensure the pump is working.
2. Place the slab on the sliding table, aligning the blade with the cut line.
3. Turn on the saw and slowly push the slab through the blade, maintaining steady pressure.
4. Use plenty of water to keep the blade cool and reduce dust.
5. Reduce blade speed when entering and exiting the slab to avoid chipping.
Wet tile saws provide smooth edges and are ideal for larger slabs or multiple cuts. Water cooling is essential to maintain blade integrity and slab quality.
1. Secure the slab firmly to prevent movement.
2. Mark the curve or shape clearly.
3. Start the grinder and make shallow passes along the line.
4. Gradually deepen the cut until the slab is cut through.
5. Smooth edges carefully to remove roughness.
Curved cuts require patience and control. Multiple shallow passes reduce the risk of cracking, and smoothing edges after cutting improves the final appearance.
1. Mark the hole location clearly.
2. Use a diamond-coated hole saw with water cooling.
3. Start drilling at a 45-degree angle, then move to 90 degrees.
4. Drill only partway through, then finish manually to avoid breakage.
Drilling requires a gentle approach to avoid stress fractures. Water cooling and angled starts help maintain the slab's integrity.
- Always use diamond blades designed for porcelain or stoneware.
- Keep the blade wet to reduce heat and dust.
- Avoid forcing the blade; let the tool do the work.
- Make radius corners (minimum 6mm) instead of sharp 90-degree internal corners to prevent cracks.
- For slabs without mesh backing, apply a high-density rubber or foam backing before cutting holes or recesses.
- Handle slabs carefully, especially after cutting holes or notches, as these areas are more fragile.
- Use vibration-absorbing mats or foam under the slab during cutting to reduce stress.
- Clean the slab after cutting to remove dust and debris.
Additional practical advice includes working slowly and methodically, ensuring your workspace is well-lit and organized, and checking your tools regularly for wear or damage to maintain cutting quality.
- Guide to Cutting and Drilling Large Porcelain Slabs — A step-by-step video showing tools, techniques, and tips for clean cuts and holes without damaging the slab.
- Caesarstone Porcelain Fabrication & Installation Guide — Detailed fabrication process including perimeter cuts, cutouts, and edge finishing.
- How To Cut Porcelain Paving With A Grinder — Demonstrates cutting narrow strips and curved cuts using an angle grinder with a diamond blade.
These resources provide visual demonstrations that complement the techniques described, offering practical insights into the handling and cutting process.
Cutting and shaping a porcelain 3mm slab is entirely feasible with the right approach. While the thinness of the slab makes it lighter and somewhat easier to handle, porcelain's hardness and brittleness demand specialized tools such as manual slab cutters, wet tile saws, and angle grinders with diamond blades. Proper preparation, steady technique, and safety precautions are crucial to avoid chipping or cracking. For complex shapes or high-precision work, advanced methods like waterjet cutting offer the best results. With practice and care, you can achieve smooth, accurate cuts and beautiful finishes on porcelain 3mm slabs for a variety of applications.
Porcelain 3mm slabs open up exciting possibilities in design and architecture, combining elegance with practicality. Mastering the cutting and shaping process enhances your ability to bring creative visions to life while maintaining the integrity and beauty of this remarkable material.
A manual slab cutter designed for large-format porcelain slabs or a wet tile saw with a diamond blade are the best tools for straight cuts on porcelain 3mm slabs. They provide clean, precise cuts with minimal risk of chipping.
Yes, curved shapes and holes can be cut using an angle grinder with a diamond blade for curves and a diamond-coated hole saw for holes. It's important to make shallow passes and keep the blade cool to avoid cracking.
Use diamond blades with water cooling, avoid forcing the blade, make radius corners instead of sharp 90-degree angles, support the slab properly, and handle cut pieces carefully, especially near cutouts.
Waterjet cutting is not necessary but is the most precise and versatile method, especially for complex shapes and intricate designs. It is usually used in professional or factory settings.
Wear safety glasses, dust masks, gloves, and hearing protection. Ensure good ventilation, use water cooling to reduce dust, and secure the slab firmly to prevent movement during cutting.
