Porcelain floor tiles are a popular choice for many homeowners due to their durability, aesthetic appeal, and versatility. When it comes to installing these tiles, one common question that arises is whether they can be laid directly on a concrete slab. This article will explore the process of installing porcelain floor tiles on concrete, discussing the necessary steps, potential challenges, and best practices to ensure a successful and long-lasting installation.
Before diving into the installation process, it's important to understand that while it is possible to install porcelain tiles directly on a concrete slab, there are several factors to consider and preparatory steps to take to ensure the best results.
Porcelain tiles are dense, durable, and resistant to moisture, making them an excellent choice for both indoor and outdoor applications. Concrete slabs, on the other hand, provide a solid foundation for tile installation but may require some preparation to create an ideal surface for tiling.
The key to a successful tile installation lies in proper preparation of the concrete slab. Here are the essential steps to follow:
1. Assess the Condition: Examine the concrete slab for any cracks, unevenness, or signs of moisture issues. Address these problems before proceeding with tile installation[1].
2. Clean the Surface: Thoroughly clean the concrete surface to remove any dirt, dust, or debris that could interfere with tile adhesion[5].
3. Level the Surface: If the concrete slab is not level, you may need to use a self-leveling compound to create a flat surface for tiling[3].
4. Check for Moisture: Conduct a moisture test to ensure the concrete slab is sufficiently dry. Excessive moisture can lead to tile failure and mold growth[5].
Selecting the appropriate materials is crucial for a successful tile installation. Here's what you'll need:
1. Porcelain Tiles: Choose high-quality porcelain tiles suitable for your intended use (indoor or outdoor)[1].
2. Tile Adhesive: Use a polymer-modified thinset mortar specifically designed for porcelain tiles[5].
3. Grout: Select a grout that complements your tiles and is appropriate for the joint width[5].
4. Tools: Gather necessary tools such as a notched trowel, tile spacers, and a tile cutter[7].
Now that you have prepared the surface and gathered the necessary materials, let's walk through the installation process:
Before applying any adhesive, dry lay the tiles to plan your layout. This helps you determine the best arrangement and identify any necessary cuts[5].

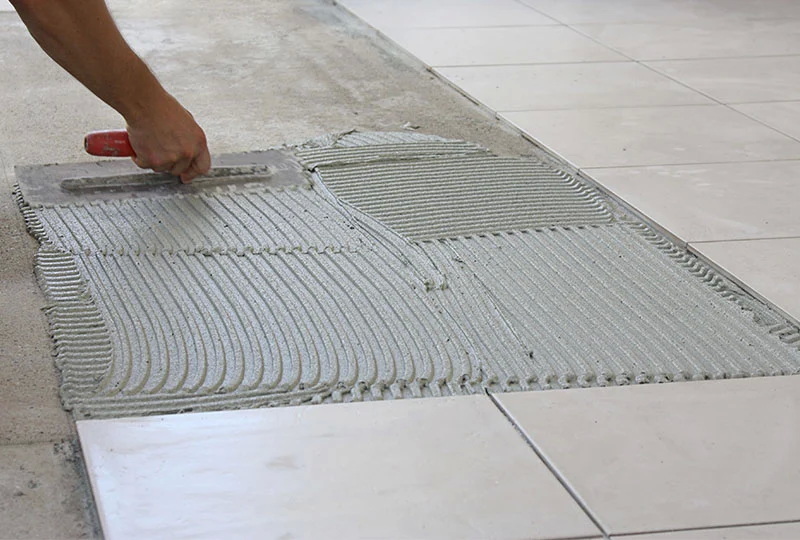

Using a notched trowel, spread the tile adhesive evenly over a small section of the concrete slab. Work in manageable areas to prevent the adhesive from drying before you can place the tiles[5][7].

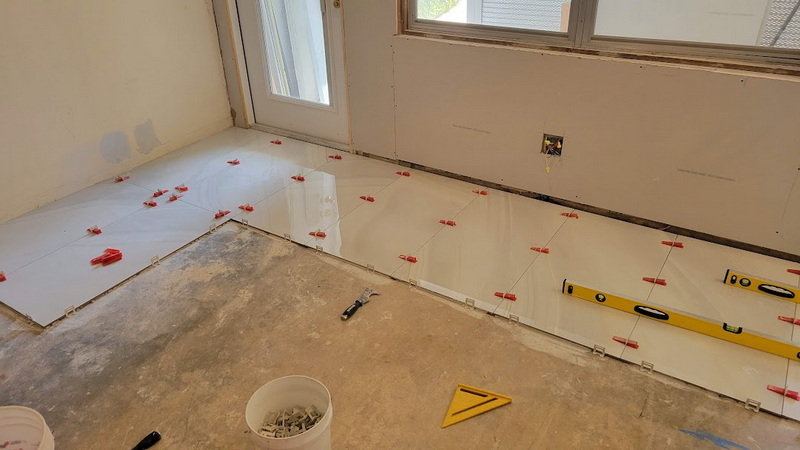

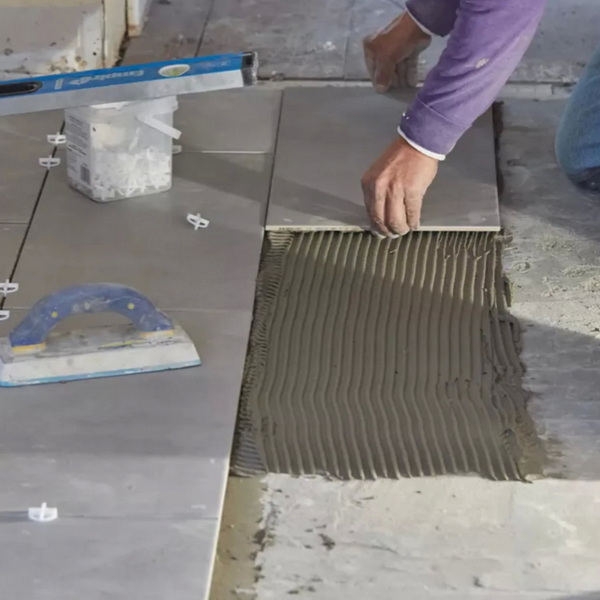

Carefully place the porcelain tiles onto the adhesive, using tile spacers to maintain consistent gaps between tiles. Press each tile firmly into place[5][7].
Use a tile cutter or wet saw to cut tiles for edges, corners, or around obstacles[5].
Let the adhesive set according to the manufacturer's instructions, typically 24 to 48 hours[7].
Once the adhesive has set, remove the tile spacers and apply grout to fill the joints between tiles. Use a rubber float to spread the grout evenly[5][7].
After the grout has dried, clean the tile surface and apply a sealer if recommended for your specific type of porcelain tile and grout[5].
While installing porcelain tiles directly on concrete is possible, there are some special considerations to keep in mind:
For outdoor applications, such as patios or walkways, additional steps may be necessary:
1. Ensure Proper Drainage: The concrete slab should have a slight slope to allow water to drain away from the building[1].
2. Use Weather-Resistant Materials: Choose tiles, adhesives, and grouts that are rated for outdoor use and can withstand temperature fluctuations[1].
3. Consider Expansion Joints: Incorporate expansion joints to accommodate thermal expansion and contraction[2].
If you're considering underfloor heating, it's important to note that while it's possible to use with porcelain tiles on concrete, it's typically not feasible for outdoor installations[5].
In areas prone to moisture issues, applying a moisture barrier between the concrete slab and the tile adhesive may be necessary to prevent potential problems[5].
There are several advantages to installing porcelain tiles directly on a concrete slab:
1. Durability: The combination of porcelain tiles and a concrete base creates a highly durable flooring system[1].
2. Moisture Resistance: Porcelain tiles are naturally moisture-resistant, making them ideal for areas prone to spills or high humidity[1].
3. Easy Maintenance: Porcelain tile floors are easy to clean and maintain, requiring minimal upkeep[1].
4. Versatility: With a wide range of colors, patterns, and textures available, porcelain tiles can suit various design aesthetics[1].
5. Cost-Effective: Installing tiles directly on concrete can be more cost-effective than using intermediate layers or substrates[5].
While installing porcelain tiles on concrete offers many benefits, there are some challenges to be aware of:
1. Surface Imperfections: Any unevenness or imperfections in the concrete slab can translate to the tile surface if not properly addressed[3].
2. Cracking: If the concrete slab develops cracks over time, these may reflect through to the tile surface[2].
3. Moisture Issues: Inadequate moisture control can lead to tile failure, efflorescence, or mold growth[5].
4. Temperature Fluctuations: In outdoor installations, extreme temperature changes can cause tiles to expand and contract, potentially leading to cracking or loosening[1].
To ensure your porcelain tile installation on concrete stands the test of time, consider these best practices:
1. Proper Surface Preparation: Take the time to properly clean, level, and prepare the concrete surface before tiling[1][5].
2. Use Quality Materials: Invest in high-quality tiles, adhesives, and grouts suitable for your specific application[5].
3. Follow Manufacturer Guidelines: Adhere to the manufacturer's instructions for all products used in the installation process[5].
4. Allow Adequate Curing Time: Give both the concrete slab (if newly poured) and the tile installation sufficient time to cure before use[6].
5. Regular Maintenance: Implement a regular cleaning and maintenance routine to keep your tiled floor in top condition[1].
Installing porcelain floor tiles directly on a concrete slab is indeed possible and can result in a beautiful, durable, and long-lasting flooring solution. By following proper preparation techniques, using appropriate materials, and adhering to best practices, you can achieve professional-looking results whether you're tiling an indoor living space or an outdoor patio.
Remember that while DIY installation is possible for those with the right skills and tools, complex installations or large areas may benefit from professional expertise. Always prioritize proper surface preparation, use high-quality materials, and take the time to plan and execute each step carefully for the best outcome.
It's recommended to allow a new concrete slab to cure for at least 28 days before tiling. This ensures that the majority of shrinkage has occurred and the slab has reached sufficient strength[6].
While not always necessary, using a primer can improve adhesion, especially on very smooth or dense concrete surfaces. Consult the adhesive manufacturer's recommendations for your specific situation[5].
Yes, large format porcelain tiles can be installed directly on concrete. However, it's crucial to ensure the concrete surface is perfectly level and to use the appropriate thinset mortar designed for large format tiles[5].
You can perform a simple moisture test by taping a plastic sheet to the concrete surface and checking for condensation after 24 hours. For more accurate results, consider using a calcium chloride test or relative humidity test[5].
Most porcelain tiles don't require sealing due to their low porosity. However, if you're using unglazed porcelain tiles or if you want to protect the grout, applying a penetrating sealer can be beneficial[5].
