Large format tile slabs, especially large porcelain tile slabs, have become a popular choice in modern interior design due to their sleek appearance, durability, and ease of maintenance. However, their installation requires careful preparation and consideration, particularly when it comes to the substrate and underlayment. One common question that arises is whether a 1/4 inch membrane can be used under these large format tile slabs. This article explores this topic in depth, covering floor preparation, membrane types, installation techniques, and best practices to ensure a successful and long-lasting tile installation.

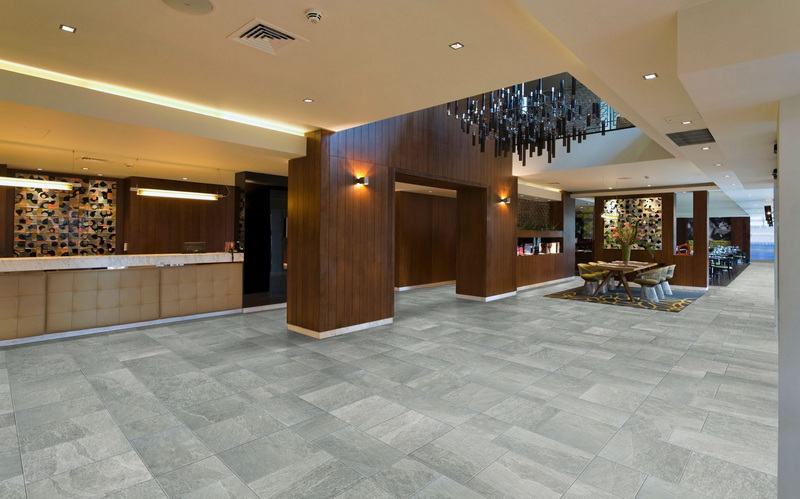

Large format tile slabs typically refer to tiles with at least one side measuring 15 inches or more, with some porcelain slabs reaching sizes as large as 63 x 126 inches. These slabs are usually thin, ranging from 6 mm to 12 mm in thickness, and offer a continuous, minimal-joint aesthetic that mimics natural stone or concrete surfaces.
- Size and Thickness: Large slabs can be ultra-thin (6 mm) or thicker (up to 12 mm or more), depending on application.
- Aesthetic Variety: Available in marble-like, concrete, metallic, and monochromatic finishes.
- Durability: Resistant to heat, scratches, chips, and stains.
- Applications: Suitable for floors, countertops, walls, vanities, and even outdoor surfaces.
Because of their size and thinness, the substrate must be perfectly flat and stable to prevent cracking or unevenness after installation.
Large format tiles require an extremely flat and stable substrate to avoid stress points that can cause tile fractures. Industry standards recommend a flatness tolerance of ±3 mm over 2 meters for substrates before installation.
1. Assess Substrate Condition: Ensure the substrate is sound, cured, dry, clean, and free of contaminants like grease or paint.
2. Leveling the Floor: Use self-leveling compounds such as ULTRAPLAN or NIVORAPID to correct unevenness beyond tolerance.
3. Curing Time: Concrete slabs should cure for at least 28 days before tile installation to avoid shrinkage-related stress.
4. Priming: For certain substrates like anhydrite screeds, sanding, de-dusting, and priming are necessary.
Proper floor preparation minimizes the risk of tile cracking and ensures a long-lasting installation.
A membrane is an underlayment layer installed between the substrate and tile. It serves several purposes:
- Uncoupling: Allows independent movement between substrate and tile to prevent cracks transferring.
- Crack Isolation: Prevents existing cracks in the substrate from telegraphing through the tile.
- Waterproofing: Protects against moisture penetration, especially in wet areas.
- Stress Absorption: Reduces stresses caused by substrate movement or thermal expansion.
Most uncoupling membranes are thin, usually less than 1/4 inch thick, designed to absorb movement without adding significant height. A 1/4 inch (6 mm) membrane is relatively thick compared to common products like Schluter-DITRA, which is about 1/8 inch thick.
- Floor Height: A 1/4 inch membrane will raise the floor height, which can affect transitions to other flooring surfaces and door clearances.
- Substrate Flatness: Membranes follow the contours of the floor, so if the floor is uneven beyond 1/4 inch, additional leveling or a mortar bed may be necessary.
- Tile Thickness and Weight: Large porcelain slabs are heavy and thin; the membrane and adhesive must support this load without flexing.
- Installation Method: Membranes are typically bonded to the substrate with thinset mortar, and tiles are bonded on top of the membrane with another layer of thinset.
- For large format tiles, especially large porcelain slabs, the substrate flatness is critical. If variations exceed 1/4 inch, a thicker mortar bed or leveling compound is recommended.
- Uncoupling membranes can be used under large format tiles to prevent cracking due to substrate movement.
- The membrane thickness should be compatible with the tile thickness and overall floor height considerations.
- Some installations use a mortar bed over the membrane to create a perfectly flat bed, but this adds thickness.
In summary, while a 1/4 inch membrane can be used under large format tile slabs, it is essential to ensure that the overall floor build-up, flatness, and structural support are adequate for the tile size and weight.
- Clean and level the floor.
- Repair any cracks or loose areas.
- Prime if necessary.

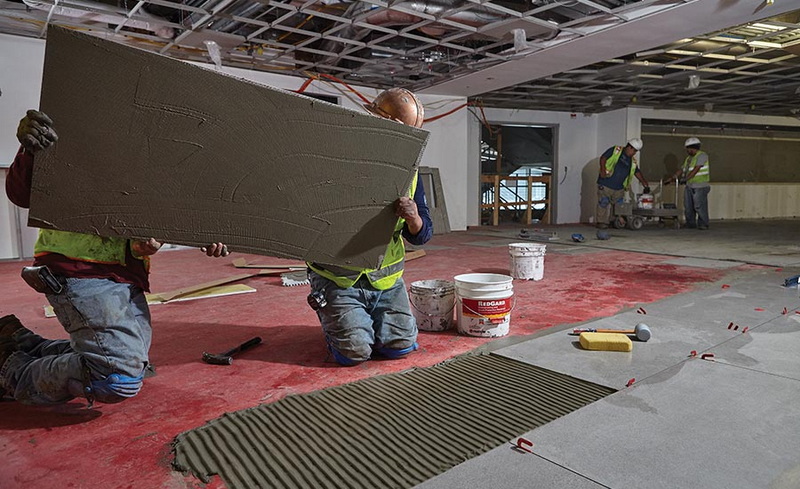

- Spread thinset mortar on the substrate using the appropriate notched trowel.
- Lay the membrane fleece side down into the mortar and press firmly to ensure full contact.
- Allow the mortar to set as per manufacturer recommendations.

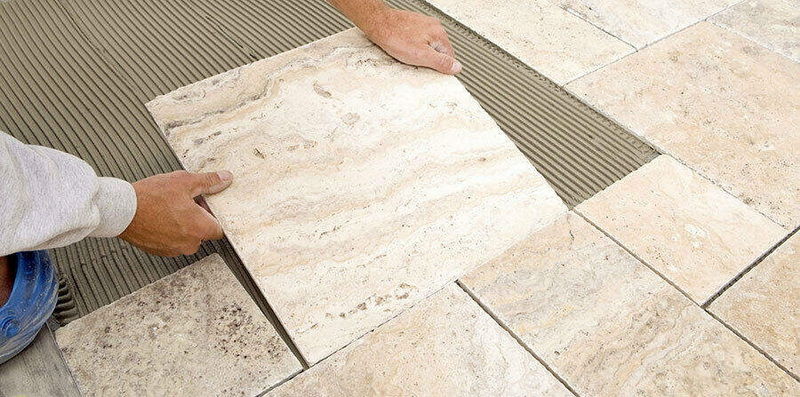

- Clean the back of the large porcelain tile slabs.
- Apply a layer of thinset mortar on the back of the tile (back buttering) to ensure full coverage.
- Use a notched trowel suitable for large tiles (e.g., 15 mm round teeth).

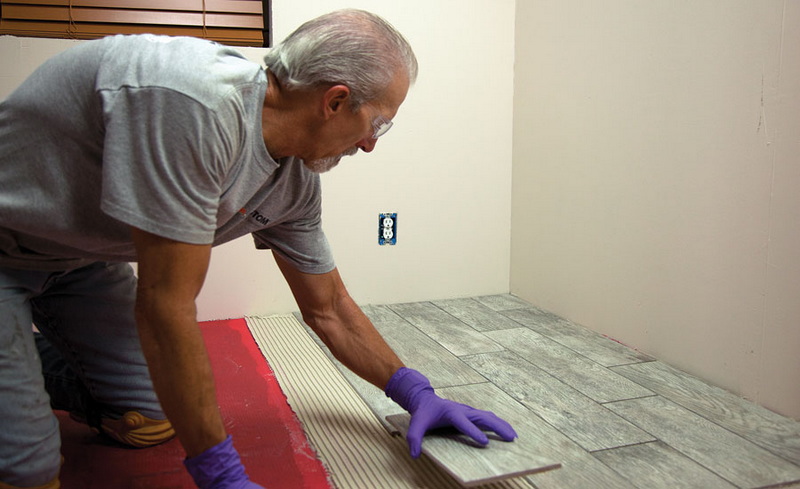

- Place the tile onto the membrane-covered substrate.
- Tap the tile gently with a rubber mallet or a battery-operated tile beater to remove air pockets and ensure adhesion.
- Maintain consistent grout joints (minimum 2 mm recommended).
- Use leveling spacers or wedges to prevent lippage and maintain flatness.
- After the adhesive cures, grout the joints using a suitable grout.
- Seal grout if necessary.
- Clean the tile surface and inspect for any defects.
- Crack Prevention: Absorbs substrate movement, preventing cracks in tiles and grout.
- Moisture Protection: Some membranes offer waterproofing benefits.
- Improved Adhesion: Provides a better bonding surface for thinset and tiles.
- Longevity: Extends the life of the tile installation by reducing stress.
Using a 1/4 inch membrane adds thickness to the floor system. This can affect door clearances, cabinetry, and transitions to other flooring materials such as hardwood, carpet, or vinyl. It is critical to plan for these height changes early in the project to avoid costly adjustments later.
Large porcelain tile slabs are often installed over radiant heating systems for added comfort. When using a membrane, verify that it is compatible with underfloor heating. Some membranes are designed to allow heat transfer efficiently, while others may act as insulators, reducing heating effectiveness.
A thicker membrane like 1/4 inch can provide more cushioning and movement accommodation. However, excessive flexibility might cause the tile to feel less solid underfoot. It is important to choose a membrane that balances flexibility with support, especially for heavy large format slabs.
Large porcelain tile slabs require full coverage of adhesive to prevent voids and ensure proper support. When using a membrane, thinset mortar is applied both under the membrane and under the tile (back buttering). This double application increases the setting time and requires careful planning of work stages.
If the substrate has unevenness exceeding 1/4 inch, self-leveling compounds or mortar beds should be applied before membrane installation. Self-leveling compounds provide a smooth, flat surface quickly, while mortar beds offer a thicker, more robust base.
Before installing membranes and large porcelain tile slabs, test the substrate for moisture content. Excess moisture can cause adhesive failure and membrane degradation. Use moisture meters or calcium chloride tests to ensure the floor is dry enough for installation.
- Concrete Substrates: Require curing, cleaning, and sometimes priming. Cracks should be repaired before membrane installation.
- Wood Substrates: Must be structurally sound, with minimal deflection. Use plywood or cement backer boards as a base before membrane application.
- Notched trowels (15 mm for large tiles)
- Thinset mortar (polymer-modified, large tile grade)
- 1/4 inch membrane (uncoupling membrane suitable for large format tiles)
- Rubber mallet or tile beater
- Tile leveling system (spacers, wedges)
- Grout and grout float
- Floor primer (if required)
- Self-leveling compound or mortar bed materials (if needed)
Using a 1/4 inch membrane under large format tile slabs, particularly large porcelain tile slabs, is a viable and often recommended approach to ensure a durable, crack-resistant installation. The membrane acts as an uncoupling layer that protects the tile from substrate movement and moisture, enhancing the longevity of the floor. However, installers must carefully consider the impact on floor height, substrate flatness, and adhesive compatibility. Proper floor preparation, including leveling and priming, combined with the correct membrane and mortar system, is essential for success. By following industry best practices and manufacturer guidelines, you can achieve a flawless, long-lasting large format tile installation.
A membrane acts as an uncoupling layer that prevents cracks and substrate movement from transferring to the tile surface, enhancing durability and longevity.
Yes, a 1/4 inch membrane can raise the floor height significantly, potentially affecting transitions to other flooring types and door clearances. Planning is necessary to accommodate this.
Absolutely. Large format tiles require a flat substrate within ±3 mm tolerance. Membranes follow the floor contours, so uneven floors should be leveled before membrane installation.
Polymer-modified thinset mortars designed for large and heavy tiles are recommended. They can be applied thicker (up to 3/4 inch) to compensate for irregularities.
Yes, uncoupling membranes like Schluter-DITRA are suitable for both concrete and wood subfloors, providing crack isolation and movement accommodation.
