When installing porcelain tiles on a concrete slab, the question of waterproofing is critical. While porcelain tiles are inherently water-resistant, the concrete beneath them is porous and vulnerable to moisture infiltration. This article explores why waterproofing is essential, provides a detailed installation guide, and addresses common concerns to ensure a durable, long-lasting finish.
Concrete slabs act like sponges, absorbing water through microscopic pores. Over time, this can lead to:
- Structural degradation: Water weakens concrete's integrity, causing cracks or crumbling.
- Adhesive failure: Moisture compromises thinset mortar bonds, leading to loose or cracked tiles.
- Efflorescence: Mineral deposits leach to the surface, creating unsightly white stains.
Trapped moisture fosters mold growth, which damages surfaces and poses respiratory health risks. Bathrooms, kitchens, and outdoor areas are particularly susceptible.
Waterproofing prevents costly repairs like tile replacement or slab reconstruction. A one-time investment in waterproofing can save thousands in future maintenance.
- Inspect for damage: Look for cracks, spalling, or uneven surfaces.
- Conduct a moisture test: Tape a 2x2 ft plastic sheet to the slab. Condensation under the plastic after 24 hours indicates high moisture levels.
- Measure pH levels: Use a pH test strip to ensure the slab is neutral (pH 7–9). Highly alkaline surfaces require etching.
- Clean thoroughly: Remove dust, grease, or old adhesive with a degreaser and stiff-bristle brush.
- Etch the surface (if needed): Apply a concrete etcher (e.g., muriatic acid solution) to open pores for better primer adhesion. Rinse and dry completely.
- Fill small cracks: Use a flexible polyurethane sealant or hydraulic cement.
- Level uneven areas: Apply a self-leveling underlayment for slopes greater than 1/8 inch over 10 feet.
- Grind high spots: Use a concrete grinder to smooth protrusions.
- Choose a primer: Opt for acrylic or epoxy-based primers compatible with your waterproofing membrane.
- Application tips: Use a roller for large areas and a brush for edges. Allow 4–6 hours of drying time.
- Products: Brands like RedGard or Laticrete Hydro Barrier.
- Application: Roll on two coats in perpendicular directions. Ensure a thickness of 20–40 mils.
- Curing time: 24–48 hours.
- Products: Schluter Kerdi or NobleSeal CIS.
- Installation: Adhere sheets using manufacturer-approved thinset, overlapping seams by 2 inches. Seal seams with waterproof tape.
- Flood test: Pour water onto the surface and let it sit for 24 hours. Check for leaks or absorption.
- Use a moisture meter: Ensure moisture content is below 4% before tiling.
- Thinset mortar: Use a polymer-modified (ANSI 118.4) mortar for superior bond strength.
- Grout: Epoxy or urethane grout resists moisture better than cement-based options.
- Tiles: Choose porcelain tiles with a PEI rating of 3+ for floors or 2+ for walls.

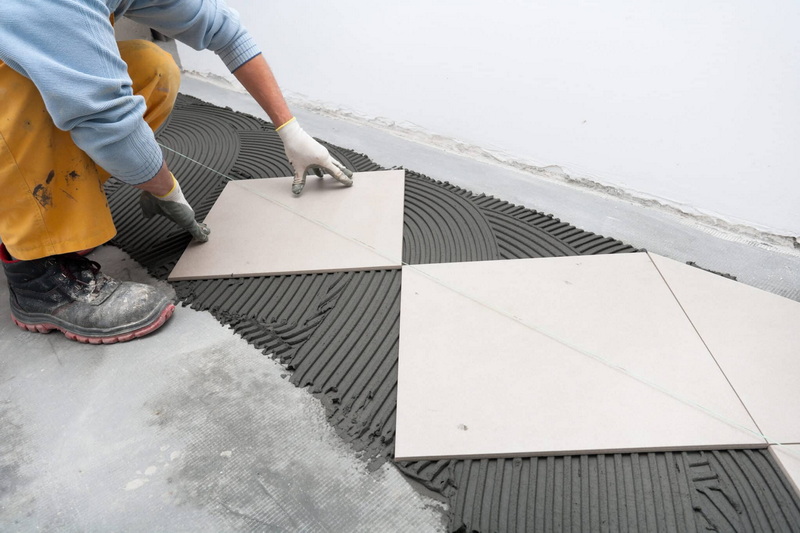

- Dry-fit tiles: Arrange tiles without adhesive to visualize patterns and minimize cuts.
- Control joints: Align grout lines with existing concrete expansion joints to prevent cracking.

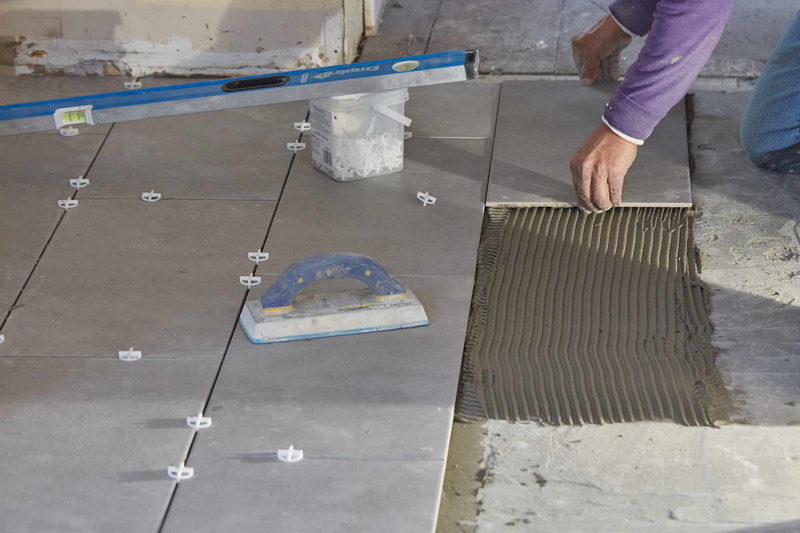

- Notch trowel size: Use a 1/2x1/2 inch square-notch trowel for large-format tiles.
- Butter the tiles: Apply mortar to the tile's back for full coverage, especially with textured surfaces.

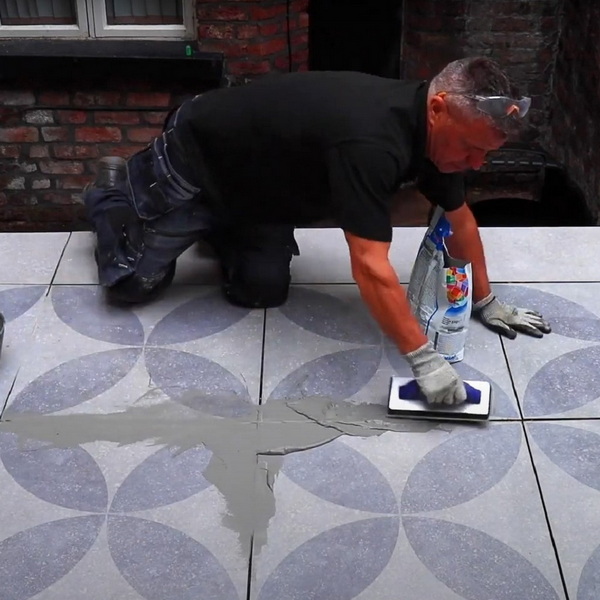

- Grout application: Work in small sections, pressing grout deeply into joints with a float.
- Sealing: Apply a penetrating sealer to grout lines after 72 hours. Reapply every 1–2 years.
- Humid regions: Use vapor barriers beneath the slab in addition to surface waterproofing.
- Freeze-thaw cycles: Opt for crack-isolation membranes (e.g., Ditra) to accommodate slab movement.
For garages or industrial spaces:
- Reinforce the slab: Add steel mesh or fiber reinforcement during concrete pouring.
- Use thicker membranes: Apply 60-mil liquid membranes for enhanced protection.
- Decorative finishes: Integrate radiant heating mats under tiles for luxury flooring.
- Grout color: Darker grout hides stains better in high-traffic areas.
1. Ignoring moisture tests: Assuming a slab is dry without verification leads to adhesive failure.
2. Inadequate membrane coverage: Thin or patchy applications compromise waterproofing.
3. Mismatched materials: Using oil-based primers with water-based membranes causes delamination.
4. Rushing curing times: Tiling too soon risks trapping moisture under the membrane.
Waterproofing a concrete slab before installing porcelain tiles is non-negotiable for durable, visually appealing results. By addressing moisture at its source, selecting appropriate materials, and following meticulous installation steps, you ensure a floor that withstands decades of use. Whether it's a bathroom, kitchen, or outdoor patio, this proactive approach safeguards both your investment and your health.
Yes, products like RedGard Sheet Membrane work well for DIYers. Ensure seams are sealed with compatible tape.
Liquid membranes should be 20–40 mils thick (about the width of a credit card). Measure with a wet-film gauge.
Absolutely. Outdoor slabs face rain, snow, and temperature swings, making waterproofing crucial to prevent frost heave.
While it won't stop slab movement, crack-isolation membranes (e.g., Schluter Ditra) decouple tiles from minor shifts.
With proper installation and maintenance, expect 30–50 years of service life.
