Bookmatch porcelain slabs are revolutionizing modern interior and exterior design, offering the elegance of natural stone with the durability and versatility of porcelain. Installing these large-format, mirrored slabs is a meticulous process that requires careful planning, precision, and the right techniques. This comprehensive guide will walk you through every step of installing bookmatch porcelain slabs like a seasoned professional, complete with visual aids, expert tips, and video resources to ensure flawless results.

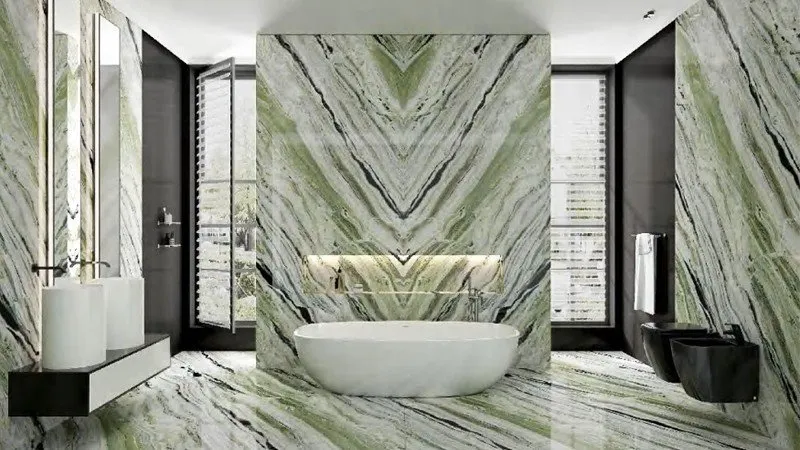

Bookmatch porcelain slabs are large-format tiles designed to mirror each other, creating a continuous, symmetrical pattern reminiscent of an open book. This effect is achieved by placing two slabs side by side, with the veining and patterns aligned in a mirrored fashion. Bookmatching is especially popular for feature walls, countertops, splashbacks, and floors, where dramatic visual impact is desired.
Key Features of Bookmatch Porcelain Slabs:
- Large format (often up to 3200 x 1600mm)
- Mirrored, continuous vein patterns
- Available in marble, stone, wood, and other effects
- Highly durable, stain and scratch-resistant
- Minimal grout lines for a seamless look
Before you begin, gather the following tools and materials to ensure a professional installation:
- Spirit level
- High-quality mortar or premium modified thinset for large format tiles
- Paving primer or slurry for adhesion
- Trowels (notched and flat)
- Measuring tape
- Tile spacers (3-5mm recommended)
- Suction cups or slab lifters for safe handling
- Wet saw or score-and-snap cutter for porcelain
- Rubber mallet (preferably white-headed)
- Hard-bristle brush
- Safety gear: gloves, dust mask, safety glasses, ear protection
- Jointing compound or grout (cementitious or epoxy)
- Clean cloths and sponges
Pro Tip: For large and heavy bookmatch porcelain slabs, always use suction cups and have at least two people for handling and placement to avoid breakage and injury.
A flawless installation begins with a perfectly prepared substrate. The surface must be:
- Clean and free from dust, grease, and debris
- Level and flat (within 1/16" in 2' and 1/8" in 10')
- Dry and stable, with no cracks or movement
- Properly cured if newly constructed
For uneven surfaces, use a patching compound or repair mortar to achieve the required flatness. This is critical for large-format slabs, as even minor imperfections can lead to lippage or cracking.
Bookmatching requires careful layout planning to ensure the mirrored effect is achieved and the veins flow seamlessly across the slabs.
1. Dry Lay the Slabs: Arrange the slabs on the floor in the intended order and orientation. This allows you to visualize the bookmatch effect and make adjustments before adhesive is applied.
2. Mark Reference Lines: Use a chalk line or laser level to mark the centerline and edges on the substrate.
3. Determine Joint Widths: Plan for minimal grout joints (typically 2-5mm). Use spacers to maintain consistency.
4. Account for Expansion Joints: Always include expansion joints at regular intervals and at the perimeter to accommodate movement.
Large-format porcelain slabs are heavy and fragile, requiring careful handling.
- Always use suction cup lifters or a slab handling frame.
- Move slabs vertically, not flat, to prevent flexing and breakage.
- Support the entire slab during transport and placement.
Cutting Tips:
- Use a wet saw or score-and-snap cutter designed for porcelain.
- For inside corners, use a minimum 3/16” radius to prevent stress fractures.
- Always cut with the finished side up and support the slab fully during cutting.
Choosing the right adhesive is crucial for bookmatch porcelain slab installation.
- Use a premium, highly deformable, modified thinset (Class C2S2) for large format porcelain.
- In hot climates, select adhesives with extended open time (Class E).
- For fast installations or cold conditions, use fast-setting adhesives (Class F).
- Apply adhesive to both the substrate and the back of the slab (double spreading).
- Use a notched trowel to create parallel ridges, ensuring full coverage (at least 95%).
- For slabs with mesh backing, confirm adhesive compatibility.
1. Apply Primer: Brush a thin layer of paving primer or slurry to the back of each slab for improved adhesion.
2. Set the First Slab: Position the slab carefully on the adhesive bed, using spacers for joint width. Tap gently with a rubber mallet to bed the slab and eliminate air pockets.
3. Align the Bookmatch: Place the second slab, mirroring the pattern. Adjust as necessary to ensure the veins align perfectly.
4. Check Levels: Use a spirit level to ensure each slab is flush and even with adjacent slabs.
5. Continue Laying: Repeat the process for additional slabs, always checking alignment and level.
- Wait until the adhesive has cured (typically 24 hours).
- Use a grout that matches the slab color and is suitable for porcelain.
- Apply grout with a rubber float, pressing it into the joints.
- Clean excess grout with a damp sponge before it sets.
- Inspect joints for voids or gaps and touch up as needed.
- Clean the surface with a diluted acid detergent (for cementitious grout) or plenty of water (for epoxy grout).
- Avoid walking on the slabs until grout has fully cured.
Bookmatch porcelain slabs are low-maintenance but benefit from regular care:
- Clean daily with a damp cloth and neutral detergent.
- Avoid harsh chemicals or abrasive pads.
- For stubborn stains, use a porcelain-safe cleaner.
- Inadequate Substrate Preparation: Leads to lippage and cracking.
- Incorrect Adhesive: Can cause delamination or weak bonding.
- Improper Handling: Results in slab breakage or chipping.
- Poor Alignment: Ruins the bookmatch effect.
- Skipping Expansion Joints: Causes buckling or cracking over time.
- Porcelain tile slabs - how to install them
- How To Lay A Porcelain Patio
Installing bookmatch porcelain slabs like a professional is a rewarding process that transforms spaces with elegance and sophistication. By meticulously preparing the substrate, planning the layout, using the right tools and adhesives, and following best practices for handling, cutting, and placement, you can achieve a seamless, visually stunning result. Attention to detail during grouting and finishing ensures durability and lasting beauty. With the guidance and resources provided in this guide, you are well-equipped to tackle your next bookmatch porcelain slab installation project with confidence.
Bookmatch porcelain slabs are specifically manufactured in pairs with mirrored vein patterns, allowing for a continuous, symmetrical design when installed side by side. Standard slabs do not have this mirrored effect and are typically used for uniform surfaces.
Yes, bookmatch porcelain slabs are suitable for both vertical and horizontal applications, including feature walls, floors, countertops, and splashbacks. Always check the manufacturer's recommendations for thickness and load-bearing suitability.
Dry lay the slabs first to visualize and adjust the alignment. Use reference lines and spacers during installation, and make small adjustments before the adhesive sets to achieve a perfect match.
Use a premium, highly deformable, modified thinset adhesive (Class C2S2) designed for large-format porcelain. For mesh-backed slabs, ensure the adhesive is compatible with the mesh material.
Prepare the substrate to be perfectly level and stable, use the correct adhesive, and handle the slabs with care using suction cups. Always check levels during installation and include expansion joints to accommodate movement.
