Gauged porcelain slabs have become a cornerstone in contemporary architecture and interior design, admired for their sleek appearance, durability, and versatility. These large-format, ultra-thin porcelain panels are increasingly used for countertops, flooring, wall cladding, and even furniture surfaces. However, their size and delicate nature pose significant challenges during installation. Achieving a flawless finish requires precision cutting, careful handling, and meticulous setting techniques.
This is where ETM gauged porcelain slab tools come into play. Designed specifically for the unique demands of gauged porcelain slabs, these tools enhance installation accuracy, reduce waste, and improve overall efficiency. This comprehensive article explores the features of ETM tools, how they address installation challenges, and why they have become indispensable for professionals working with gauged porcelain slabs.
Gauged porcelain slabs, also known as gauged porcelain tile panels (GPTP), are large, thin porcelain tiles typically measuring from 1 meter by 1 meter up to 3 meters by 1.6 meters or more. Their thickness ranges between 3mm and 12mm, making them much thinner than traditional porcelain tiles. Despite their thinness, they are incredibly strong and resistant to scratches, stains, and heat.
The very characteristics that make gauged porcelain slabs appealing-large size and thin profile-also create installation challenges:
- Handling and Transport: Large slabs are heavy and fragile, requiring careful handling to prevent cracks or chips.
- Precision Cutting: Unlike smaller tiles, slabs require long, straight, and clean cuts to fit around corners, fixtures, and edges.
- Flatness and Alignment: Maintaining flatness and avoiding lippage (uneven edges) is critical for aesthetic and functional reasons.
- Mortar Application: Achieving full mortar coverage without voids is essential for strong adhesion and slab longevity.
- Joint Consistency: Uniform grout joints are necessary to maintain the visual flow and structural integrity.
Traditional tile tools are often inadequate for these tasks, leading to increased breakage, wasted material, and compromised installation quality.
European Tile Masters (ETM) has developed a specialized range of tools engineered to meet the demands of gauged porcelain slab installation. These tools are designed to work seamlessly together, providing a system that improves cutting precision, slab handling, and installation accuracy.
Key ETM tools include:
- ETM Rail Cutter (3GEN)
- ETM Gauged Porcelain Tile Panels Cutting Table (3GEN)
- ETM Snap Breaker
- ETM Suction Cup Grips and Racks
- ETM Slide and Grip Systems
Each tool addresses specific challenges in the installation process, collectively enabling installers to achieve professional results with greater ease.
One of the most critical steps in gauged porcelain slab installation is making precise cuts. The ETM Rail Cutter (3GEN) is a two-piece rail cutter system designed to score and cut large slabs cleanly and accurately.
- ETM-EZ-START Technology: This innovation eliminates back-scoring, a common problem where the scoring wheel digs into the slab surface unevenly, causing chipping or rough edges. The technology ensures a smooth start to the scoring process.
- Spring-Loaded Cutter Head: The spring mechanism maintains consistent pressure on the scoring wheel, resulting in uniform scores along the entire cut length.
- Suction Cup Attachment: Three industrial-strength suction cups firmly attach the cutter rails to the slab surface, preventing any movement during scoring and ensuring perfectly straight cuts.
- Modular Rail Design: Two 6-foot rails connect to form a 12-foot cutting length, accommodating the largest slabs.
- Integrated Tape Measures: Built-in tape measures on both rails allow installers to measure and mark cuts without additional tools, reducing errors.
This system allows installers to make long, straight cuts with minimal effort and maximum precision, reducing material waste and the risk of slab damage.
Video Demonstration:How to Use the ETM Rail Cutter 3GEN
Cutting and fabricating gauged porcelain slabs require a stable, adjustable workspace. The ETM Cutting Table provides this by combining durability with versatility.
- Adjustable Aluminum Sections: The table can be adjusted to accommodate slabs up to 1.6 meters wide and 3.2 meters long, with thicknesses from 3mm to 12mm.
- Specialized Openings: Designed to work with the ETM Snap Breaker, these openings allow for clean snapping of scored slabs.
- Clamping System: Secure clamps hold the slab firmly in place, preventing movement during cutting or drilling.
- Multi-Functionality: The table supports a variety of fabrication tasks, including cutting, drilling holes for sinks or fixtures, and mitering edges.
By providing a precise and stable platform, the cutting table reduces the chance of errors during fabrication, which directly translates to more accurate installations.
Handling large porcelain slabs safely is essential to prevent damage and ensure precise placement.

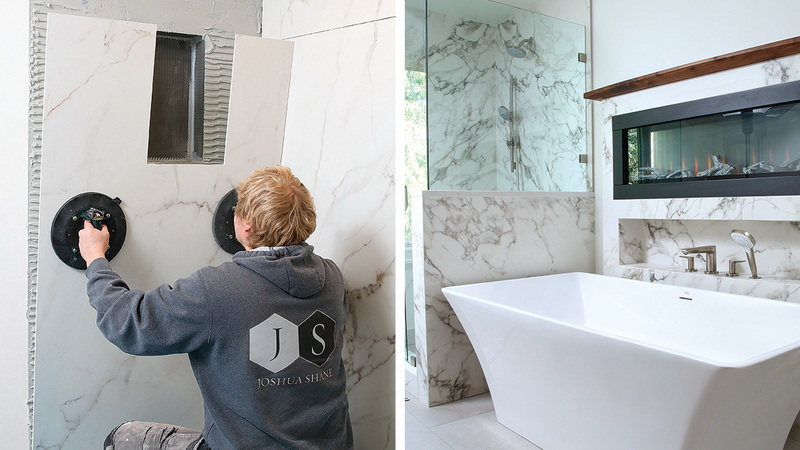

- Suction Cup Grips: These grips attach securely to the slab surface, allowing installers to lift and maneuver slabs without slipping or dropping.
- ETM Grip Racks: These racks support slabs during transport and storage, minimizing the risk of accidental damage.
- Rolling Carriage Systems: Facilitate smooth movement of slabs around the job site, enabling precise positioning before installation.
These tools improve control and safety, which in turn enhances installation accuracy by ensuring slabs are placed exactly where needed without damage or misalignment.
After scoring slabs with the rail cutter, the ETM Snap Breaker is used to separate the slab cleanly along the scoreline.
- Precision Alignment: The snap breaker aligns perfectly with the score, ensuring a straight, clean break.
- Adjustable Pressure: The pressure screw allows installers to control the amount of force applied, preventing cracks or uneven breaks.
- Small Piece Handling: Capable of breaking pieces as small as 1 inch, it supports detailed fabrication around corners and fixtures.
This tool ensures that slab edges are clean and precise, which is vital for tight-fitting joints and professional finishes.
While ETM tools primarily focus on cutting and handling, they also facilitate proper mortar application and panel setting, which are crucial for installation accuracy.
- Full Mortar Coverage: ETM tools stabilize slabs during mortar application, helping installers achieve full coverage without voids. This ensures strong adhesion and prevents future delamination.
- Walking Pattern for Air Evacuation: Installers use a walking pattern on the slab surface to compress mortar ridges and eliminate trapped air pockets, as recommended by ANSI A108.19 standards.
- Lippage Control: ETM-compatible leveling systems help maintain uniform joint heights, reducing lippage to less than 1/32 inch and ensuring a flat, even surface.
Combined with ETM tools, these installation methods improve the final quality and longevity of the porcelain slab installation.
Video Tutorial on Installation:How to Install Gauged Porcelain Tile Panels on Floors
By enabling precise cuts and clean breaks, ETM tools minimize slab damage and material waste. Installers can work faster and with greater confidence, reducing project timelines and costs.
Handling large slabs is inherently risky. ETM suction grips and racks reduce the chance of accidents and injuries by providing secure handling solutions. This safety factor also contributes to better installation accuracy, as slabs are less likely to be dropped or mishandled.
ETM tools are designed to comply with industry standards such as ANSI A108.19, which governs the installation of gauged porcelain tile panels. This ensures that installations meet or exceed quality and durability expectations.
- Always Clean the Slab Surface Before Cutting: Dust or debris can interfere with suction cups and scoring accuracy.
- Use Proper Personal Protective Equipment (PPE): Gloves, safety glasses, and dust masks protect installers during cutting and handling.
- Regularly Inspect and Maintain Tools: Sharp scoring wheels and well-maintained suction cups ensure consistent performance.
- Practice Proper Mortar Mixing and Application: Follow manufacturer guidelines to achieve optimal bonding and slab support.
- Train Installation Teams: Familiarity with ETM tools and techniques improves efficiency and reduces errors.
The installation of gauged porcelain slabs demands precision, care, and specialized equipment. ETM gauged porcelain slab tools address these needs by providing a comprehensive system for cutting, handling, and setting large-format porcelain panels with unparalleled accuracy. From the innovative ETM Rail Cutter (3GEN) and robust Cutting Table to the secure suction grips and precise Snap Breaker, these tools empower installers to achieve flawless results efficiently and safely.
By reducing waste, minimizing breakage, and ensuring tight, level joints, ETM tools not only improve installation accuracy but also enhance the overall quality and durability of porcelain slab projects. When combined with proper installation techniques and adherence to industry standards, ETM gauged porcelain slab tools are indispensable assets for any professional working with these sophisticated materials.
The ETM Rail Cutter features ETM-EZ-START technology to eliminate back-scoring, a spring-loaded cutter head for consistent pressure, and suction cups for secure attachment, enabling precise, clean cuts on large slabs with minimal effort.
Its adjustable aluminum sections and unique clamping system provide a stable workspace for cutting, drilling, and mitering slabs up to 1.6 x 3.2 meters, ensuring straight cuts and precise edge finishing.
Large porcelain slabs are fragile and heavy; ETM suction cup grips and racks provide secure handling and transport, reducing the risk of breakage and misalignment during installation.
Yes, the ETM Snap Breaker can cleanly break pieces as small as 1 inch, allowing for detailed cuts and precise fitting around obstacles.
By stabilizing slabs during cutting and handling, ETM tools facilitate proper mortar application and panel placement, helping installers achieve full mortar coverage, eliminate air voids, and maintain minimal lippage for a flawless finish.
