Cutting porcelain slabs can be a daunting task due to their hardness and brittleness. Achieving a clean cut, especially when you need to cut 1 inch all around the porcelain slab, requires the right tools, techniques, and patience to avoid cracking or chipping. This comprehensive guide will walk you through the entire process, from preparation to finishing touches, ensuring you get a professional result every time.
Porcelain slabs are dense, hard, and brittle materials commonly used for countertops, flooring, and outdoor paving. Their durability makes them resistant to heat, scratches, and stains, but also makes them prone to cracking if cut improperly. When you need to cut 1 inch all around the porcelain slab, you are essentially trimming the edges carefully without compromising the slab's integrity. This requires precision and a gentle approach because porcelain does not tolerate sudden impacts or uneven pressure.
Porcelain slabs are often thicker and larger than regular tiles, which adds to the challenge. Their size means you must handle them carefully to avoid stress fractures during cutting or transport. Additionally, the edges of porcelain slabs are particularly vulnerable to chipping, so the cutting process must be controlled and deliberate.
To cut 1 inch all around the porcelain slab without cracking it, you need specialized tools designed for porcelain:

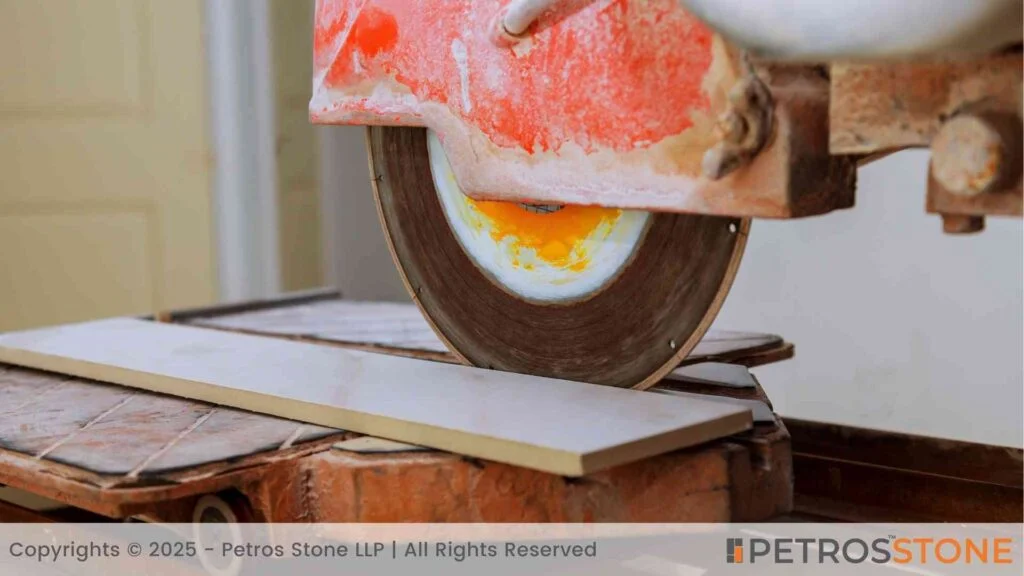

- Wet Tile Saw with Diamond Blade: The wet tile saw is the most recommended tool for cutting porcelain slabs. It uses a diamond blade cooled by water, which reduces heat and dust while providing a clean, precise cut.

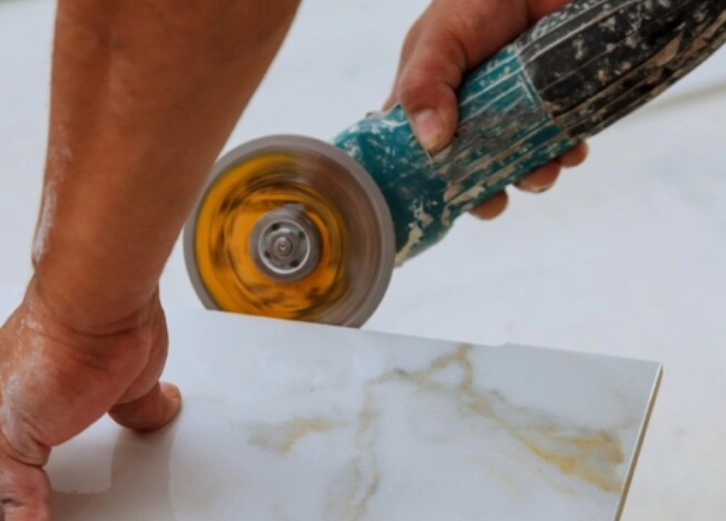

- Angle Grinder with Porcelain Diamond Blade: An angle grinder is useful for cutting curves or making small adjustments. It is portable and versatile but requires a steady hand.
- Manual Tile Cutter: Best for thin porcelain slabs and straight cuts, though less ideal for large slabs.
- Clamps or Non-slip Mats: These help secure the slab firmly during cutting to prevent movement that could cause cracks.
- Safety Gear: Always wear gloves, safety glasses, a dust mask, and hearing protection. Porcelain cutting produces fine dust and sharp edges that can be hazardous.
Before you start cutting, preparation is key. Begin by cleaning the porcelain slab thoroughly to remove any dust, dirt, or grease. A clean surface ensures your markings are accurate and your cuts are precise.
Next, measure and mark a line exactly 1 inch inside the slab's edges. Use a pencil or a grease marker, which is visible on porcelain surfaces. For accuracy, use a straightedge or ruler to draw the line around all four edges. This line will be your cutting guide.
To minimize chipping along the cut, apply painter's tape over the marked lines. The tape acts as a protective barrier and reduces the risk of the blade causing small chips.
Place the porcelain slab on a stable, flat surface such as a workbench or sturdy table. To absorb vibrations and prevent slipping, place a rubber mat or non-slip pad underneath the slab.
Use clamps or heavy objects to hold the slab firmly in place. Movement during cutting can cause uneven pressure and lead to cracks or breaks.
Using your wet tile saw or angle grinder, lightly score the slab along the 1-inch mark. This means making a shallow cut that outlines your intended cut line. Scoring acts as a guide for the blade and helps prevent it from wandering off course.
One of the most effective ways to avoid cracking when you cut 1 inch all around the porcelain slab is to make tension relief cuts. These are short cuts, about 2 to 3 inches long, made perpendicular to the main cut line at the ends of each edge.
These relief cuts release built-up stress in the slab and prevent cracks from propagating beyond the cut line. They act like “stress valves” during the cutting process.
With the wet tile saw running and water flowing to cool the blade, slowly guide the slab through the blade along the scored 1-inch line. For an angle grinder, make several shallow passes rather than trying to cut through in one go.
Avoid applying excessive pressure. Let the blade do the work. Forcing the blade can generate heat and vibrations, both of which increase the risk of cracking.
Cutting porcelain slabs generates heat, which can cause cracks if not managed. Take breaks during cutting to allow the blade and slab to cool down. This is especially important if you are making multiple cuts or working on a large slab.
After cutting, the edges may be rough or sharp. Use a tile file, sanding block, or fine-grit sandpaper to smooth the edges gently. This finishing step improves the appearance and safety of the slab edges.
Finally, clean the slab with water and a soft cloth to remove any dust or debris.

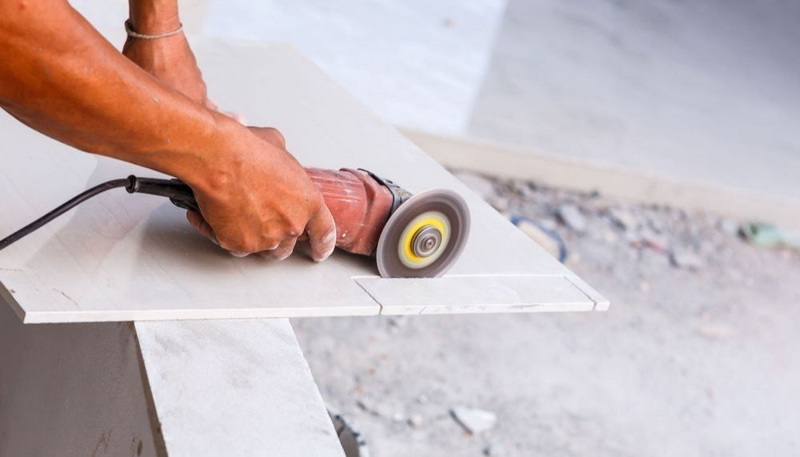

Watch a professional demonstration on how to cut porcelain slabs using an angle grinder with a diamond blade. The video shows scoring, tension relief cuts, and slow, steady cutting techniques to avoid cracking.
This video explains how to cut a narrow strip off a porcelain slab with a grinder, focusing on using guides, tension relief cuts, and cooling breaks to prevent cracks.
- Use a Continuous-Rim Diamond Blade: Continuous-rim blades produce smoother cuts and reduce chipping compared to segmented blades.
- Keep the Blade Cool with Water: Water cooling reduces heat buildup, preventing cracks and extending blade life.
- Make Multiple Shallow Passes: Instead of trying to cut through the slab in one go, make several shallow passes to reduce stress.
- Secure the Slab Firmly: Movement during cutting causes uneven pressure and cracks.
- Avoid Excessive Stretching: Maintain a comfortable position to keep steady hands and control.
- Allow Drying Time: After cutting, let the slab dry for at least 24 hours before installation to stabilize any micro-cracks.
- Use Protective Tape: Painter's tape over the cut line helps prevent chipping.
- Wear Proper Safety Gear: Porcelain dust is fine and can be harmful if inhaled; always wear a dust mask.
- Using dull or incorrect blades that cause rough cuts and excessive chipping.
- Applying too much pressure on the blade, which can crack the slab.
- Cutting without water cooling, leading to overheating and cracks.
- Not securing the slab properly, causing movement and uneven cuts.
- Rushing the cutting process, which increases the risk of mistakes and damage.
- Ignoring tension relief cuts, which are essential to prevent cracking.
If you are working on a large-scale project or require extremely precise cuts, consider these advanced techniques:
A guide rail attached to your wet tile saw or angle grinder can help you make perfectly straight cuts 1 inch from the edge. This tool stabilizes the blade and ensures accuracy.
For curved cuts or cutouts, use an angle grinder with a diamond blade and take your time. Score the cut line first, then make multiple shallow passes. Use clamps to secure the slab firmly.
For a professional finish, polish the edges of the slab after cutting using a polishing pad attached to a grinder or a hand polisher. This step enhances the appearance and reduces the risk of chipping during installation.
Porcelain slabs are heavy and fragile. After you cut 1 inch all around the porcelain slab, handle it carefully:
- Use suction cups or slab carriers designed for porcelain.
- Avoid dragging the slab on rough surfaces.
- Store slabs vertically with padding between them to prevent damage.
- Transport slabs in a secure, cushioned vehicle to avoid vibrations and shocks.
Cutting 1 inch all around the porcelain slab without cracking it is achievable with the right preparation, tools, and techniques. Always take your time, use a wet saw or angle grinder with a diamond blade, and make tension relief cuts to reduce stress on the slab. Cooling the blade with water and allowing the slab to rest between cuts are crucial steps to prevent damage. Following these guidelines will help you achieve clean, professional cuts that preserve the integrity and beauty of your porcelain slabs.
By mastering these methods, you can confidently work with porcelain slabs for your home or commercial projects, ensuring durability and aesthetic appeal.
Use a wet saw or angle grinder with a diamond blade, make tension relief cuts at the ends, cut slowly with multiple shallow passes, and keep the blade cool with water. Secure the slab firmly to avoid movement during cutting.
A wet tile saw with a continuous-rim diamond blade is ideal for straight cuts, while an angle grinder with a diamond blade works well for curved or detailed cuts.
Cracks usually occur due to excessive pressure, overheating, improper support, or cutting too quickly without tension relief cuts.
Dry cutting is not recommended as it generates heat and dust that can cause chipping and cracks. Wet cutting with water cooling is preferred.
Use a tile file, sanding block, or fine-grit sandpaper to gently smooth rough or sharp edges for a clean finish.
