Cutting large slabs of marble with precision and efficiency has become increasingly important in the stone industry. CNC (Computer Numerical Control) machines have revolutionized this process, offering unparalleled accuracy and versatility. In this comprehensive guide, we'll explore the intricacies of cutting marble slabs using CNC technology, from the basics to advanced techniques.
CNC marble cutting involves using computer-controlled machines to cut, shape, and polish marble slabs. These machines use advanced software and powerful cutting tools to create precise cuts and intricate designs that would be difficult or impossible to achieve manually.
1. Precision: CNC machines can achieve tolerances as tight as ±0.001" (0.025 mm), ensuring highly accurate cuts[7].
2. Efficiency: CNC machines can cut at speeds ranging from 6 to 30 inches per minute, significantly faster than traditional methods[7].
3. Versatility: These machines can handle a wide range of cutting tasks, from simple straight cuts to complex 3D shapes.
4. Consistency: CNC machines produce consistent results, reducing human error and material waste.
The process begins with creating a digital model of the desired marble product using Computer-Aided Design (CAD) software. This model is then converted into a set of instructions (G-code) that the CNC machine can understand and execute[8].
The marble slab is securely placed on the machine's work table. The appropriate cutting tools are loaded into the machine, and the system is calibrated to ensure accuracy[8].
Once everything is set up, the CNC machine follows the programmed instructions, moving the cutting tools along predetermined paths to shape the marble slab[8].
After the cutting is complete, the marble pieces undergo quality inspections. Any necessary adjustments can be made by modifying the CAD model and reprogramming the machine[8].

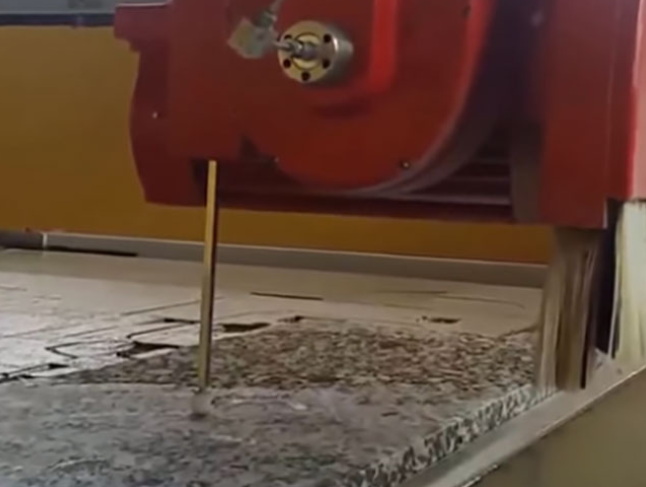

Bridge saw CNC machines are ideal for cutting large marble slabs. They feature a bridge that moves along the length of the work table, carrying the cutting head.
These advanced machines offer greater flexibility in cutting complex shapes and contours. They can move the cutting tool in five different axes, allowing for intricate 3D designs[8].
Waterjet cutting is particularly effective for marble, as it doesn't generate heat that could damage the stone. These machines use a high-pressure stream of water mixed with abrasive particles to cut through the marble[3].
1. Cutting Tools: Diamond-tipped tools are typically used due to their hardness and durability[2].
2. Spindle: The spindle holds and rotates the cutting tool. CNC marble cutting machines use powerful spindles to cut through hard stone[2].
3. Work Table: A sturdy, flat surface where the marble slab is placed for cutting.
4. Control System: The computer system that interprets the G-code and controls the machine's movements.

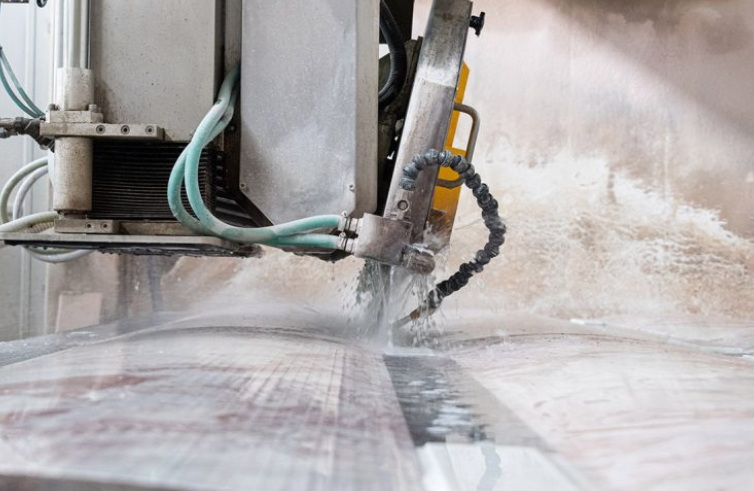

5. Coolant System: Many CNC marble cutting machines use water as a coolant to prevent overheating and reduce dust[1].
For simple straight cuts, the CNC machine moves the cutting tool in a linear path across the marble slab. This is often used for creating countertops or floor tiles.
Contour cutting involves following a predetermined path to create curved or irregular shapes. This technique is useful for creating custom-shaped tabletops or decorative pieces.

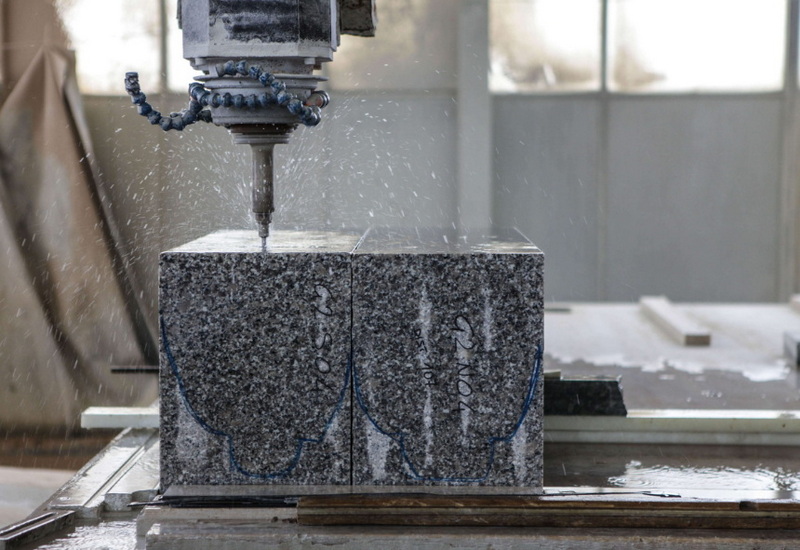

Advanced CNC machines can create three-dimensional shapes and textures in marble. This technique is often used for sculptures or intricate architectural elements.
Waterjet cutting is particularly effective for creating intricate designs or cutting very thick marble slabs. The high-pressure water stream can cut through marble up to 12 inches thick or more[3].
1. Proper Material Preparation: Ensure the marble slab is clean and properly secured to the work table before cutting.
2. Tool Selection: Choose the appropriate cutting tools based on the type of cut and the specific characteristics of the marble.
3. Cutting Speed and Feed Rate: Adjust these parameters based on the marble's hardness and the desired finish quality.
4. Coolant Management: Maintain proper coolant flow to prevent overheating and ensure a clean cut.
5. Regular Maintenance: Keep the CNC machine well-maintained to ensure consistent performance and longevity.
While CNC machines offer numerous advantages, there are some challenges to consider:
1. Initial Cost: CNC marble cutting machines can be expensive to purchase and set up.
2. Training: Operators need specialized training to program and operate these machines effectively.
3. Material Variations: Natural variations in marble can affect cutting performance, requiring adjustments to the cutting parameters.
4. Dust and Waste Management: Proper systems must be in place to handle the dust and waste generated during cutting.
The field of CNC marble cutting continues to evolve. Some emerging trends include:
1. Increased Automation: Integration of robotic systems for material handling and processing.
2. Artificial Intelligence: AI-powered systems that can optimize cutting paths and detect potential issues.
3. Sustainable Practices: Development of more energy-efficient machines and improved waste recycling methods.
4. Advanced Simulation: Better software for simulating cuts and predicting outcomes before actual cutting begins.
CNC machines have transformed the process of cutting large marble slabs, offering unprecedented precision, efficiency, and versatility. As technology continues to advance, we can expect even more innovative solutions in the field of marble cutting. Whether you're a professional in the stone industry or a DIY enthusiast, understanding the capabilities and techniques of CNC marble cutting can open up new possibilities for creating stunning marble products.
The maximum thickness depends on the specific CNC machine and the cutting method used. For example, waterjet CNC machines can efficiently cut marble slabs up to 12 inches thick, and even thicker slabs can be cut, albeit at a slower pace[3]. Bridge saw CNC machines typically handle slabs up to 8-10 inches thick, but some specialized machines can cut even thicker pieces.
While the initial investment in CNC machinery can be significant, the long-term cost-effectiveness often outweighs traditional methods. CNC cutting reduces labor costs, minimizes material waste, and increases production speed. Additionally, the precision of CNC cutting can result in higher-quality products, potentially commanding better prices in the market.
Yes, CNC machines are versatile and can cut a wide range of stone materials, including granite, limestone, quartz, and engineered stone. The cutting parameters and tools may need to be adjusted based on the specific properties of each material, but the basic principles remain the same[8].
Safety is paramount when operating CNC marble cutting machines. Some key precautions include:
- Wearing appropriate personal protective equipment (PPE) such as safety goggles, hearing protection, and dust masks.
- Ensuring proper ventilation to manage dust.
- Regular maintenance and inspection of the machine to prevent malfunctions.
- Proper training for all operators on machine use and emergency procedures.
- Implementing safety barriers or enclosures around the cutting area.
To maintain high-quality cut edges on marble:
- Use sharp, high-quality cutting tools appropriate for marble.
- Adjust cutting speed and feed rate based on the specific marble type and desired finish.
- Ensure proper coolant flow to prevent overheating and chipping.
- Consider using a sacrificial backing board to prevent chipping on the exit side of the cut.
- For intricate designs, use a step-down approach, making multiple passes at increasing depths rather than cutting full depth in one pass.
