Installing porcelain tile over a concrete slab is a transformative project that delivers a durable, stylish, and low-maintenance surface for both indoor and outdoor spaces. Whether you're renovating a kitchen, bathroom, basement, or patio, following the correct process is crucial for a long-lasting, professional finish. This comprehensive guide will walk you through every stage of installing porcelain tile over concrete slab, including preparation, materials, step-by-step instructions, troubleshooting, and maintenance. To help visualize the process, we'll include as many images and videos as possible, along with a detailed FAQ section at the end.
Porcelain tile is prized for its strength, water resistance, and versatility. When installed over a concrete slab, it creates a solid, attractive floor that can withstand heavy use and the elements. However, the success of installing porcelain tile over concrete slab depends on thorough preparation, the right materials, and careful execution[2][6][9].
- Durability: Porcelain is harder and more resistant to scratches and moisture than ceramic tile.
- Aesthetic Variety: Available in countless colors, textures, and finishes.
- Low Maintenance: Easy to clean and maintain.
- Versatility: Suitable for indoor and outdoor use, including high-traffic areas[6][9].
Before starting, gather the following:
- Porcelain tiles (ensure they're suitable for your space)
- Modified thin-set mortar (polymer-modified for porcelain)
- Grout (choose color and type for your joint width)
- Tile spacers
- Notched trowel
- Rubber mallet
- Tile cutter or wet saw
- Level and straightedge
- Chalk line
- Measuring tape
- Sponge and bucket
- Safety gear (gloves, goggles, knee pads)
- Self-leveling compound (if needed)
- Concrete primer (recommended)
- Grout sealer (optional but ideal)
- Vacuum and mop for cleaning[3][9][10][11]
- Check for Damage: Inspect for cracks, chips, or unevenness. Repair with a concrete patching compound if necessary.
- Level the Surface: Use a long level to check for dips or humps. For significant unevenness, apply a self-leveling compound[2][3][11].
- Remove Debris: Vacuum and mop to eliminate dust, dirt, and grease.
- Dry Completely: Ensure the slab is dry before proceeding[2][3][10].
- Check for Moisture: Tape a plastic sheet to the slab for 24 hours. If condensation forms, address moisture issues before tiling[6].
- Prime the Surface: Use a concrete primer compatible with your adhesive. Apply with a roller or brush for better adhesion and to seal dust[10][11][12].
- Measure and Mark: Locate the center of the room by measuring and marking the halfway points along each wall. Snap chalk lines to create perpendicular axes[3][9][8].
- Test the Layout: Place tiles along the lines without adhesive to visualize the arrangement and minimize small cuts at edges[9][8].
- Balance Cuts: Adjust layout to ensure even cuts along walls and around obstacles.
- Follow Manufacturer's Instructions: Use a mixing paddle and bucket. Add mortar to water (not vice versa) for best consistency[1][9].

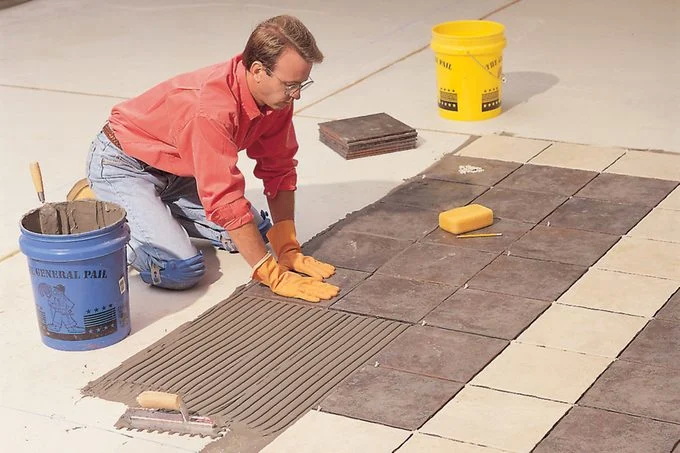

- Use Notched Trowel: Spread a layer of thinset on the slab, then comb with the notched side to create ridges. Work in small sections to prevent drying[1][9].
- Enhance Bond: For large or porcelain tiles, apply a thin layer of mortar to the back of each tile (back buttering) for full coverage and better adhesion[1][4].

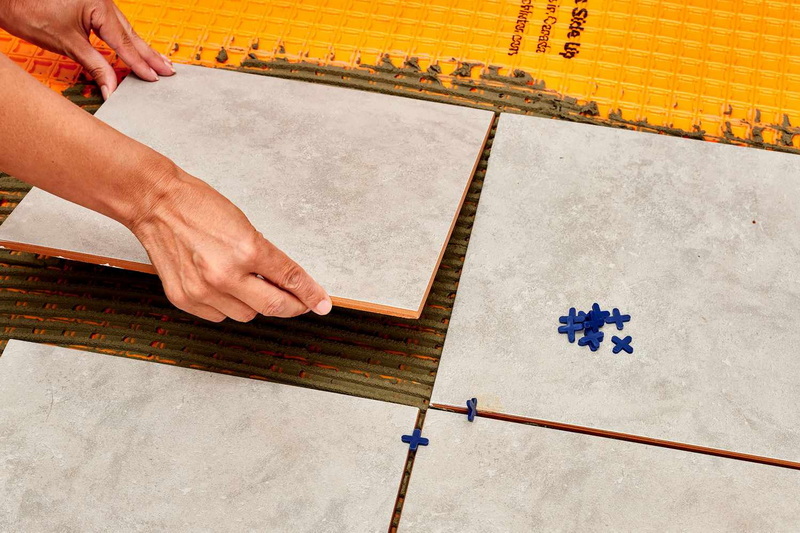

- Start at Center: Place the first tile at the intersection of your chalk lines. Press firmly into the thinset.
- Maintain Even Joints: Insert spacers between tiles for consistent grout lines. Use at least two per side; more for larger tiles[1][9].

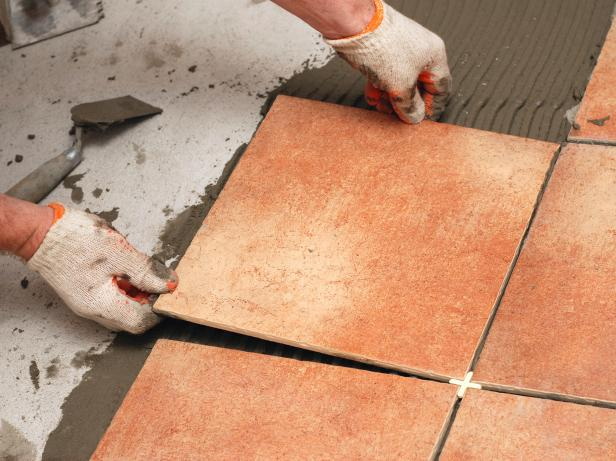

- Work Outward: Lay tiles row by row, checking alignment and level as you go. Tap gently with a rubber mallet if needed[1][2].
- Accurate Cuts: Measure the space for edge tiles and mark the cut line clearly.
- Tile Cutter for Straight Cuts: Score and snap for simple cuts.
- Wet Saw for Complex Cuts: Use a diamond blade and water cooling for curves or thicker tiles[10].
- Wear Safety Gear: Always use goggles and gloves when cutting tiles.
- Wait 24–48 Hours: Let the adhesive set fully before grouting[2][9].
- Rubber Float: Spread grout diagonally across joints, pressing firmly to fill gaps.
- Damp Sponge: Wipe away excess grout from tile surfaces before it dries.
- Cure Time: Usually 48–72 hours. Avoid walking on the floor during this period[2][9].
- Protect Against Stains: Especially important for light-colored grout or high-moisture areas[3][9].
- Regular Cleaning: Sweep or vacuum frequently to remove dirt and debris.
- Mop with pH-Neutral Cleaner: Avoid harsh chemicals that can damage grout or tile surface.
- Promptly Address Spills: Prevent staining by wiping up spills immediately.
- Inspect Grout and Seals: Reapply grout sealer as needed to maintain protection[2][3][9].
- Uneven Tiles: Usually due to poor surface preparation or insufficient thinset. Remove and reset affected tiles if possible.
- Cracked Tiles: Can result from movement in the slab or improper installation. Address slab issues before replacing tiles.
- Loose Tiles: Often caused by inadequate thinset coverage. Ensure full coverage during installation[9][10].
Installing porcelain tile over concrete slab is a rewarding project that can dramatically improve the appearance, durability, and value of your space. The key to success lies in meticulous preparation, careful planning, and using the right materials and techniques. By following the steps outlined in this guide, you'll achieve a professional-quality result that will stand the test of time, whether indoors or outdoors. Remember, patience and attention to detail are your best tools for a flawless finish.
You should wait until the concrete slab is fully cured—typically at least 28 days—before installing porcelain tile. This ensures the slab has stabilized and will not shrink or crack under your new tile[6][12].
Yes, priming the concrete slab is highly recommended. Primer enhances the bond between the slab and the tile adhesive, seals dust, and helps prevent moisture issues[10][11][12].
Use a polymer-modified thin-set mortar specifically designed for porcelain tiles. These mortars provide superior adhesion and flexibility, which is essential for a long-lasting installation[1][10].
For minor unevenness, use a self-leveling compound before tiling. For significant issues, address them with patching or professional help to ensure a flat, stable surface for your tiles[2][3][11].
Yes, you can install porcelain tiles over a heated slab, but use a flexible adhesive that can withstand temperature changes. Ensure the heating system is tested and fully operational before tiling[2][9].
