Large porcelain slabs are a modern and versatile surfacing solution, ideal for flooring, walls, countertops, and more. Their seamless appearance and durability make them a popular choice for both residential and commercial spaces. However, installing these oversized tiles requires precision and the right techniques. This comprehensive guide will walk you through the process of installing large porcelain slabs step by step.
Before diving into the installation process, it's worth understanding the benefits of large porcelain slabs:
- Seamless Appearance: Their large size minimizes grout lines, creating a sleek and uninterrupted look.
- Durability: Porcelain is dense, non-porous, and resistant to stains, scratches, and fading.
- Versatility: Suitable for floors, walls, countertops, backsplashes, and even exterior cladding.
- Low Maintenance: Easy to clean with minimal sealing required.
Before starting the installation, gather the necessary tools and materials:
- Rubber mallet
- Suction cups or tile lifters
- Spirit level
- Notched trowel
- Tile spacers
- Vibrating tool (optional)
- Angle grinder with a diamond blade
- Large porcelain slabs
- Cement-based adhesive (Class S2 recommended)
- Primer for non-porous surfaces
- Jointing compound or grout
- Lubricant for cutting/drilling
A stable and clean substrate is crucial for successful installation:
1. Ensure the surface is flat, dry, and free of debris or cracks.
2. For uneven surfaces, use a screed to level them.
3. Clean the substrate thoroughly to remove dust or grease.
The substrate should have a compression strength of at least 15–20 N/mm² for residential spaces.
Apply a primer to improve adhesion between the substrate and adhesive. This step is especially important for non-porous surfaces like concrete or pre-existing tiles.
Due to their size and weight, handling large slabs requires care:
1. Use suction cups or tile lifters to move the slabs.
2. Always have at least two people handle each slab to avoid damage.
3. Clean the back of each slab before installation.
1. Spread a layer of cement-based adhesive on both the substrate and the back of the slab using a notched trowel.
2. Ensure that adhesive ridges are straight and parallel for maximum coverage.
3. Work in small sections to prevent the adhesive from drying out before placement.

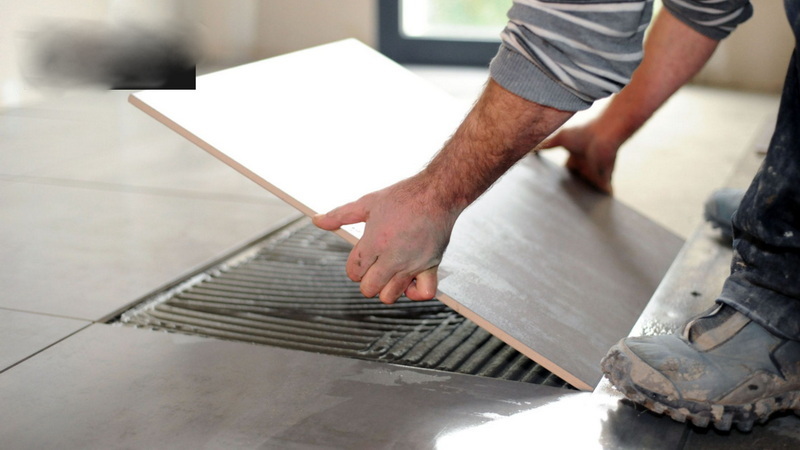

1. Carefully place the slab onto the adhesive bed using suction cups.
2. Use a rubber mallet to gently tap it into place.
3. Check levels with a spirit level to ensure uniformity.
Leave a 5mm gap between slabs using tile spacers for even joints.
Use a vibrating tool or tile beater to remove trapped air beneath the slab. This ensures proper bonding and prevents hollowness after curing.
1. After all slabs are laid and adhesive has dried (typically 24–72 hours), fill gaps with grout or jointing compound.
2. Wipe away excess grout with a damp sponge.
1. Remove spacers carefully after grout has set.
2. Clean the entire surface with water or a mild cleaner to remove any residues.
Cutting large porcelain slabs requires precision:
1. Use an angle grinder with a diamond blade for straight cuts.
2. For holes or intricate shapes, use a drill with diamond bits.
3. Always wet the cutting area to reduce dust and prevent overheating.
- Installing large porcelain slabs may seem daunting at first, but with proper preparation and tools, it can be accomplished successfully. These stunning tiles not only enhance aesthetic appeal but also offer long-lasting durability with minimal maintenance.
- By following this guide step by step, you can achieve professional results that transform your space into something extraordinary.
Here are answers to some common questions about installing large porcelain slabs:
Yes, but it requires experience with tiling projects due to their size and weight. Hiring professionals is recommended for best results.
A high-performance cement-based adhesive (Class S2) is ideal for large porcelain slabs as it provides strong bonding on non-porous surfaces.
Use a spirit level after placing each slab and adjust as needed with a rubber mallet.
Adhesive typically cures within 24–72 hours depending on environmental conditions like temperature and humidity.
Yes! They are durable, weather-resistant, and perfect for patios or exterior walls when installed correctly.
