Installing porcelain tile over a concrete slab is a fantastic way to upgrade your floors, offering both aesthetic appeal and long-lasting durability[1][4]. Whether you're renovating a bathroom, kitchen, or outdoor space, this comprehensive guide provides a step-by-step approach to ensure a professional-looking result[1][4][10].
Before you start laying tile, careful planning and preparation are essential. This involves assessing the concrete slab, gathering the necessary materials and tools, and designing the layout[1][2][10].
- Check for Cracks and Damage: Inspect the concrete slab for any cracks, holes, or signs of damage. Small cracks can be filled with a concrete patching compound, but larger cracks may indicate structural issues that need professional attention[1].
- Evaluate Levelness: Use a level to check the flatness of the concrete surface. Ideally, the surface should be flat within +/- 3mm over a 2m span[7].
- Moisture Test: Perform a moisture test to ensure the concrete is dry enough for tiling. A hygrometer can measure relative humidity (RH), which should be between 45-75%[7]. If moisture levels are too high, a damp-proof membrane (DPM) may be necessary[3][7].
Here's a list of materials and tools you'll need for the installation:
- Porcelain Tiles
- Thin-Set Mortar (modified for porcelain tiles)[1][3]
- Grout
- Concrete Patching Compound
- Damp-Proof Membrane (if needed)[3][7]
- Tile Spacers[1][11]
- Leveling System (optional, but recommended)[6][9]
- Mixing Bucket
- Mixing Paddle
- Notched Trowel
- Rubber Float
- Grout Sponge
- Tile Cutter or Wet Saw
- Safety Glasses
- Gloves
- Dust Mask
- Measuring Tape
- Pencil
- Hygrometer (for moisture testing)[7]
- Rubber Mallet[2]
- Measure the Area: Accurately measure the area you plan to tile to determine how many tiles you'll need[1].
- Choose a Pattern: Decide on the tile pattern. Common patterns include straight lay, offset (staggered), herringbone, and diagonal. The pattern significantly affects the overall look of the floor[1].
- Dry Run: Lay out the tiles without mortar to visualize the pattern and make any necessary adjustments. Start from the center point of the room and work outwards[2]. This helps ensure a balanced layout and minimizes the need for small, awkward cuts along the edges[2].
Proper surface preparation is critical for ensuring the mortar adheres correctly and the tiles remain stable over time[1][11].
- Remove Debris: Sweep or vacuum the concrete surface to remove any loose debris, dust, or dirt[1].
- Scrub the Surface: Use a scrub brush and a cleaning solution to thoroughly clean the concrete. This removes any grease, oil, or stains that could interfere with the mortar's adhesion[1].
- Rinse and Dry: Rinse the surface with clean water and allow it to dry completely. The concrete should be clean and free of any contaminants[1].
- Apply Patching Compound: For small cracks and imperfections, apply a concrete patching compound. Follow the manufacturer's instructions for mixing and application[1].
- Smooth the Surface: Use a trowel to spread the patching compound evenly over the affected areas. Allow it to dry completely, then sand it smooth to create a flat surface[1].
- Self-Leveling Compound: For more significant leveling issues, consider using a self-leveling compound. Pour the compound over the concrete and use a gauge rake to spread it evenly. Allow it to dry completely before proceeding[14].
- Moisture Testing: Use a hygrometer to measure the moisture level in the concrete. Relative humidity should be between 45-75%[7].
- Damp-Proof Membrane (DPM): If the moisture level exceeds 75%, apply a damp-proof membrane (DPM) to prevent moisture from migrating through the concrete and affecting the tile installation[3][7]. Follow the manufacturer's instructions for applying the DPM, ensuring complete coverage of the concrete surface[7].
With the concrete slab properly prepared, you can begin installing the porcelain tiles. This involves mixing the thin-set mortar, applying it to the concrete, and carefully laying each tile[1][11].
- Choose the Right Mortar: Use a modified thin-set mortar specifically designed for porcelain tiles. This type of mortar provides optimal bonding and reduces the risk of cracks forming in the tiles[1][3].
- Mixing: In a clean mixing bucket, add water to the thin-set mortar powder according to the manufacturer's instructions[11]. Use a mixing paddle attached to an electric drill to thoroughly mix the mortar until it reaches a smooth, consistent consistency[2].
- Slake Time: Allow the mortar to slake (rest) for the time specified by the manufacturer, usually around 5-10 minutes. This allows the chemicals in the mortar to properly activate[1][11].
- Re-mix: After slaking, remix the mortar briefly to ensure it is smooth and ready to use[2].

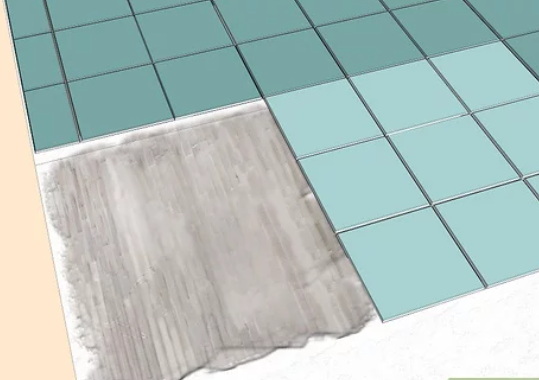

- Apply to the Floor: Use the flat side of the notched trowel to spread a thin, even layer of mortar over a small section of the concrete floor, typically enough for one or two tiles at a time[11].
- Comb the Mortar: Use the notched side of the trowel to comb the mortar at a 45-degree angle, creating ridges that will help the tile adhere properly[11]. The size of the notches on the trowel should match the manufacturer's recommendations for the tile size[11].
- Back Buttering: For large tiles, apply a thin layer of mortar to the back of each tile (back buttering) to ensure full coverage and a strong bond[5][11].

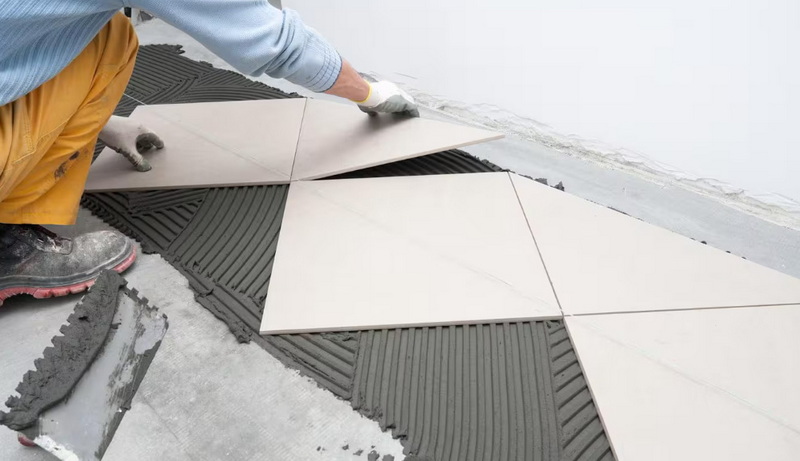

- Positioning: Carefully place the first tile onto the mortar, aligning it with your layout marks[11].
- Pressing: Gently press the tile into the mortar with a slight twisting motion to ensure good contact[2].
- Leveling: Use a level to check that the tile is level with the surrounding surface. If necessary, gently tap the tile with a rubber mallet to adjust its position[2].
- Spacers: Insert tile spacers between the tiles to maintain consistent grout lines. Use at least two spacers on each side of the tile[11].
- Measuring: Measure the area where the tile needs to be cut, accounting for grout lines[5].
- Marking: Use a pencil to mark the cutting line on the tile[5].
- Cutting: Use a tile cutter for straight cuts. For curved or complex cuts, use a wet saw[5]. Always wear safety glasses when cutting tiles[2].
- Smoothing: After cutting, smooth the edges of the tile with a rubbing stone to remove any sharp or rough spots[5].
- Spacers: Tile spacers ensure consistent grout lines and prevent tiles from shifting during installation[11].
- Leveling Systems: Leveling systems consist of clips and wedges that help maintain a perfectly level surface, especially when using large-format tiles[6][9]. Insert the clips under the tiles as you lay them, then insert the wedges to tighten and level the tiles[6][9]. After the mortar has dried, the clips can be broken off at the grout line[6].
After the mortar has fully cured (usually after 24-48 hours), you can proceed with grouting and finishing the tile installation[1].
- Mixing: Mix the grout according to the manufacturer's instructions. Add water to the grout powder in a clean bucket and mix until it reaches a smooth, creamy consistency[1].
- Application: Use a rubber float to spread the grout diagonally across the tiles, forcing it into the grout lines. Make sure to fill all the gaps completely[1].
- Remove Excess Grout: Use the edge of the rubber float to remove excess grout from the tile surface[1].
- Initial Wipe: After about 15-30 minutes, use a damp grout sponge to wipe the tile surface, removing any remaining grout residue. Rinse the sponge frequently in clean water[1].
- Haze Removal: After a few hours, a haze of grout may appear on the tile surface. Use a clean, dry cloth to buff the tiles and remove the haze[1].
- Final Cleaning: After 24 hours, clean the tiles with a mild detergent and water to remove any remaining residue[1].
- Apply Sealant: Apply a grout sealant to protect the grout from stains and moisture. Use a small brush or applicator to apply the sealant to the grout lines[1].
- Curing: Allow the sealant to cure according to the manufacturer's instructions, usually about 24-72 hours[1].
Proper curing and maintenance will ensure the longevity and appearance of your tile floor[1].
- Curing Time: Allow the grout to cure fully before exposing the floor to heavy traffic or moisture. This usually takes about 72 hours[1].
- Regular Cleaning: Clean the tile floor regularly with a mild detergent and water. Avoid using harsh chemicals or abrasive cleaners that can damage the tile or grout[1].
- Sealing: Reapply grout sealant every 1-2 years to maintain its protective properties[1].
Installing porcelain tile over a concrete slab is a rewarding project that enhances the beauty and durability of your space. By following these detailed steps, you can achieve a professional-looking tile floor that will last for years. Remember, careful planning, proper surface preparation, and the right materials are key to a successful installation. With patience and attention to detail, your new porcelain tile floor will be a stunning addition to your home.
To prepare a concrete slab for tiling, start by cleaning the surface thoroughly to remove any dirt, debris, or contaminants[1][11]. Repair any cracks or imperfections with a concrete patching compound, ensuring the surface is smooth and level[1]. Perform a moisture test to check the dryness of the concrete and apply a damp-proof membrane if necessary[7].
Use a modified thin-set mortar specifically designed for porcelain tiles[1][3]. These mortars offer superior adhesion and flexibility, which is crucial for preventing cracks and ensuring a long-lasting installation[1][3]. Ensure the mortar meets or exceeds ANSI A118.4 or A118.11 standards[1][3].
Porcelain tiles can be cut using a tile cutter for straight cuts or a wet saw for curved and complex cuts[5]. When using a tile cutter, score the tile surface along the cutting line and then apply pressure to snap the tile[5]. With a wet saw, use a diamond blade and feed the tile slowly through the blade, keeping it cool with water[5]. Always wear safety glasses and gloves when cutting tiles[2].
To ensure proper leveling with large format porcelain tiles, use a tile leveling system[6][9]. These systems typically consist of clips and wedges that help maintain a uniform height and eliminate lippage between tiles[6][9]. Insert the clips under the tiles as you lay them, then insert the wedges to tighten and level the tiles[6][9]. After the mortar has dried, the clips can be broken off at the grout line[6][9].
Grout lines should be sealed every 1-2 years to protect them from stains, moisture, and mildew[1]. Clean the grout lines thoroughly before applying a grout sealant with a small brush or applicator[1]. Allow the sealant to cure according to the manufacturer's instructions[1]. Regular sealing helps maintain the appearance and longevity of the tile installation[1].
