Installing porcelain tile over a concrete slab can transform your space, providing a durable and aesthetically pleasing flooring solution. This comprehensive guide will walk you through the process, ensuring a professional-looking result that will stand the test of time.
Before you begin the installation process, it's crucial to properly prepare both your workspace and the concrete slab. This preparation phase is vital for ensuring a successful tile installation.
First, examine the condition of your concrete slab. It should be fully cured, which typically takes about 28 days for new concrete[5]. The slab must be clean, level, and free from any cracks or damage. If there are any imperfections, address them before proceeding.
Thoroughly clean the concrete surface to remove any dirt, dust, or debris. Use a vacuum cleaner followed by a damp mop to ensure the surface is spotless. Allow the slab to dry completely before moving forward.
Excessive moisture in the concrete can lead to tile failure. Conduct a moisture test using a moisture meter or by taping a plastic sheet to the concrete and checking for condensation after 24 hours[5]. If moisture is present, you may need to apply a moisture barrier before tiling.
Priming the concrete slab is an essential step that should not be skipped. It helps to improve adhesion between the concrete and the tile adhesive. Use a suitable primer, such as Prime Plus, diluted in a 1:3 ratio with water[9].
Before you start laying tiles, it's important to plan your layout carefully. This will help you achieve a balanced look and minimize the need for cutting tiles.

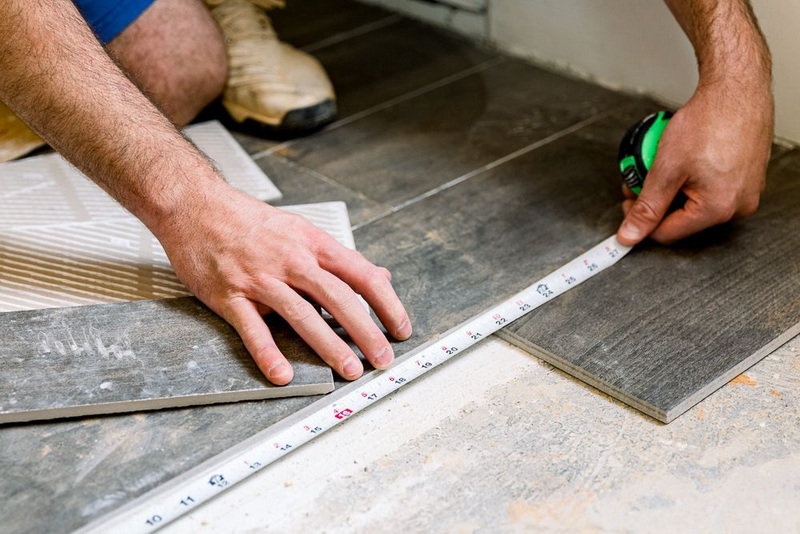

Measure the length and width of your room to find the center point. This will be your starting point for laying tiles[3].
Perform a dry run by laying out your tiles without adhesive. This allows you to adjust your layout and ensure you're happy with the pattern before committing to it[3].
Now that you've prepared the surface and planned your layout, it's time to start the actual installation process.
Choose a high-quality adhesive suitable for porcelain tiles and concrete substrates. Mix the adhesive according to the manufacturer's instructions, typically using cold, clean water and an electric drill with a paddle mixer attachment[3].
Using a notched trowel, spread the adhesive evenly over a small area of the concrete slab. Work in manageable sections to ensure the adhesive doesn't dry before you can place the tiles[1].

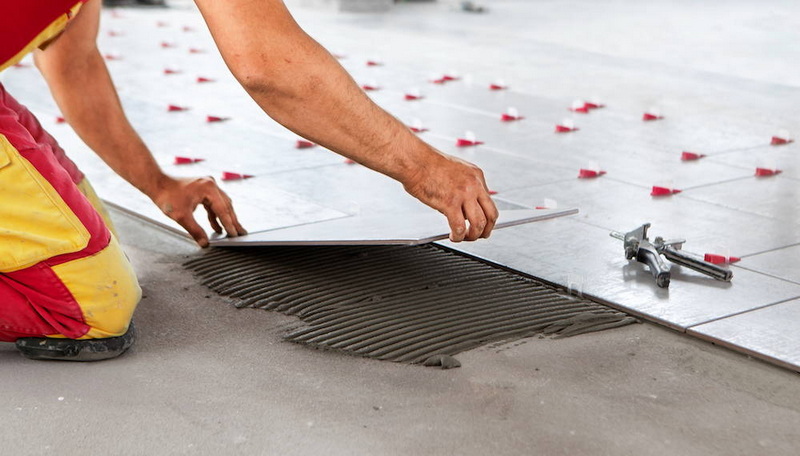

Starting from your center point, begin laying the tiles. Press each tile firmly into the adhesive, using spacers to maintain consistent gaps between tiles. Use a rubber mallet to gently tap the tiles into place, ensuring they're level[3].
For edges and corners, you may need to cut tiles. Use a wet saw or tile cutter to achieve clean, precise cuts. Always wear safety goggles and gloves when cutting tiles.
Once all tiles are in place, allow the adhesive to set according to the manufacturer's instructions. This typically takes 24 to 48 hours[1].
After the adhesive has fully set, it's time to apply grout to fill the gaps between tiles.
Select a grout that's suitable for the width of your tile gaps and the location of your installation (e.g., indoor or outdoor)[4].
Mix the grout according to the manufacturer's instructions. Using a rubber float, spread the grout diagonally across the tile joints, ensuring they're fully filled[1].
Before the grout dries, use a damp sponge to remove excess grout from the tile surfaces. Be careful not to remove grout from the joints[1].
Once the grout has cured (usually after 72 hours), apply a grout sealer to protect it from stains and moisture[4].
If you removed baseboards before tiling, now is the time to reinstall them. This will give your tiled floor a polished, finished look.
For larger areas, it's crucial to incorporate expansion joints. These should be placed every 20-25 feet in each direction for interior installations, and every 8-12 feet for exterior installations[2].
When installing porcelain tiles on an outdoor concrete slab, use a leveling compound like BAL Level Out to ensure a perfectly even surface. This product can be used in depths from 2mm to 20mm and is ready for tiling in just 3 hours[10].
To keep your porcelain tile floor looking its best:
- Sweep or vacuum regularly to remove dirt and debris
- Mop with a pH-neutral cleaner as needed
- Avoid harsh cleaning chemicals that could damage the grout or tile surface
- Address any spills promptly to prevent staining
Installing porcelain tile over a concrete slab is a rewarding project that can dramatically improve the look and functionality of your space. By following these steps and taking the time to properly prepare, plan, and execute the installation, you can achieve professional-looking results that will last for years to come.
Remember, the key to a successful tile installation lies in thorough preparation, careful planning, and attention to detail throughout the process. With patience and the right techniques, you can create a beautiful tiled surface that enhances the value and aesthetics of your home.
While it's possible to tile directly onto concrete, it's not recommended. Proper preparation, including cleaning, priming, and addressing any imperfections in the concrete, is crucial for a long-lasting tile installation[5][9].
You should wait until the tile adhesive has fully set before grouting. This typically takes 24 to 48 hours, but always check the manufacturer's instructions for specific timing[1].
Most porcelain tiles don't require sealing as they are naturally dense and non-porous. However, if you're using unglazed porcelain tiles or if you want extra protection, you can apply a penetrating sealer[4].
For minor unevenness, you can use a self-leveling compound before tiling. For outdoor installations or more significant unevenness, products like BAL Level Out can be used to create a level surface[10].
Yes, you can install porcelain tiles over a heated concrete slab. However, you'll need to use a flexible adhesive that can withstand the temperature changes. Also, ensure that the heating system has been run through a complete heating cycle before tiling[2].
