Tiling over a concrete slab can be a challenging task, especially when dealing with cracks in the slab. Cracks can lead to tile cracking if not properly addressed. In this article, we will explore the best practices for preventing tile cracking when laying porcelain tile on a concrete slab.

Introduction to Tiling Over Concrete Slabs

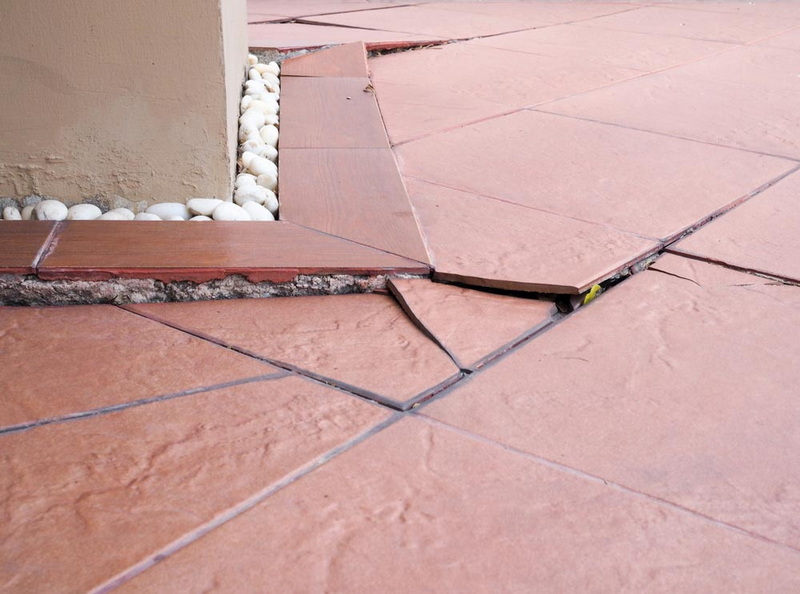

Concrete slabs are common substrates for tile installations due to their durability and strength. However, they can develop cracks over time due to shrinkage, settlement, or structural issues. These cracks can transmit to the tile surface, causing it to crack. To prevent this, it's essential to prepare the slab properly before laying the tile.

Preparing the Concrete Slab

Before starting the tiling process, ensure the concrete slab is clean, dry, and free of any debris. This step is crucial for achieving a strong bond between the slab and the tile.

Step 1: Cleaning the Slab

Use a broom or a vacuum cleaner to remove any dirt or debris from the slab. Then, apply a concrete cleaner to remove any stubborn stains or oils. Rinse the slab thoroughly with water and let it dry completely.

Step 2: Filling Cracks

For small cracks, use a concrete patching compound to fill them. Ensure the compound is fully cured before proceeding.

Using Crack Isolation Membranes

Crack isolation membranes are designed to prevent cracks in the concrete slab from transferring to the tile surface. These membranes are flexible and can absorb movement in the slab.

Choosing the Right Membrane

There are several types of crack isolation membranes available, including composite sheet membranes and liquid-applied membranes. For example, the NobleSeal CIS is a popular choice among tile installers due to its effectiveness and ease of application[1].

Applying the Membrane

1. Cutting the Membrane: Cut the membrane to extend at least two tile widths on both sides of the crack.

2. Applying Thinset: Spread a layer of thinset over the slab where the membrane will be applied.

3. Laying the Membrane: Place the membrane over the thinset and use a 75-lb roller to flatten it, ensuring no air pockets are trapped[1].

Laying Porcelain Tile on Concrete Slab

Porcelain tiles are ideal for concrete slabs due to their durability and resistance to cracking. Here's how to lay them effectively:

Choosing the Right Tiles

Porcelain tiles are the sturdiest option for tiling over concrete slabs. They are less prone to cracking compared to other types of tiles[2].

Preparing the Substrate

Ensure the substrate is stiff enough to support the tiles. If necessary, use a combination of plywood and cement board to achieve a stable surface[2].

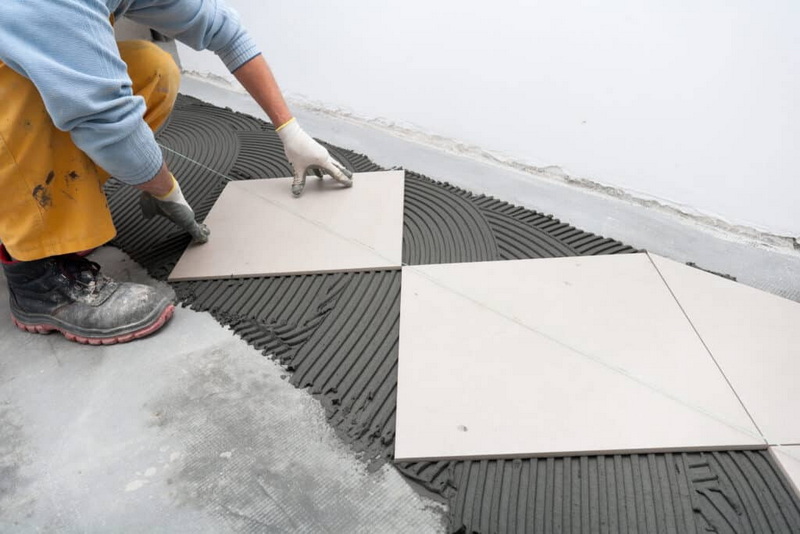

Applying Tiles

1. Laying Tiles: Use a notched trowel to apply thinset to the back of the tile and press it firmly into place.

2. Spacing Tiles: Leave a small gap between tiles for grouting and to allow for expansion.

Preventing Cracks at Expansion Joints

Expansion joints are critical areas where tiles meet walls or other flooring types. These areas are prone to cracking due to thermal expansion.

Using Expansion Joints

1. Identifying Expansion Areas: Determine where expansion joints are needed, typically at the edges of the room or where different flooring types meet.

2. Applying Expansion Joints: Use a flexible sealant to fill these joints, allowing for movement without causing cracks in the tiles[2].

Conclusion

Preventing tile cracking when laying porcelain tile on a concrete slab requires careful preparation and the use of crack isolation membranes. By following these steps and using the right materials, you can ensure a durable and crack-free tile installation.

FAQ

Here are some frequently asked questions related to preventing tile cracking on concrete slabs:

1. What is the best type of tile for concrete slabs?

Answer: Porcelain tiles are the best choice for concrete slabs due to their durability and resistance to cracking[2].

2. How do I choose the right crack isolation membrane?

Answer: Choose a membrane that is suitable for your specific application, such as the NobleSeal CIS for its effectiveness in absorbing slab movement[1].

3. Can I tile over structural cracks in a concrete slab?

Answer: No, structural cracks require evaluation by a structural engineer and repair with dowels and epoxy before tiling[3].

4. How often should I inspect my tile installation for cracks?

Answer: Regularly inspect your tile installation, especially after significant weather changes or if you notice any movement in the slab.

5. What are the benefits of using a vapor barrier under tiles?

Answer: A vapor barrier helps reduce moisture-related issues, such as mold growth and tile cracking, by preventing moisture from rising from the slab[2].
