Installing porcelain tiles on a concrete slab is a popular choice for both indoor and outdoor spaces due to its durability and aesthetic appeal. However, achieving a successful installation requires careful preparation and execution. In this article, we will guide you through the process of installing porcelain tiles on a concrete slab, highlighting key steps, materials, and considerations.
Porcelain tiles are made from a type of ceramic material that is denser and less porous than regular ceramic tiles. This makes them highly resistant to water, stains, and heavy foot traffic, making them ideal for bathrooms, kitchens, and outdoor areas like patios and walkways.
- Durability: Porcelain tiles are incredibly durable and can withstand harsh weather conditions and heavy use.
- Low Maintenance: They are easy to clean and maintain, requiring only occasional sweeping and mopping.
- Aesthetic Versatility: Available in a wide range of colors, patterns, and styles, porcelain tiles can mimic natural stone, wood, or other materials.
Before installing porcelain tiles, it's crucial to ensure the concrete slab is properly prepared. This involves cleaning, leveling, and priming the surface.
The concrete slab must be free of dirt, dust, and any old adhesives. Use a wire brush or a power washer to clean the surface thoroughly. Ensure the slab is completely dry before proceeding.
Use a spirit level to check for any unevenness. If necessary, apply a self-leveling compound to create a smooth surface. Follow the manufacturer's instructions for mixing and application.
Apply a primer to enhance the bond between the concrete and the tile adhesive. Ensure the primer is compatible with your adhesive and apply it evenly with a roller or brush.
With the concrete slab prepared, you can proceed to install the porcelain tiles.
Use a polymer-modified thinset mortar for better durability. Mix the adhesive according to the manufacturer's instructions, typically with cold, clean water.

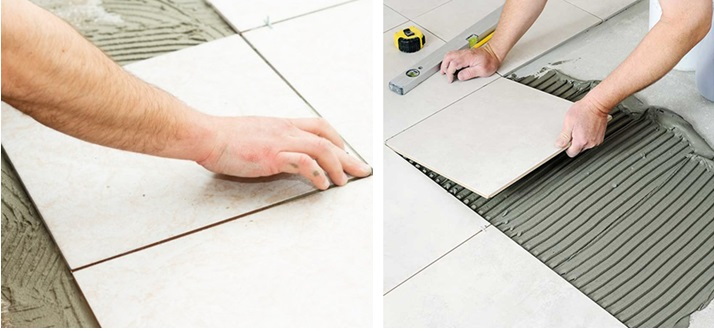

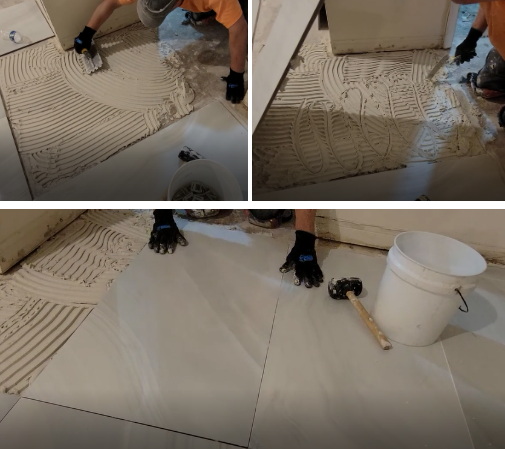

1. Apply Mortar to the Floor: Use a notched trowel to spread the mortar evenly across the concrete.
2. Back Butter the Tiles: Apply a thin layer of mortar to the back of the tiles to ensure a strong bond.
3. Place the Tiles: Position the first tile along a straight line, using spacers to maintain even grout lines. Use a rubber mallet to tap the tile into place.
After the mortar has set (usually 24 hours), grout the tiles using a rubber float. Ensure the grout is pressed firmly into the joints and wipe off excess grout with a damp sponge.
If the concrete slab has high moisture levels, consider applying a damp proof membrane (DPM) before tiling. This is especially important in areas like basements or where underfloor heating is used.
Ensure that tile joints align with expansion joints in the concrete. Use a flexible sealant instead of grout over these joints to accommodate movement.
Installing porcelain tiles on a concrete slab can be a rewarding DIY project if done correctly. Proper preparation of the concrete surface and careful execution of each step are crucial for a successful installation. By following these guidelines, you can achieve a beautiful and durable porcelain tile installation that enhances the aesthetic and value of your space.
Yes, you can install porcelain tiles directly on concrete, but it's essential to ensure the concrete is clean, level, and free of cracks. Applying a primer can enhance the bond between the concrete and tile adhesive.
New concrete should cure for at least 28 days before tiling to prevent moisture issues that could affect the tile installation.
A DPM is recommended if the concrete has high moisture levels. It helps prevent moisture from affecting the tile adhesive and ensures a longer-lasting installation.
Yes, you can use underfloor heating with porcelain tiles indoors, but it's not recommended for outdoor installations. Ensure the screed has fully cured before installing a DPM if using underfloor heating.
Align tile joints with expansion joints in the concrete and use a flexible sealant instead of grout to accommodate movement and prevent cracking.
