Porcelain slab fabrication demands precision, specialized equipment, and adherence to technical protocols to transform dense, brittle slabs into flawless countertops, wall panels, and architectural features. This comprehensive guide explores the tools, techniques, and best practices for professional-grade fabrication, incorporating advanced methodologies from leading manufacturers.
Porcelain's hardness (rated 7–8 on the Mohs scale) requires diamond-embedded blades and advanced machinery to prevent chipping or cracking.
Computer Numerical Control (CNC) milling machines excel at creating intricate cutouts for sinks, cooktops, and edge profiles. Key specifications include:
- RPM Range: 3,000–7,000 RPM depending on the task (e.g., 1,800–2,200 RPM for drilling 35 mm holes)[1][7].
- Feed Rates: Adjustable from 20 mm/min for holes to 3,000 mm/min for polishing edges[1].
- Suction Cup Positioning: Ensure cups are evenly distributed, close to cutting areas, and avoid bending during fabrication[1].

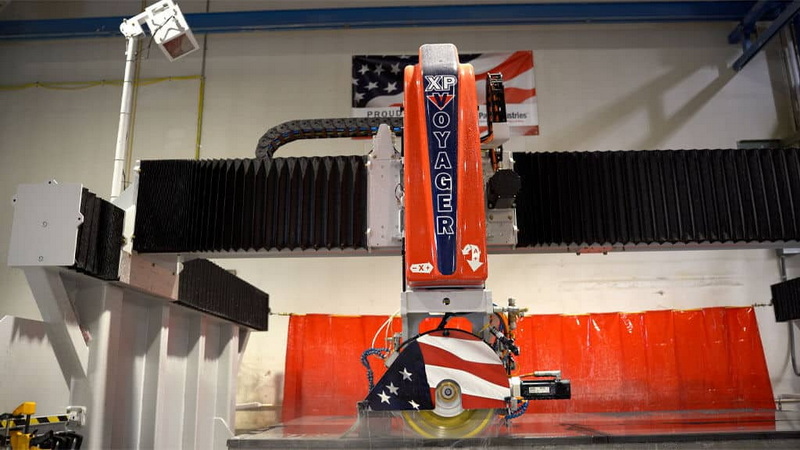

Ideal for straight and miter cuts:
- Blade Diameter: 300–400 mm for 12 mm slabs[2].
- Feed Rate: 400–500 mm/min for straight cuts, reduced to 50% speed when entering/exiting slabs[1].
- Cooling: Continuous water flow to minimize dust and blade wear[1][3].
Combine high-pressure water (up to 3,000 Bar) and abrasive garnet for precision:
- Pre-Cut Preparation: Trim 20–30 mm from slab edges to relieve tension[1][3].
- Cutout Strategy: Drill a starter hole in the center of planned openings before connecting to edges[1].
- Segment Height: 10 mm for optimal durability[8].
- Sharpening: Use quartz or aluminum oxide blocks every few cuts[1].

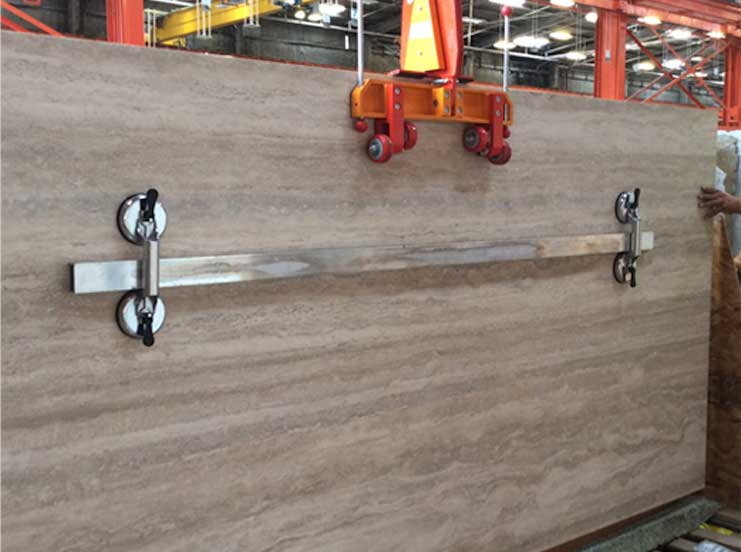

Porcelain slabs (often 120"x60" and 6–12 mm thick) require careful handling to prevent flexing or breakage.
- Gantry Cranes with Canvas Slings: For multi-slab transport; avoid metal slings to prevent surface scratches[3].
- Adjustable Suction Frames: Require 2–4 personnel depending on slab thickness[3].
- A-Frame Trolleys: Stabilize slabs vertically during movement[1].
- Pressure-Gauge Suction Cups: Ensure 90–100% grip efficiency to avoid drops[1][7].
- Hole Preparation: Start with corner holes for sink cutouts, maintaining a 10 mm internal radius[1][3].
- Angle Grinders: Expand holes using 100–200 mm/min feed rates[1].
- Beveling: 5,000–7,000 RPM with 1,000–2,000 mm/min feed rates[1].
- Polishing: 3,000–5,500 RPM for mirror finishes[1].
- Perimeter Trimming: Remove 20–30 mm from all edges using bridge saws to relieve internal stresses[2][3].
- Cut Sequencing: Long sides first, then short sides, at 8–10"/min initial/final speeds[3].
- Class S2 Mortar: High-bond cement for vertical/horizontal installations[1].
- Leveling Spacers: Maintain 2–3 mm gaps for thermal expansion[1].
1. Slab Inspection: Check for cracks or defects before securing to the cutting bed[3][7].
2. Toolpath Programming: Avoid interrupted cuts; start from slab exteriors[3].
3. Coolant Management: Position water feeds inside/outside tools to prevent overheating[7].
- Abrasive Flow: 350–450 gr/min with 80-mesh garnet[1].
- Support Mesh: Ensure intact backing to prevent fractures during cutting[1].
- Stable Surfaces: Use vibration-dampened tables to minimize tool chatter[1][3].
- Dust Mitigation: Install water curtains or HEPA vacuums near cutting stations[1].
- Blade Alignment: Check for warping every 50 cuts[1].
- Sealer Application: Use Porcelain Plus Sealer post-polishing to fill micro-pores[8].
- Destress Cuts: Trim all edges (≥20 mm) to eliminate residual stresses[2][3].
- Backing Reinforcement: Apply 12 mm foam/rubber backing to sub-12 mm slabs before cutouts[2][3].
1. Mark lines with grease pencils.
2. Secure slabs using suction clamps.
3. Cut at 400–500 mm/min with 300–350 mm blades[1][2].
1. Drill 35 mm starter holes.
2. Connect holes via curved paths to reduce stress concentration[3].
- Beveling: Use 45° heads at 5,000 RPM[1].
- Polishing: Progress through 50–3,000 grit diamond pads[8].
- Adhesive Application: Double-spread mortar on slab and substrate[1].
- Leveling: Adjust spacers every 12" to ensure flatness ≤1/16" per 10 ft[7].
- Vein Tech®: Patented systems for hyper-realistic marble veining (as seen in Infinity Porcelain)[4].

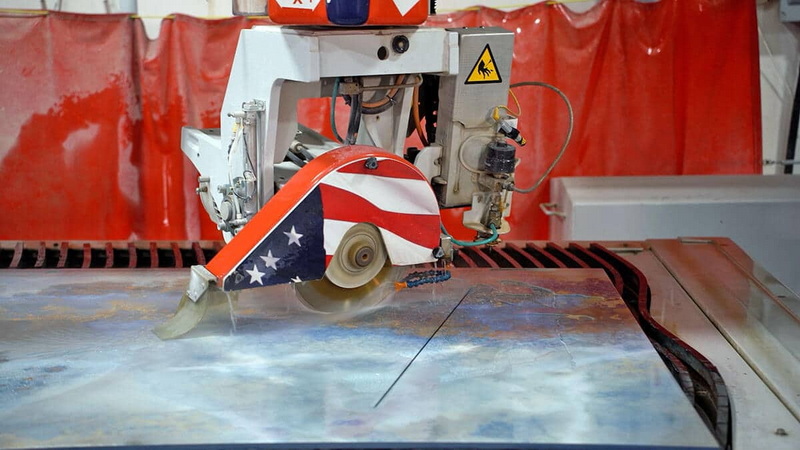

- SABERjet™ XP: 5-axis waterjet saws with 27 hp motors for complex geometries[5].
Mastering porcelain slab fabrication requires harmonizing cutting-edge tools like CNC mills, waterjets, and diamond blades with rigorous protocols for handling, cutting, and finishing. By integrating manufacturer guidelines—such as Caesarstone's 50% entry/exit feed rates[1] and EnviSurfaces' destressing cuts[3]—fabricators can achieve chip-free edges, precise joints, and enduring installations.
Use 400 mm diamond blades at 2,000–2,150 RPM with 1.5 m/min feed rates[2][8].
Maintain ≥50 mm distance from edges and use curved cutting paths[1][3].
Yes, but reinforce with 12 mm foam backing before fabrication[2][3].
Fire at 1,200–1,400°C (2,192–2,552°F) for maximum hardness[6].
Use CNC profiling heads at 3,000–5,500 RPM with 1,500–3,000 mm/min feeds[1].
