Porcelain slabs have become a hallmark of modern design, prized for their durability, sleek aesthetics, and versatility in applications ranging from countertops and wall panels to floors and facades. However, their dense, brittle nature and large format present unique challenges that demand specialized tools and expert techniques. This comprehensive guide explores the essential porcelain slab fabrication tools, advanced equipment, and best practices that professionals rely on to achieve flawless results.
Porcelain slabs are engineered to be exceptionally hard and dense, often measuring 6–12 mm thick and up to 120"x60" in size. Their impressive strength (Mohs hardness 7–8) makes them resistant to scratches, stains, and heat. However, these same properties make them challenging to fabricate. Professionals must use porcelain slab fabrication tools designed to cut, shape, and finish porcelain without causing chips, cracks, or surface defects.

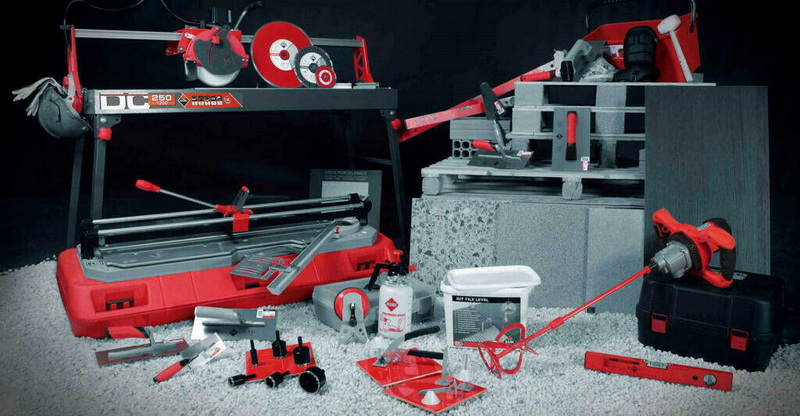

Wet tile saws equipped with diamond-embedded blades are the cornerstone of porcelain slab cutting. The water-cooling system prevents overheating and minimizes dust, which is crucial for maintaining clean, chip-free edges. Diamond blades are engineered to handle porcelain's density, providing smooth, precise cuts where standard blades would fail.
Angle grinders fitted with diamond blades or cup wheels are essential for making curved cuts, intricate shapes, and edge finishing. They offer flexibility for on-site adjustments and detailed work.

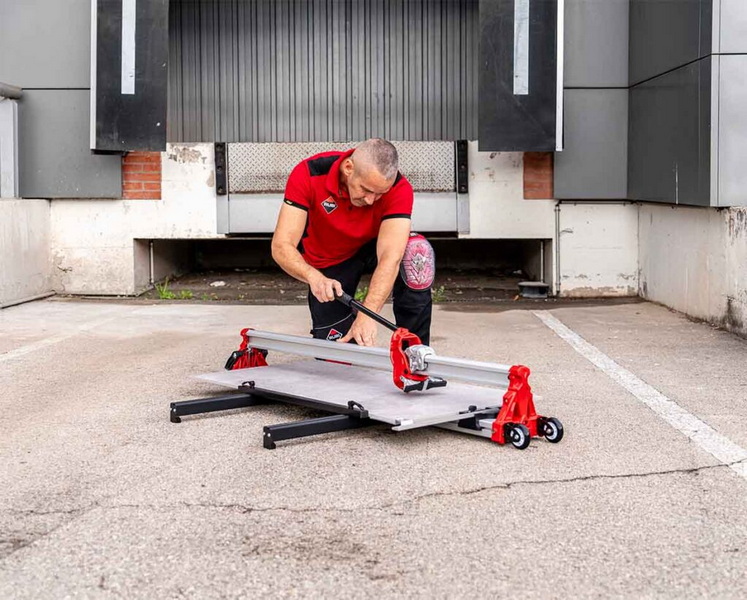

For smaller slabs or tiles, manual cutters use a score-and-snap technique. While not suitable for large-format slabs, they are efficient for quick, straight cuts on-site.
Bridge saws are heavy-duty machines designed for straight, precision cuts on large porcelain slabs. They support the slab fully during cutting, reducing the risk of breakage and ensuring accuracy.
Plunge saws allow for interior cutouts (e.g., sinks, outlets) by starting the cut in the middle of the slab, often after drilling corner holes.
Adjustable suction frames and pressure-gauge suction cups are vital for safely lifting and moving large, brittle slabs. They prevent flexing, which can cause cracks, and ensure secure handling.
For moving multiple slabs or particularly heavy pieces, gantry cranes with canvas slings and A-frame trolleys provide stability and prevent surface damage.
Panel handlers with aluminum rails and suction cups distribute weight evenly and allow for safe, controlled movement of large panels, especially during installation.
Diamond-tipped drill bits are essential for creating holes in porcelain without cracking. They are used for sink and fixture cutouts, often in combination with water cooling to prevent overheating.
Edge profiling machines and beveling tools (often using diamond abrasives) are used to shape and smooth slab edges, creating custom profiles or miters for seamless joints.
Diamond polishing pads (ranging from coarse to fine grit) are used to achieve a high-gloss, smooth finish on cut edges and surfaces, essential for countertops and decorative applications.
Notched trowels are used to apply adhesive evenly to both the substrate and the back of the slab, ensuring a strong, uniform bond.

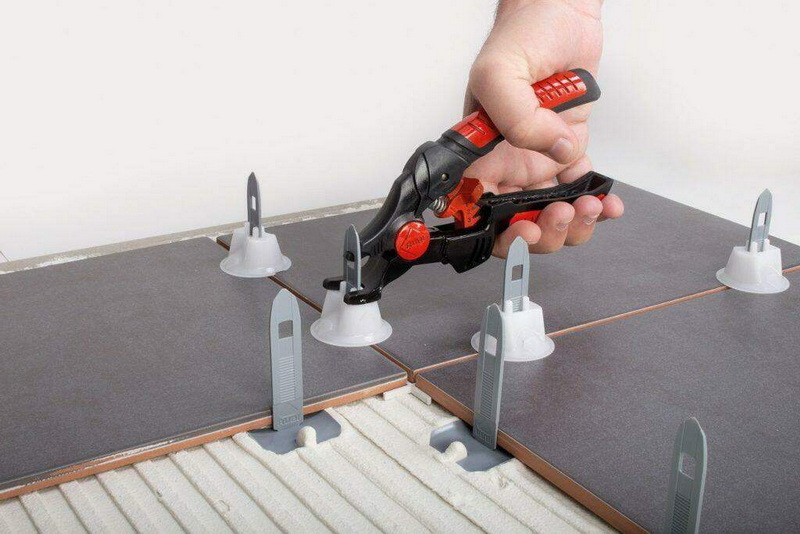

Leveling spacers and wedges maintain consistent gaps and flatness between slabs, critical for large-format installations where even slight misalignments can be visually disruptive.
Rubber mallets and tile beaters help settle slabs into adhesive beds, removing air pockets and ensuring full contact.
CNC routers and CNC sawjets automate complex cutting, shaping, and engraving tasks. They offer unmatched precision for intricate designs, custom patterns, and repetitive production work.
Waterjet cutters use high-pressure water mixed with abrasive particles to cut through porcelain with minimal risk of chipping or cracking. They excel at producing complex shapes and detailed inlays.
Modern bridge saws often feature programmable controls for repeatable, high-precision cuts, essential for large-scale fabrication shops.
Vibration tile beaters, anti-friction plates, and diamond hand pads are used for fine finishing, edge smoothing, and ensuring a uniform surface appearance.
Inspect slabs for defects or cracks before cutting. Clean the surface thoroughly to remove dust and debris.
Mark cut lines with grease pencils or chalk. Secure the slab on a vibration-dampened, flat worktable using suction clamps or frames.
For straight cuts, use a wet saw or bridge saw with a diamond blade. For curved or intricate cuts, use an angle grinder or CNC router. For interior cutouts, drill corner holes with diamond bits, then connect with a saw or grinder.
Use edge profilers or angle grinders with diamond cup wheels to shape and smooth edges. Progress through polishing pads from coarse to fine grit for a mirror-like finish.
Use suction frames, panel handlers, or gantry cranes to move slabs safely. Apply adhesive with a notched trowel, position the slab, and level with spacers and mallets. Allow adhesive to cure, then grout and clean the surface.
Always wear safety glasses, gloves, dust masks, and hearing protection when operating power tools. Ensure proper ventilation or use dust extraction systems. Regularly inspect and maintain blades, bits, and machines for optimal performance and safety.
The porcelain slab fabrication industry continues to evolve with innovations that improve efficiency, precision, and sustainability. Recent trends include the integration of automation, eco-friendly materials, and digital technologies.
Robotic arms and automated handling systems are increasingly used to reduce manual labor and minimize the risk of damage during slab transport and installation. These systems can precisely position slabs, improving safety and reducing installation time.
Manufacturers and fabricators are adopting greener practices by using water recycling systems in wet saws and waterjet cutters, reducing dust emissions with advanced extraction systems, and selecting adhesives with low volatile organic compounds (VOCs).
The use of CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software allows for precise digital modeling of slabs and custom designs. This integration with CNC machines and waterjet cutters enables fabricators to produce complex patterns and inlays with high accuracy.
Proper maintenance extends the life and appearance of porcelain slabs. Professionals recommend regular cleaning with pH-neutral cleaners, avoiding abrasive tools that can scratch the surface, and promptly addressing any chips or cracks with professional repair kits.
Cracking often results from improper handling or using the wrong cutting tools. To prevent this, always use diamond blades with water cooling and support the slab fully during cutting.
Uneven edges can occur if the slab is not secured properly or if the cutting blade is worn. Regular blade maintenance and using clamps or suction frames can help maintain edge quality.
Adhesive failures may be due to incorrect adhesive choice or improper application. Using recommended adhesives and following manufacturer instructions ensures a strong bond.
| Tool Category | Purpose | Key Features |
|---|---|---|
| Wet Tile Saws | Cutting straight lines | Diamond blades, water cooling |
| Angle Grinders | Curved cuts, edge finishing | Diamond cup wheels, portable |
| CNC Machines | Automated cutting and shaping | High precision, programmable |
| Waterjet Cutters | Complex shapes, minimal chipping | High-pressure water, abrasive mix |
| Suction Cups & Frames | Safe handling and transport | Adjustable, pressure gauges |
| Diamond Drill Bits | Drilling holes without cracking | Water cooling, diamond tips |
| Edge Profilers | Shaping and smoothing edges | Diamond abrasives, various profiles |
| Polishing Pads | Achieving smooth, glossy finishes | Multiple grit levels, diamond pads |
- Caesarstone Porcelain Fabrication & Installation Guide
- How to Handle & Move Porcelain Slabs, With the Rubi Slab System
Professional porcelain slab fabrication is a blend of art and engineering, requiring a suite of specialized tools and meticulous techniques. From diamond-bladed wet saws and CNC routers to advanced handling systems and polishing pads, each tool plays a vital role in transforming dense, brittle slabs into stunning architectural features. By investing in the right porcelain slab fabrication tools and adhering to industry best practices, fabricators can achieve flawless results, minimize material waste, and ensure the long-term durability and beauty of every installation.
Diamond-embedded blades specifically designed for porcelain are essential. Continuous rim blades offer smoother cuts, while segmented blades provide more aggressive cutting. Always use blades rated for wet cutting to reduce heat and prevent chipping.
Use a wet saw with a diamond blade, maintain a steady feed rate, and ensure water cooling at the cutting site. For intricate cuts, make shallow initial passes and increase depth gradually. Always support the slab fully to minimize vibration.
An angle grinder with a diamond blade is ideal for curved cuts and on-site adjustments. For highly complex shapes or patterns, CNC routers and waterjet cutters deliver unmatched precision and flexibility.
Use adjustable suction frames, pressure-gauge suction cups, and panel handlers to prevent flexing and breakage. For multi-slab transport, gantry cranes with canvas slings are recommended. Always have enough personnel to support the slab's weight and size.
Wear safety glasses, gloves, dust masks, and hearing protection. Use dust extraction systems or water cooling to control airborne particles. Always follow manufacturer guidelines for tool operation and maintenance.
