Installing porcelain slabs is a transformative way to upgrade floors, patios, or walls—but achieving a flawless, lippage-free finish is notoriously challenging, especially for DIYers. The right porcelain slab leveling system can make the difference between a professional-looking result and a frustrating, uneven surface. In this comprehensive guide, we'll explore the top leveling systems, compare their features, offer step-by-step usage tips, and help you choose the best option for your next project.
Porcelain slabs are prized for their beauty, durability, and versatility. However, their large size and rigidity make them unforgiving—any unevenness or "lippage" between tiles is immediately noticeable and can even be a tripping hazard. Traditional spacers alone often aren't enough to keep heavy porcelain slabs perfectly level during installation.
A porcelain slab leveling system is designed to eliminate these issues by holding tiles in place while the adhesive cures, ensuring a flat, even surface across the entire installation[9][13]. For DIYers, these systems are invaluable, turning a daunting task into a manageable (and even enjoyable) project.
A typical porcelain slab leveling system consists of three main components:
- Clips or Bases: Placed under the edges of tiles, these act as spacers and anchors.
- Wedges or Caps: Inserted into the clips, they apply pressure to pull tiles level with each other.
- Tightening Tool (optional): Some systems use pliers or a screw mechanism for added force and precision[3][9].
Key Benefits:
- Virtually eliminates lippage.
- Maintains consistent grout lines.
- Simplifies installation of large-format tiles.
- Reduces installation time and stress[9][13].
There are several styles of leveling systems, each with unique features. The most common types include:
| System Type | How It Works | Pros | Cons |
|---|---|---|---|
| Wedge & Clip | Clip under tile, wedge forced in to level tiles | Simple, affordable, widely available | Requires pliers, single-use clips |
| Spin/Rotating Cap | Threaded cap screws onto post to level tiles | Tool-free, reusable caps, easy to adjust | Slightly higher upfront cost |
| Screw Cap | Cap screws down on threaded clip | High precision, adjustable tension | May require pliers, more parts |
| Seam Clips | Clip snaps into joint, locks tiles in place | Fast, no tools needed | Less precise, best for smaller tiles |
| Strap/Vertical | Strap under tile, cap tensions vertically | Excellent for very large tiles | Learning curve, more expensive |
- How It Works: Uses a rotating cap that spins onto a post, applying even pressure to level tiles.
- Why DIYers Love It: Tool-free, easy to use, reusable caps, and excellent for large-format porcelain slabs.
- User Feedback: Highly rated for simplicity and effectiveness, especially for beginners[1][3][13].
How to Use Tile Leveling System
- How It Works: Tool-free system with a threaded cap that tightens by hand. Suitable for tiles 14-26mm thick.
- Why DIYers Love It: Ergonomic, reusable caps, fast installation, and ideal for 20mm porcelain slabs[18].
- Starter Kit: Includes reusable caps, clips, and spacers for various grout widths.
How to Tile Perfectly Level Every Time
- How It Works: Screw cap and threaded clip tightened by hand. No tools required.
- Why DIYers Love It: Ergonomic, reusable caps, suitable for tiles 3-30mm thick, available in multiple joint widths[2].
- User Feedback: Easy for first-timers, but some pros feel the cap design could be stronger for heavier tiles.
How to Use a Levelling System When Laying Floor Tiles

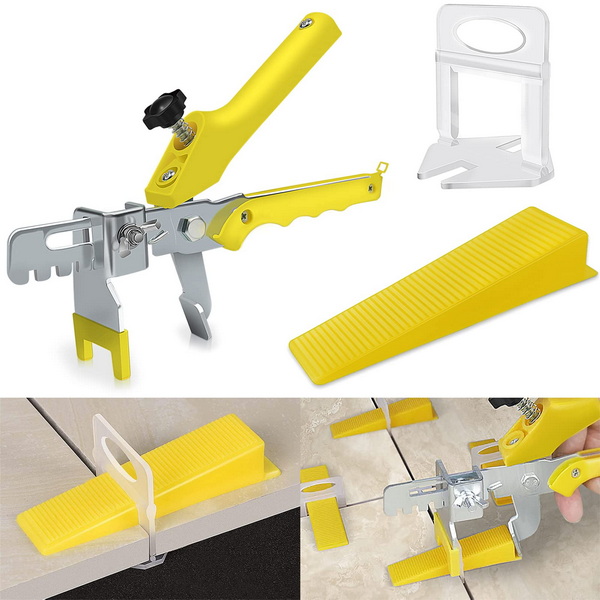

- How It Works: Classic wedge and clip system, requires pliers to tighten wedges.
- Why DIYers Love It: Affordable, widely available, good for medium-sized projects.
- User Feedback: Reliable but clips are single-use; wedges and pliers are reusable[16].
- How It Works: Threaded cap and spacer post, reusable caps, available in various sizes.
- Why DIYers Love It: Quick setup, reusable parts, suitable for tiles up to 35mm thick[8].
Prepare the Surface
- Ensure the substrate is flat, clean, and properly prepared. Leveling systems do not fix uneven subfloors[16][18].
Apply Adhesive
- Use a notched trowel appropriate for your tile size. For large porcelain slabs, a 3/8" or larger trowel is recommended[12][17].
Place the Clips or Posts
- Slide clips or posts under the tile edges, 2-3 inches from each corner. For large tiles, use 3 clips per side[7][9].
Lay the Next Tile
- Set the adjacent tile snugly against the clip or post.
Tighten Wedges or Caps
- For wedge systems, insert wedges and use pliers to gently tighten until tiles are flush.
- For spin/rotating cap systems, screw the cap down by hand until tiles are level[3][13].
Check for Lippage
- Use a spirit level or straightedge to confirm the surface is flat.
Checking level Cure
- Allow the adhesive to set for at least 24 hours or as recommended by the manufacturer[7].
Remove Clips and Wedges/Caps
- For wedge systems, use a rubber mallet to knock clips parallel to the grout line.
- For spin/cap systems, unscrew the cap and snap off the post[2][8].
- Use Enough Clips: Large-format tiles require more clips to prevent lippage—don't skimp[7][12].
- Clean Joints: Remove excess adhesive from joints before it dries to ensure easy removal of clips and a clean grout line[12].
- Don't Overtighten: Apply firm but gentle pressure—overtightening can break clips or crack tiles[1][6].
- Practice First: Try the system on a few dry tiles to get a feel for the tension and placement[6].
- Combine with Traditional Spacers: For wider grout lines, use traditional spacers alongside leveling clips[11].
- Uneven Subfloor: Leveling systems can't fix a wavy substrate. Always prep your floor first[16][18].
- Wrong Clip Size: Use clips thinner than your grout line for easier removal and to prevent breakage[11].
- Not Enough Mortar: Use a larger trowel and back-butter large tiles for full coverage[12][17].
- Leaving Clips in Too Long: Remove clips and caps as soon as the adhesive sets to avoid them getting stuck[11].
For DIYers, the best porcelain slab leveling system balances ease of use, reliability, and affordability. Spin/rotating cap systems like the Spin Doctor and Raimondi VITE stand out for their tool-free operation, reusable parts, and consistent results. Classic wedge and clip systems like LASH are budget-friendly and effective, though they require pliers and a bit more practice.
No matter which system you choose, following best practices—proper surface prep, correct clip placement, and careful tightening—will ensure your porcelain slab installation looks and performs like a pro did it.
A porcelain slab leveling system virtually eliminates lippage between tiles, maintains even grout lines, and makes installing large-format porcelain slabs much easier for DIYers[9][13].
Most systems have reusable caps or wedges, but the clips or spacer bases are typically single-use and must be replaced for each project[2][8][18].
No. Leveling systems only keep tiles flush with each other—they do not correct an uneven subfloor. Always level your substrate before tiling[16][18].
Spin/rotating cap systems like Spin Doctor or Raimondi VITE are highly recommended for beginners due to their tool-free, intuitive operation and reusable parts[1][3][13][18].
For large-format slabs, use at least three clips per side to ensure even pressure and prevent lippage. More may be needed for very large tiles or uneven substrates[7][12].
